Name: Miniature Quick Open Electric Actuator 20nm 2000nm Quick Switch Electric Actuator
Brand: GRAT
Price: 1 USD

Home > Organic Produce >

Miniature Quick Open Electric Actuator 20nm - 2000nm Quick Switch Electric Actuator

Categories	Quick Open Electric Actuator
Brand Name:	GRAT
Model Number:	EA-00003
Certification:	CCC, ISO, CE
Place of Origin:	Wuhan, Hubei, China
MOQ:	1 pc
Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Supply Ability:	1000PCS/Month
Delivery Time:	3 working days
Packaging Details:	Carton
Price:	To Be Negotiated
Certifications:	CCC/ISO/CE/CNAS
Torque:	20~2000nm
Implementation Standards:	Jb/T-8219-1999
Power Supply:	AC220V
Power Source:	Electric Power
Temperature:	Low Temperature
Connection:	Flange
Material:	Stainless Steel

Contact Now

Add to Cart

Company Info.

Wuhan Grat Control Valve Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

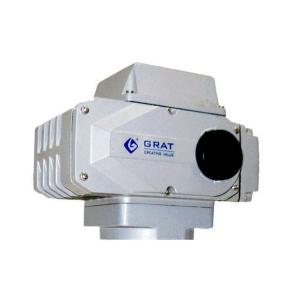

Miniature Quick Open Electric Actuator 20nm - 2000nm Quick Switch Electric Actuator

Ea Series Quick Switch Electric Actuator

Product Description:

Ea Series Quick Switch Electric Actuator/ Quick Switch

Description:

With whole stroke 0-90° to realize fully open &open single action in 4S, EA series quick switch electric actuator is satisfied with quick switch requirement of ball valve, butterfly valve, and other segmental electric quick switch valve.
This actuator is suited to high pressure, large pressure drops, and the quick switch services that solenoid valve is not available, which is matched with ball valve, V type control valve, butterfly valve, ventilation valve, damper, fan, dynamic balancing valve, plug valve, gyrating valve, and mechanical positioning rotation system in other industrial area.

Features:

* GRAT new technology patent for Potentiometer Positioning Device(PPD)
* The new technology for Direct Debugging Switch(DDS) in electric actuators
* Quick switch
* 100000 times life
* Miniature design
* Good seal performance
* Good reliability
* Good pressure resistance performance

Specification:

Torque	20~2000NM
Power supply	AC220V(Custom powers are available.)
Control signal	switch energy
Action time	4S
Action angle	0~90°(180° is the maximum gyration angle
Modulation accuracy	≤0.3%
Dead zone	≤0.2%
Connection	Bracket and shaft sleeve fix actuator
Protection level	IP67
Ambient Temp	≤60ºC
Implementation standards	JB/T-8219-1999

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
