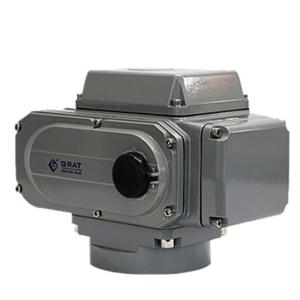

Ordinary Temperature Quick Open Electric Actuator AC380V Flange Connection For Boats

Ordinary Temperature Quick Open Electric Actuator AC380V Flange Connection For Boats

Ordinary Temperature Quick Open Electric Actuator AC380V Flange Connection For Boats
Ordinary Temperature Quick Open Electric Actuator AC380V Flange Connection For Boats
Categories Quick Open Electric Actuator
Brand Name: GRAT
Model Number: EA-0001
Certification: IP68,CCC, ISO, CE
Place of Origin: Wuhan, Hubei, China
MOQ: 1 pc
Price: USD $100.00/ Piece
Payment Terms: LC, T/T, D/P, PayPal, Western Union
Supply Ability: 10000PCS/Month
Delivery Time: 3 working days
Packaging Details: Carton
Certifications: CCC/ISO/CE/CNAS
Power Supply: AC380V
Power Source: Electric Power
Temperature: Ordinary Temperature
Connection: Flange
Material: Alloy
Control Signal: 4~20mA
Action Angle: 0 - 180 Degree
Dead Zone: Less Than 0.2%
Torque: 20~2000nm
Type: on/off, Regulating
Action Time: 4 Second
Modulation Accuracy: Less Than 0.3%
Implementation Standards: Jb/T-8219-1999
HS Code: 8537109090
Contact Now
Company Info.
Wuhan Grat Control Valve Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Ordinary Temperature Quick Open Electric Actuator AC380V Flange Connection For Boats

Ordinary Temperature 4 Second Quick Switch Electric Actuators Application in Boats​
Product Description:
4 Second Quick Switch Electric Actuators Application in Boats/ Ordinary Temperature/Alloy
Description:
Hot Sale! 4 Second Quick Switch Electric Actuators Application in Boats Electric actuator has a easy and direct connection method with the stem of valve, and is easy assemble with various segmental valve(ball valve, butterfly valve.) to form industrial automatic control electric valve.
With whole stroke 0-90° to realize fully open &open single action in 4S, EA series quick switch electric actuator is satisfied with quick switch requirement of ball valve, butterfly valve, and other segmental electric quick switch valve.

This actuator is suited to high pressure, large pressure drops, and the quick switch services that solenoid valve is not available, which is matched with ball valve, V type control valve, butterfly valve, ventilation valve, damper, fan, dynamic balancing valve, plug valve, gyrating valve, and mechanical positioning rotation system in other industrial area.
Features:
* GRAT new technology patent for Potentiometer Positioning Device(PPD)
* The new technology for Direct Debugging Switch(DDS) in electric actuators
* Quick switch
* 100000 times life
* Miniature design
* Good seal performance
* Good reliability
* Good pressure resistance performance
Specification:
Torque20~2000NM
Power supplyAC220V(Custom powers are available.)
Control signalswitch energy
Action time4S
Action angle0~90°(180° is the maximum gyration angle
Modulation accuracy≤0.3%
Dead zone≤0.2%
ConnectionBracket and shaft sleeve fix actuator
Protection levelIP67
Ambient Temp≤60ºC
Implementation standardsJB/T-8219-1999

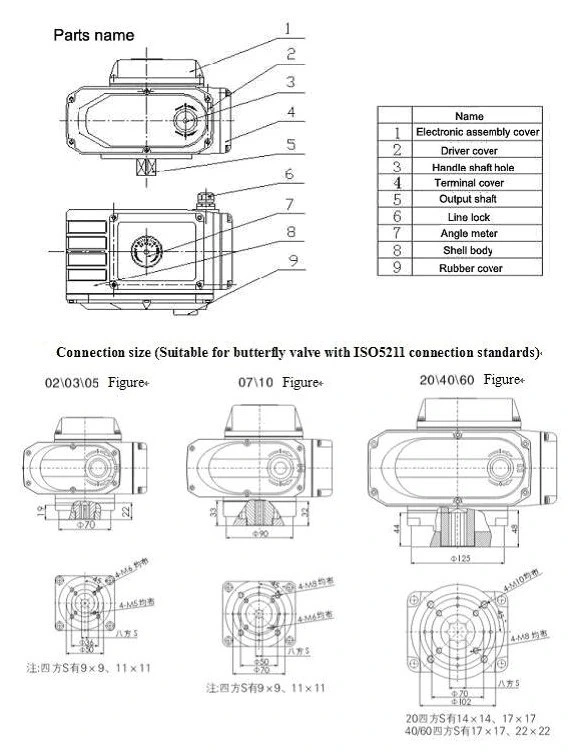

Installation Diagram

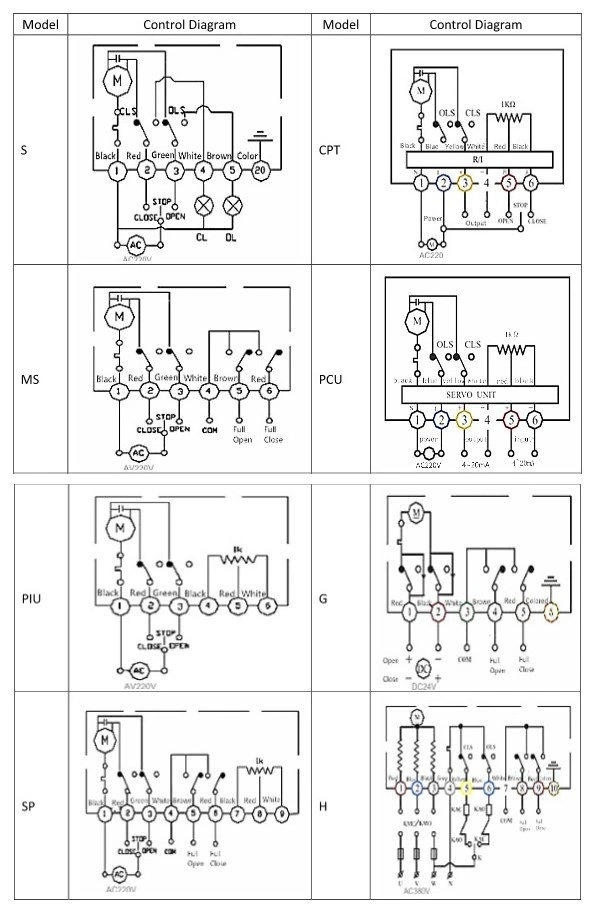

Hot Sale! 4 Second Quick Switch Electric Actuators Application in Boats Control Diagram


Hot Sale! 4 Second Quick Switch Electric Actuators Application in Boats


Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
