Two Stage Inline Small Cycloidal Gearbox Reducer BL, BLD, XL, XLD Type

Two-stage vertical reducer Cycloid Reducer

The Cycloid components operate in compression, not in shear. Unlike gear teeth with limited contact points, a Cycloid has two-thirds of its reduction components in contact at all times. This design enables Cycloid speed reducers and gearmotors to withstand shock loads exceeding 500% of their ratings, and provide exceptional performance, reliability and long life in the most severe applications.

Efficient, Compact

The Inline-vertical Cycloid Reducer design makes it a highly efficient, compact, torque transmitting reducer..

Parameters Table

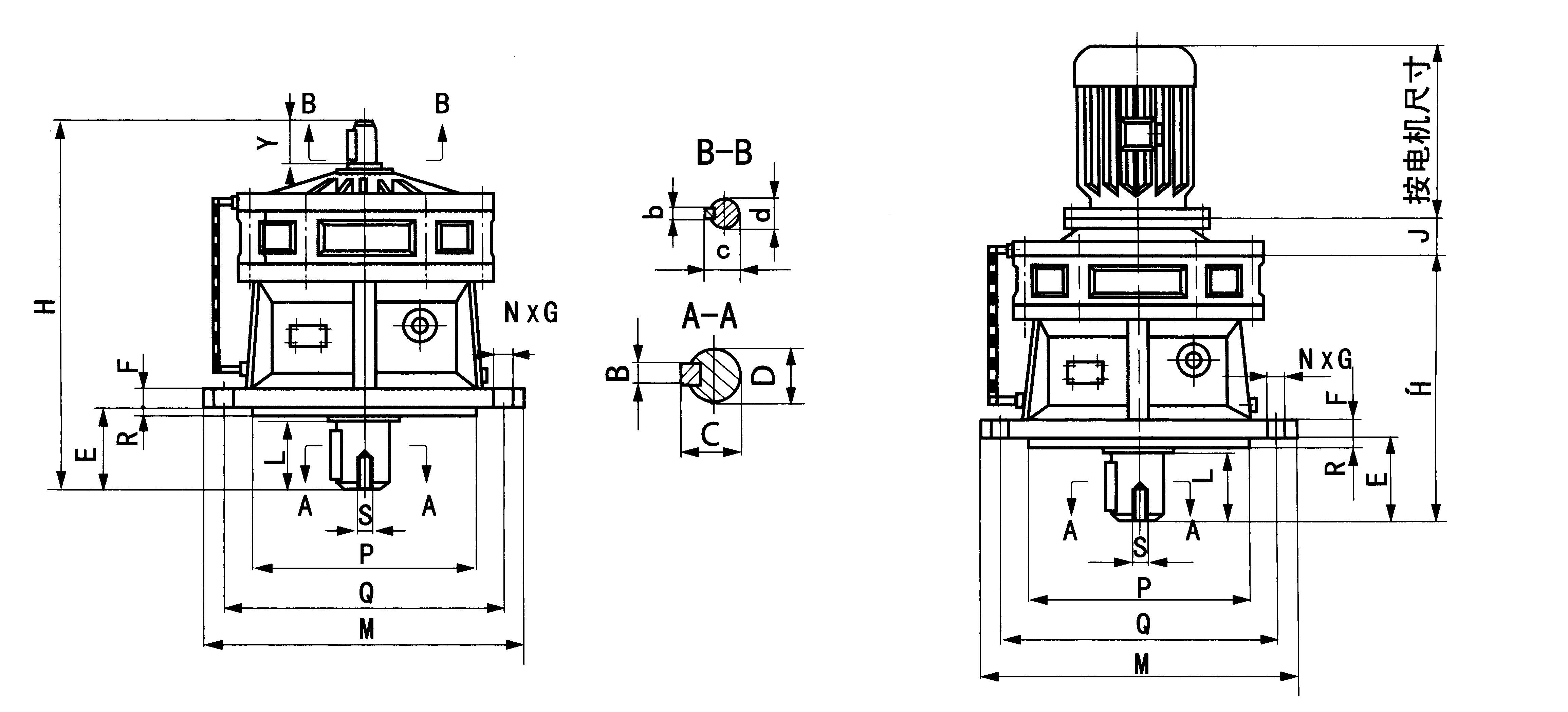

BL, BLD, XL, XLD type (single stage) outline and installation dimensions.

Figure 1-2 Appearance of single-stage vertical cycloid pinwheel planetary reducer

BL, BLD10—19No.
