Batch Hot Air Circulation Drying Oven With High Efficiency Uniform Heating

hot air circulation oven Product Description

The CT-C series hot air circulation drying oven is equipped with a low noise, high-temperature-resistant axial-flow fan and an automatic temperature control system. The entire circulation system is fully enclosed, thereby increasing the oven's thermal efficiency from the 3–7% typical of traditional drying rooms to the current range of 35–45%, with a maximum thermal efficiency reaching up to 50%. The successful design of the CT-C hot air circulation drying oven has elevated my country's hot air circulation drying technology to an advanced level comparable to both domestic and international standards.It has conserved a significant amount of energy for the country and enhanced the economic efficiency of enterprises. In 1990, the National Pharmaceutical Administration issued an industry standard, designating the unified model number as RXH.

hot air circulation oven Applicable Materials

Suitable for the heating, curing, drying, and dehydration of materials and products across various industries, including chemicals, food, agricultural and sideline products, aquatic products, light industry, and heavy industry. Examples include APIs (Active Pharmaceutical Ingredients), crude drugs, prepared Traditional Chinese Medicine (TCM) pieces, extracts, powders, granules, instant granules, water-pill formulations, packaging bottles, pigments and dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electronic components, and baked paints.

hot air circulation oven Performance Features

Most of the hot air circulates within the drying chamber, ensuring high thermal efficiency and energy conservation. Utilizing forced ventilation, the chamber is equipped with adjustable air distribution plates to ensure uniform drying of materials. A wide range of heat sources—including steam, hot water, electricity, and far-infrared radiation—are available for selection. The unit operates with low noise and runs smoothly and stably. It features automatic temperature control and is designed for easy installation and maintenance. With its broad scope of application, it is capable of drying a wide variety of materials, making it a versatile piece of general-purpose drying equipment.
◎ Available heat sources include steam, electricity, far-infrared radiation, and a dual-purpose electric/steam configuration, offering users a wide range of choices;
◎ Operating temperature range: 50–140°C for steam heating (with a maximum limit of 150°C);
◎ Operating temperature range: 50–350°C for electric or far-infrared heating;
◎ Equipped with options for either a standard automatic control system or an advanced computer control system, available for user selection;
◎ Standard steam pressure range: 0.02–0.8 MPa (0.2–8 kg/cm²);
◎ For electric heating configurations (calculated based on the Type I model): Rated power is 15 kW, with an actual power consumption of 5–8 kW/h;
◎ Any special requirements should be clearly specified at the time of order placement;
◎ Pricing for non-standard drying ovens is subject to negotiation;
◎ If the required operating temperature exceeds 140°C or falls below 60°C, this must be explicitly noted when placing the order;
◎ All drying carts and trays manufactured by our factory feature standardized dimensions and are fully interchangeable;
◎ Drying tray dimensions: 460 × 640 × 45 (mm).

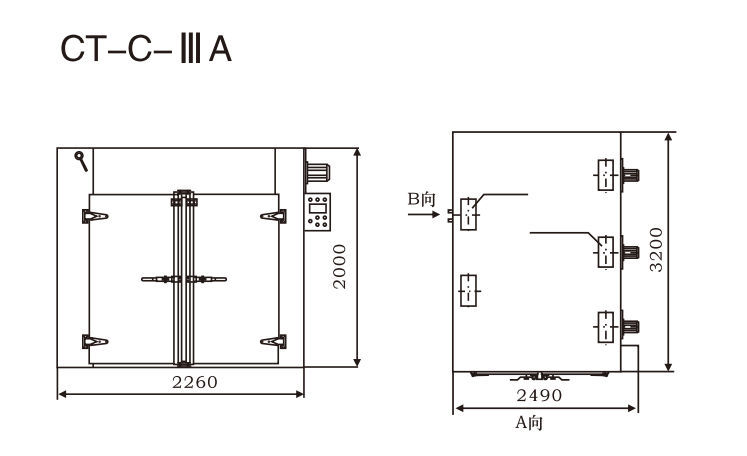

Hot Air Circulation Oven Technical Specifications
