17.3" Fanless Zero Bezel Touch PC for Smart Factories | PCAP Multi-Touch | 24/7 Reliability

Product Overview

This industrial-grade 17.3" fanless panel PC features a true flat, zero-bezel front design with advanced 10-point PCAP multi-touch technology, making it ideal for HMI/SCADA applications and continuous 24/7 operation.

Key Features

True Flat, Zero-Bezel Front Design - Easy-to-clean seamless surface eliminates dust and debris accumulation around edges and corners, ensuring hygienic and low-maintenance operation
Front Panel IP65 / NEMA 4 Protection – Robust sealed front design protects against water, dust, and harsh environmental conditions
Rugged Aluminum Frame & Steel Rear Housing – Precision aluminum framing provides structural reinforcement along the edges, while the robust steel rear housing ensures excellent strength, heat dissipation, and long-lasting reliability in demanding industrial environment
Flexible Customization Options – Supports various configurations including CPU platforms, interfaces, brightness levels, and mounting solutions to meet specific project requirements

Optional Features

DC 24V, DC9-36V, AC100-240V, PoE
High Brightness, Optical Bonding
Anti-glare, Anti-reflective, Anti-finger, Anti-UV
WIFI, 4G/5G, Bluetooth, GPS

Web Camera, Speakers, RFID, NFC, Fingerprint, QR Reader, Thermal Printer, etc.
VESA Mount, Desktop Stand

Display Specifications

DISPLAY

Panel	Cell Type/Glass Surface	TFT
	Size/ Aspect Ratio	17.3”/16:9
	Active Area/ Pixel Pitch	381.888(H) ×214.812(V)mm/0.1989 × 0.1989mm
	Native Resolution/ Colors	1920×1080/16.7M
	Brightness/ Contrast	300cd/㎡(500~1000 cd/㎡optional)/900:1
	Response Time/ Viewing Angle (Typical)	30ms/85/85/85/85
	Light Source	LED Backlight with 30000Hours’Lifetime

SYSTEM

Item	ARM Solution	X86 Solution 1	X86 Solution 2
CPU	ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588/RK3576 optional)	Intel® Celeron J1900/J6412 2.0GHz	Intel® Core i3/i5/i7 (4^th~12^th Generation or newer optional)
Chipset	Rockchip	Intel Bay Trail SoC	Intel SoC Chipset
Memory	2GB; 4GB/8GB Optional	Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)	2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.); DDR5 (optional≥12^th gen.)
Storage	8GB; 16GB/32GB/64GB/128G Optional	1×mSATA/1×SATA/1×M.2	1×mSATA/1×SATA/1×M.2
Graphics	Supports max. 4K resolution	Intel HD/UHD Graphics (By CPU)	Intel HD/UHD Graphics (By CPU)

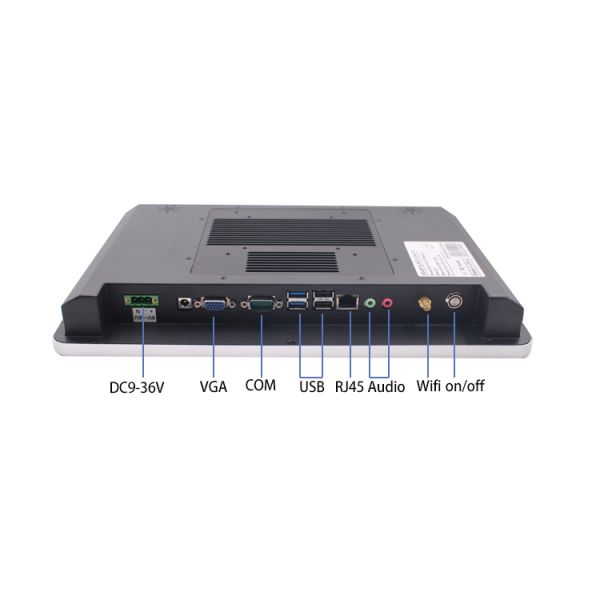

I/O	1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB	1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662 Line-Out /MIC IN	1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN
LAN	1×10/100/1000Mbps Ethernet	1× 10/100/1000Mbps Ethernet (Dual LAN optional)	1×10/100/1000Mbps Ethernet (Dual LAN optional)
OS	Android 7.1/11/12/13/14, or newer etc. Linux Ubuntu(optional)	Win7/10, Linux Win 11(available for J6412)	Win 7/10, Linux Win 11(available for 8^th Gen. or Newer)

GENERAL

Power	Input Voltage	DC 12V 2.0
	Operation/Power Saving	10~25W
Environment Considerations	Operating Temperature	-10~60℃(-20~70℃optional)
	Storage Temperature	-20~70℃
	Relative Humidity	10%~90%(non-condensing)
Order Information	13.3” Fanless Zero Bezel Panel PC with PCAP Touch Android OS/ITD13PPCT5KEx
	13.3” Fanless Zero Bezel Panel PC with PCAP Touch J1900/ITD13PPCT5KJ1
	13.3” Fanless Zero Bezel Panel PC with PCAP Touch J6412/ITD13PPCT5KJ6
	13.3” Fanless Zero Bezel Panel PC with PCAP Touch i3/ITD13PPCT5KI3
	13.3” Fanless Zero Bezel Panel PC with PCAP Touch i5/ITD13PPCT5KI5
	13.3” Fanless Zero Bezel Panel PC with PCAP Touch i7/ITD13PPCT5KI7
	13.3” Fanless Zero Bezel Panel PC with Tempered Glass No Touch /ITD13PPCG1Kxx
	13.3” 1000nits Fanless Zero Bezel Panel PC with PCAP Touch/ITD13PPCT5HBKxx
	13.3” 1000nits Fanless Zero Bezel Panel PC with Tempered Glass No Touch /ITD13PPCG1HBKxx

Product Images

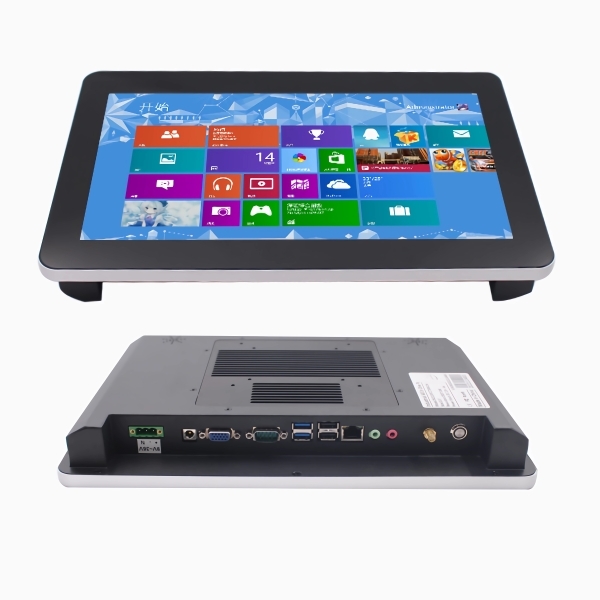

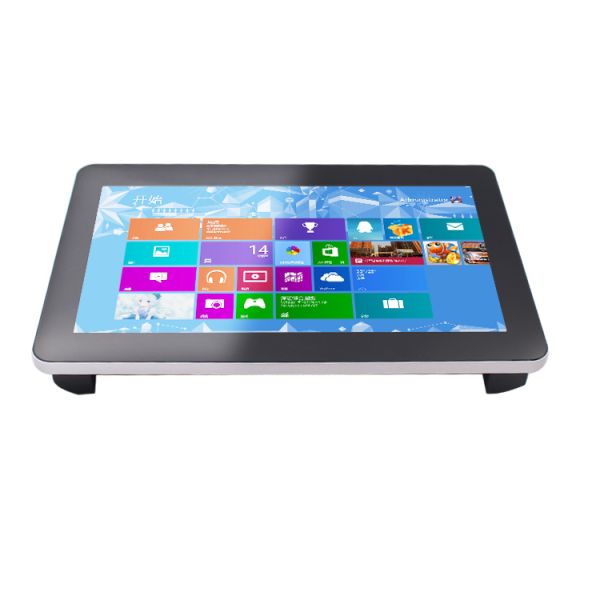

10.1 inch industrial touch panel PC in industrial environment

Product Tags:

17.3 inch fanless touch panel PC

PCAP multi-touch industrial PC

24/7 reliable zero bezel PC

17.3" Fanless Zero Bezel Touch PC for Smart Factories | PCAP Multi-Touch | 24/7 Reliability

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen ITD Display Equipment Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Touch Panel PC
Brand Name:	ITD/OEM
Model Number:	ITD13PPCT5K*
Certification:	CE, FCC, RoHS
Place of Origin:	China
MOQ:	1PCS
Price:	TBA
Payment Terms:	T/T,PayPal(173515844@qq.com)
Supply Ability:	10000PCS/Month
Delivery Time:	7-10 Business Days
Packaging Details:	1-5pcs/CTN, Safe, Firm, suitable for international shipping
Power supply:	DC12V,DC 24V, DC9-36V, AC100-240V, PoE
Brightness:	350cd/㎡(500~1000cd/㎡Optional)
Operating Temperature:	-10~60℃(-20~70℃optional)
Android processor:	RK3288/RK3399/RK3568/RK3588/RK3576 optional
size:	17.3"
Native resoltuion:	1920*1080
OS:	Android,Win7/10/11, Linux
