27U Wall-Mounted Network Rack Cabinet with Plexiglass Door and IP20 Protection

27U Wall-Mounted Network Rack Cabinet with Plexiglass Door and IP20 Protection
TC 27U Wall-Mounted Cabinet Black (RAL9005) IP20 Front Plexiglass door
Cabinet, AB-21-66-27C 27U×600×600mm, Black (RAL9005), Steel
Product Overview
Features
Designed for IT equipment including servers, switches, and networking devices.
Working Environments
  • Working Temperature: -25℃ to +55℃
  • Storage Temperature: -25℃ to +55℃
  • Relative Humidity: ≤85% (+30℃)
  • Atmospheric Pressure: 70-106Kpa
Mechanical Specifications
ItemSpecification
Dimension H×W×D(mm)27U×600×600mm
19" Square Hole Mounting RailsCompatible with IEC 60297-3-100 & ANSI/EIA/ECA-310-E
Installation MethodWall-mounted
Mounting Space27U
Static Load Bearing Capacity≥ 100kg
Ventilation MethodLouvered side panel and top active ventilation
MaterialSteel
Front DoorPlexiglass door
Coat and ColorPowder coat, Black (RAL9005)
Cable Access ProvisionTop and bottom
Protection ClassIP20
Technical Details

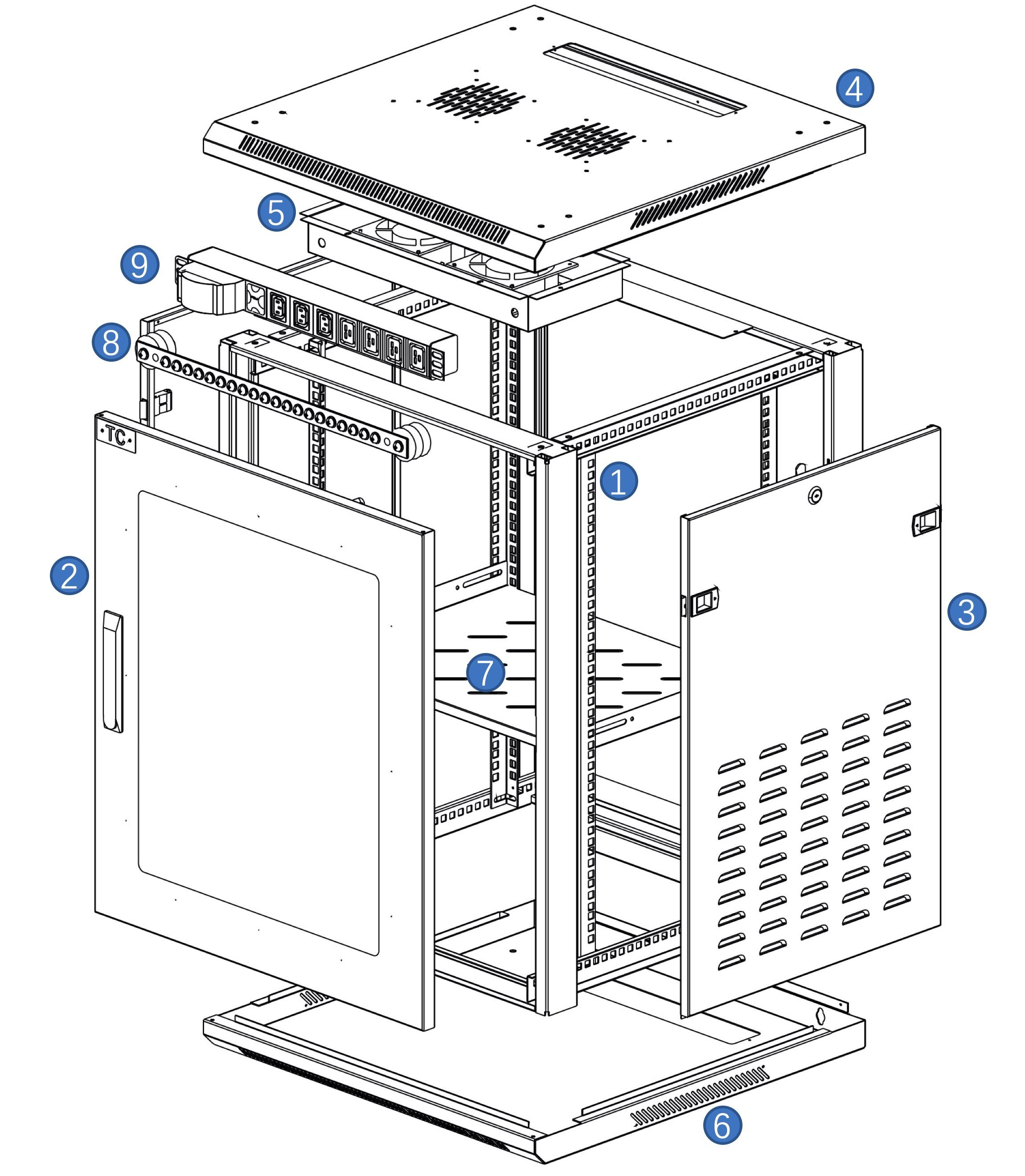

Structure Drawing
27U Wall-Mounted Network Rack Cabinet Structure Diagram
Components List
NO.NameUnitQty.Notes
1Framepcs127U(H)×600(W)×600(D)mm; Steel
2Front Plexiglass doorpcs1Lockable plexiglass door with swing handle with lock
3Side Panelpcs2Louvered, include keyed pushbutton latches
4Top Panelpcs1Vented
5Fanpcs2Top-panel mounted
6Bottom Panelpcs1
7Adjustable Shelfpcs1Load capacity is 30kg
8Grounding Bus Barpcs1
9PDUpcs2PDU-20A-6G-M-P
27U Wall-Mounted Network Rack Cabinet Reference Image
Mechanical Properties
  • Doors and side panels are detachable; door rotates flexibly and locks reliably with opening angle ≥ 110°
  • Smooth coating surface with even color, no sagging or exposed base; metal parts free of burrs and rust
  • Four adjustable mounting rails for equipment installation and shelf securing
  • Mounting rails marked with rack unit positions for precise equipment placement
  • Adjustable shelf with load capacity ≥ 30kg, fully ventilated design
  • Cable access provisions at top and bottom panels

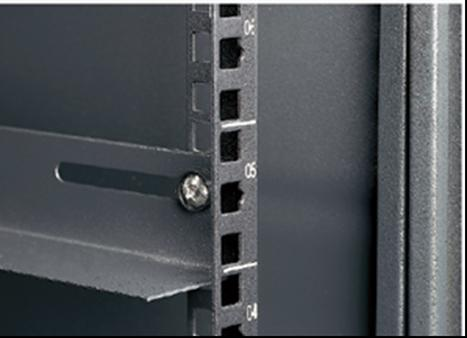

Mounting Rail Position Marks Adjustable Shelf Configuration
Grounding Properties
  • Secure grounding connection between cabinet door and frame with 1.5mm² ground wire
  • Mounting rails, top panel, side panels and doors electrically bonded to cabinet frame
  • Grounding bus bar provided on cabinet frame
Ingress Protection Rating
Under normal operating conditions, the cabinet provides IP20 protection rating.
Fan Assembly Specifications
ItemSpecification/Condition
Part No.TXA 38S 120B2H
Outline Dimension120mm×120mm×38mm
Rated VoltageAC 220V
Label Parameters230V/0.12A/20W
Voltage RangeAC 200V-240V
Frequency50/60Hz
Rated Current0.14A±0.02A (25℃ 60-80%RH)
Power Consumption21W±10% (25℃ 60-80%RH)
Speed2500RPM±10% (25℃ 60-80%RH)
Max. Air Flow100CFM±10% (25℃ 60-80%RH Rated Current)
Max. Static Pressure6.1ImmH20
Noise Level42dB(A)
Fan Assembly Diagram
Package, Shipping and Storage
Package
  • Multiple carton packings with on-site assembly
  • Package includes product accessories, product certificate, and package list
  • Documents packed in plastic or paper bags
Shipping
Packaging suitable for all transport methods while avoiding collisions, falls, direct rain, snow, and sun exposure.
Storage
Store in well-ventilated, dry warehouses free from corrosive gases. Storage temperature: -25℃ to 55℃.
