Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission

Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission

Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission
Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission
Categories HDMI Fiber Extender
Brand Name: Bitvisus
Model Number: BIT-Ex-Fib-IP-4K-KVM
Certification: FCC/CE/RoHS
Place of Origin: Guangdong China
MOQ: 1
Price: USD155
Payment Terms: T/T,PayPal
Supply Ability: 1unit 3 days,10units 7 days
Delivery Time: 7 Days
Packaging Details: 37mm*24mm*11mm,1.5KG
Product Name: BIT-Ex-Fib-IP-4K-KVM
Supported Resolution: 4K30Hz is backward compatible with standard resolutions
Pixel Bandwidth: 297MHz
Color Space: Support RGB444; YUV color space
EDID Learning: Support
KVM: USB 2.0,keyboard and mouse,U disk,radar,infrared touch, printer,etc.
RS232: Two-way RS232 transparent transmission
CEC: Support
3D: Support
Warranty: 1 Year
Contact Now
Company Info.
Shenzhen Bitvisus Technology Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission

Bitvisus Zero-Delay 30KM 4K KVM Fiber IP Extender
Professional 1.4 USB 2.0 Multi-Device RS232 Transparent Transmission Metal Solution

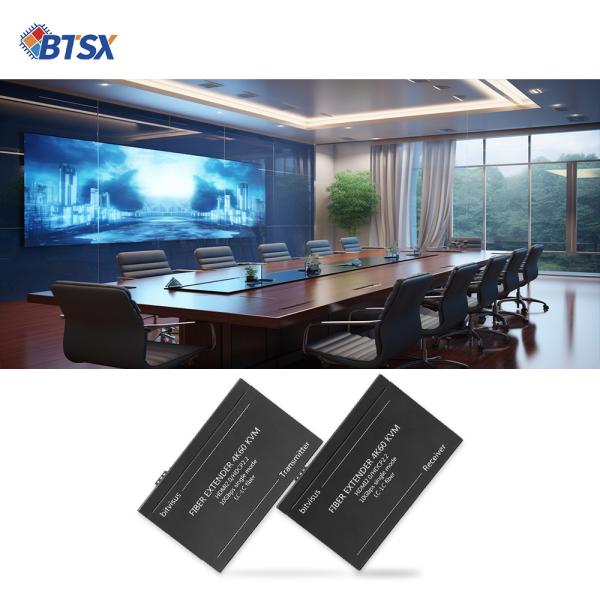

Bitvisus KVM Fiber IP Extender product overview
Product Overview
BIT-Ex-Fib-IP-4K-KVM is a zero-delay and uncompressed long-distance transmitter featuring industrial-grade design with robust internal protection and easy installation.
Key Features
  • Advanced video processing chip with powerful functions, high picture restoration, long transmission distance, and low power consumption
  • Fiber optic transmission up to 30 kilometers with HDMI interface input/output
  • Zero-delay transmission with no compression and no artifacts
  • Customizable conventional video resolutions with maximum supported resolution of 3840x2160@30Hz
  • Pure hardware design architecture - plug and play with no software drivers required
  • Two-way RS232 communication function
  • USB-KVM function with dual USB interfaces for mouse and keyboard connectivity
  • EDID learning capability for easy display compatibility
Technical Specifications
Input Transmitter (TX)HDMI1.4 (≤5m), IR, RS232 signal
Input Receiver (RX)LC-LC single-mode single-core fiber, 10KM
Output Transmitter (TX)LC-LC single-mode single-core fiber, 10KM
Output Receiver (RX)HDMI1.4 (≤5m), IR, RS232 signal
Output AudioHDMI audio out
Supported Resolution4K30Hz with backward compatibility for standard resolutions
Color SpaceSupport RGB444; YUV color space
Transmission Bandwidth1Gbps
Support FeaturesEDID, CEC, 3D, Remote wake up, OEM
KVM CompatibilityUSB 2.0, keyboard and mouse, U disk, radar, infrared touch, printer, etc.
RS232Two-way RS232 transparent transmission
Storage/Operating Temperature-10～50ºC / -25～55ºC
ApplicationHDMI, KVM, RS232 signal extension
Package Contents
Equipment × 2, Power supply × 2, Double-ended USB cable × 1, Single-mode single-core optical module × 2, Certificate × 1, Warranty card × 1
Warranty
1 year warranty included
Bitvisus product installation diagram Bitvisus product connectivity features Bitvisus product technical specifications Bitvisus product applications
Why Choose Bitvisus?
  • Own warehouse ensuring shipping within 48 hours after payment (weekends and holidays excluded)
  • OEM/ODM services available for custom requirements
  • Leading manufacturer in the industry with proven expertise
How to Order
  • Contact us via email, TM, WhatsApp, or Skype with your order requirements
  • We will provide a proforma invoice based on your request
  • After payment confirmation, goods will be delivered promptly
Warranty & After-Sale Service
  • 12 months warranty with lifetime service support
  • Return or exchange available for faulty, damaged, or incorrect models
Shipment & Payment
Payment Methods: T/T, Visa, PayPal, Western Union, L/C
Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
