UP-6114 Low Pressure High Altitude Simulation Chamber , Environmental Climatic Test Chamber

UP-6114 Low Pressure High Altitude Simulation Chamber , Environmental Climatic Test Chamber

UP-6114 Low Pressure High Altitude Simulation Chamber , Environmental Climatic Test Chamber
UP-6114 Low Pressure High Altitude Simulation Chamber , Environmental Climatic Test Chamber
Categories Environmental Test Chamber
Certification: CE,ISO
MOQ: 1 Unit
Price: Negotiable
Brand Name: YOUBI
Model Number: UP-6114
Place of Origin: CHINA
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Delivery Time: 5-15 work days
Packaging Details: Professional Export Wooden Box Packaging
Product name: High Altitude Simulation Chamber
Model NO.: UP-6114
Temperature range: -160ºC~500ºC
Humidity range: 20%RH ~98%RH
Temp.fluctuation: ±0.5ºC(Room pressure)
Temp.accuracy: ±2.0ºC(Room pressure)
Heating up time: ≤60min(+20ºC~+150ºC,RP,No-Load)
Power supply: AC 3Ψ380V 60/50Hz
Contact Now
Company Info.
Dongguan Youbi Test Equipment Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

UP-6114 Low Pressure High Altitude Simulation Chamber , Environmental Climatic Test Chamber

UP-6114 High Altitude Low Pressure Simulation Environmental Climatic Test Chamber

Product Description:
High altitude low pressure simulation test chamber is in a short period of time to achieve low-pressure sample storage state, can automatically control the test cycle, the entire process to monitor the pressure change in the box to achieve automatic termination of the test.
Product Parameter:
Working room(L)1502254088001000
Inner chamber size(mm)W*H*D500*600*500500*750*600600*850*8001000*1000*8001000*1000*1000
Exterior chamber size(mm)W*H*D1000*1600*14001000*1750*15001100*1850*17001500*2000*17001850*1600*2250
Packaging volume(CBM)33.54.55.56
G.W.(KGs)320350400600700
PerformanceTemperature range-160ºC,-150ºC,-120ºC,-100ºC,-80ºC,-70ºC,-60ºC,-40ºC,-20ºC,0ºC~+150ºC,200ºC,
250ºC,300ºC,400ºC,500ºC
Humidity range20%RH ~98%RH(10%RH ~98%RH or 5%RH ~98%RH)
Temp.fluctuation±0.5ºC(Room pressure)
Temp.accuracy±2.0ºC(Room pressure)
Heating up time≤60min(+20ºC~+150ºC,RP,No-Load)
Cooling down time≤45min(RP)≤60min(RP)≤90min(RP)
Pressure rangeAtmospheric pressure~-98KPa,~133KPa,~0KPa
Pressure control tolerance±0.1kPa(≤2kPa),±5%(2kPa~40kPa),±2kPa(≥40kPa)
Depressurization time≤20min≤25min≤30min≤45min≤50min
Working environmentTemp:+5ºC~+35ºC;Humidity:≤90%RH;Air pressure:86-106kPa
MaterialExterior chamber materiaStainless steel plate+ powder coated
Inner chamber materiaSUS#304 stainless steel plate
Insulation MaterialPU Fiberglass wool
SystemAir circulation systemCooling fan
Heating SystemSUS#304 stainless steel high-speed heater
Humidification systemImported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser
Dehumidification systemADP critical dew point cooling/dehumidifying method
Vaccuum systemEquipped with vacuum pump
Controlling systemTEMI880,990
Power kw810121520
Water supplyWater temperature:≤30ºC;water pressure:0.2~0.4MPa;flow rate:≥10T/h
Other componentsSpecimen holders 2pcs,electrical wire 1pc(3M),pressure testing port.
Safety protection deviceOver-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power supplyAC 3Ψ380V 60/50Hz

Feature:
1. Temperature range from -70 to 200°C
2. Altitude range from ground to 100,000 feet
3. Optional humidity control when altitude system is off
4. Chamber interior size specified by customer
5. Automatic altitude control, integrated with temperature controller-No manual setting of altitude level
6. Vacuum pump sized for climb/dive rate required by application
7. Viewing window and cable ports available

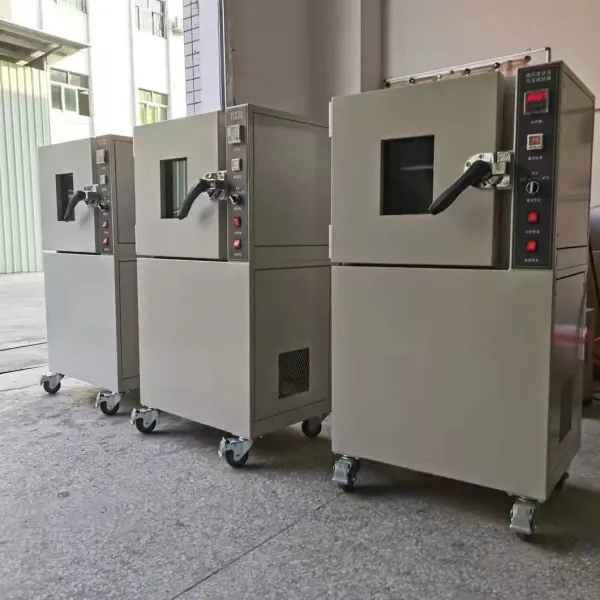

High Altitude Low Pressure Chamber Simulation Environmental Climatic Test Chamber
High Altitude Low Pressure Chamber Simulation Environmental Climatic Test Chamber

High Altitude Low Pressure Chamber Simulation Environmental Climatic Test Chamber
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.
4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.
FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
