3.3GHz FPV Video Transmitter with Stable Transmission and 3060MHz–3500MHz Frequency Coverage

This high-stability 3.3GHz FPV Video Transmitter with adjustable power output operatefrom 3060MHz to 3500MHz, designed for reliable, low-latency, long-range drone video transmission in professional and industrial UAV applications.

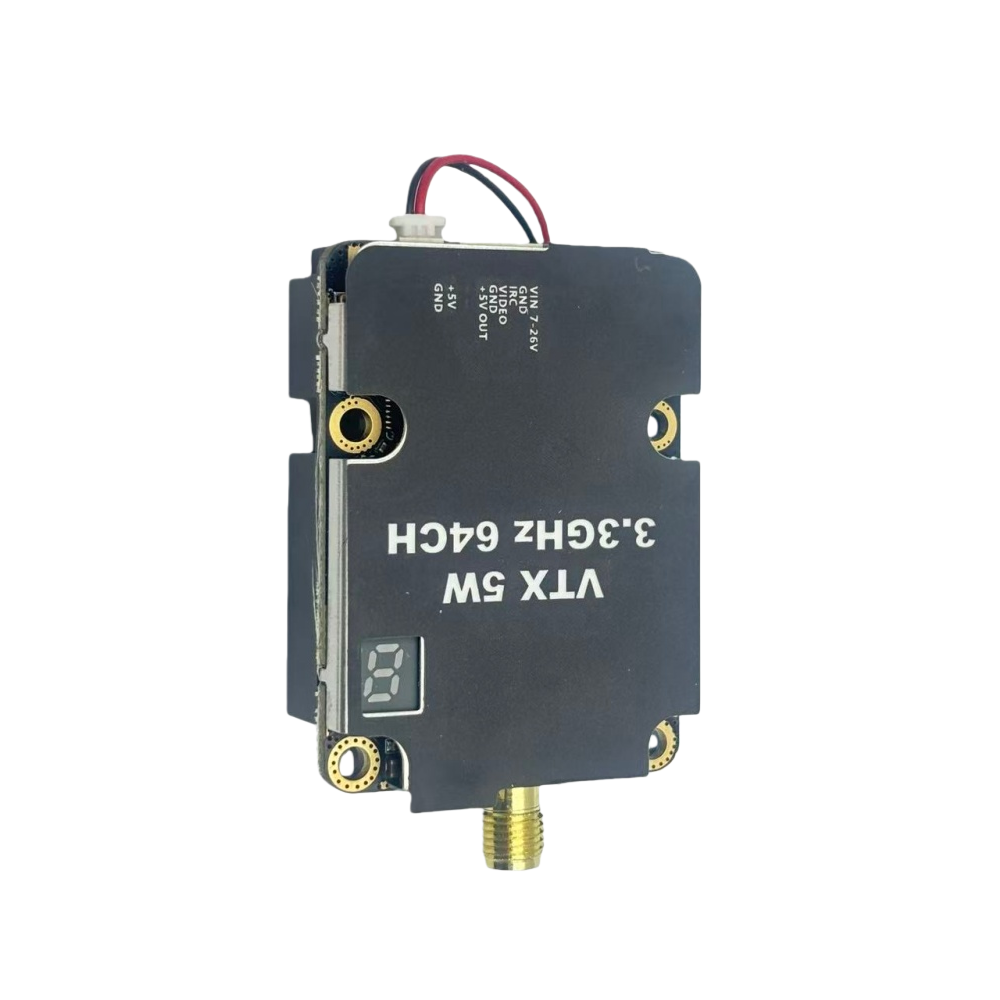

The 3.3G 64-channel VTX is a high-performance wireless video transmission module specifically engineered for drone applications, providing stable and reliable video signal transmission with flexible parameter customization. Supporting 7-26V wide voltage input, it adapts to various drone power supply systems and features a dedicated LED display for intuitive real-time monitoring of working parameters.

Compared to standard single-channel or fixed-parameter VTX modules, this product offers 8 selectable bands and 8 channels per band, totaling 64 channels, which significantly enhances anti-interference capability and avoids signal conflicts in complex flight environments.

• Frequency & Channel Configuration: 3.3G frequency band with 8 selectable bands (A-H) and 8 channels per band, totaling 64 channels for strong anti-interference and flexible signal transmission
• Flexible Power Adjustment: Supports 2 high-power levels (2000mW and 7000mW) and 0dBm P-mode, with convenient power switching via button operation (4-second press to enter, short press to adjust)
• Wide Voltage Adaptation: 7-26V input voltage range, compatible with various drone power supply systems for strong versatility

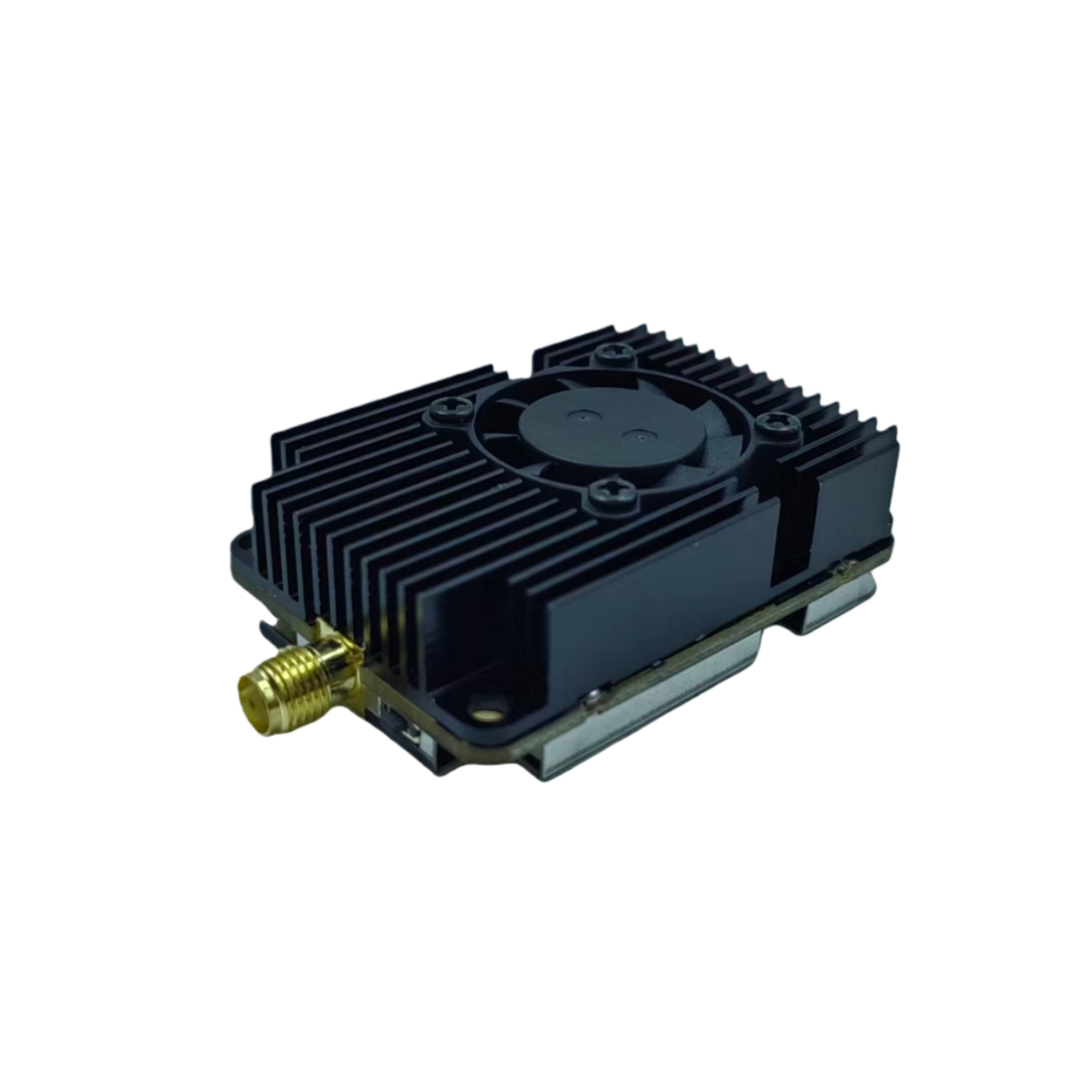

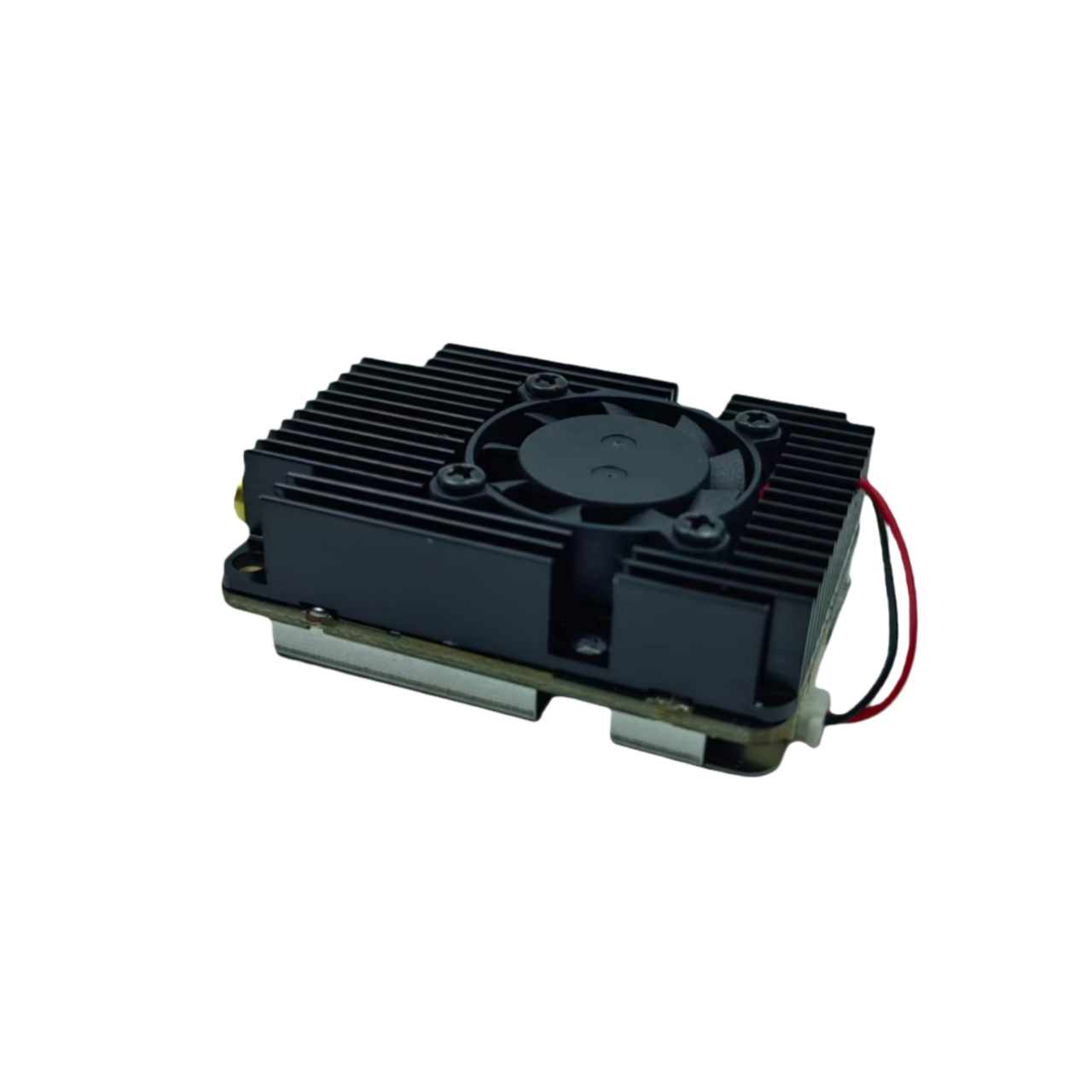

• Enhanced Reliability: Designed with dedicated heat sink for optimal thermal management, ensuring stable operation under long-term high-load transmission conditions
• Safe Operation: Supports pit mode for safe ground debugging with flexible entry/exit methods via Betaflight or button operation
