| Categories | Fujitsu ATM Parts |
|---|---|
| MOQ: | 1 |
| Price: | Negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/month |
| Delivery Time: | 3-8 working days |
| Packaging Details: | Wooden box |
| Compatibility: | Fujitsu ATM Models |
| Used In: | Fujitsu machine |
| Material: | High-grade Plastic and Metal |
| Delivery: | 2-7 days after payment received |
| Origin Of Place: | China |
| Shipping Mehtod: | By Express/by sea/by air |
| Item No: | KD03300-B252 |
| Part Number: | KD03300-B252-01 |
| Productname: | Fujitsu ATM Parts |
| Language Support: | English & Franch & Spainish & Arabic |
| Payment: | T/T,West Union,Paypal |
| Company Info. |
| Guangdong Shengjiang Group |
| Verified Supplier |
| View Contact Details |
| Product List |

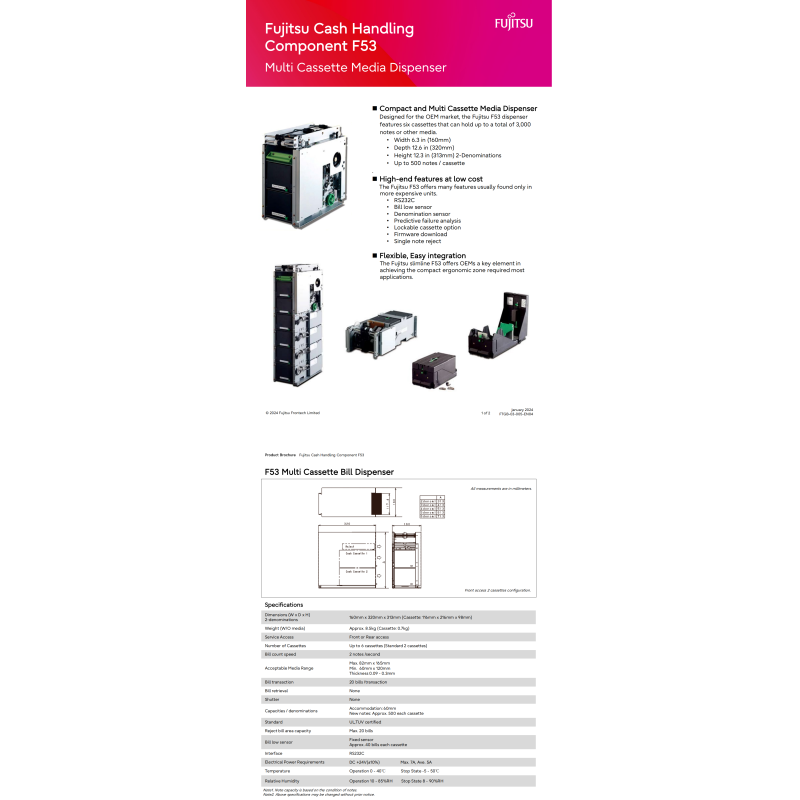

Compact and Multi Cassette Media Dispenser
F53 Bill Dispensig Unit
High-end Features at low Cost Flexible, Easy Integration.
F53 is a compact and multi cassette media dispenser, designed for
the OEM market.
Its compact body provides you with maximum flexibility and easy
integration in product design.
| Items | Specifications | |
|---|---|---|
| Dimensions(W x D x H) 2-denominations | 160mm x 320mm x 313mm | |
| Cassette 116mm x 216mm x 98mm | ||
| Weight (W/O media) | 8.5kg | |
| 0.7kg / Cassette | ||
| Service Access | Front or Rear | |
| Number of Cassettes | Up to 6 Cassettes | |
| Bill Count Speed | 2 Notes / Second | |
| Media Spec. Thickness | Max. 82mm x 165mm Min. 60mm x 120mm 0.09mm - 0.3mm | |
| Bills Transaction | 20 Bills / Transaction | |
| Bill Retrieval | None | |
| Shutter | None | |
| Capacities / Denomination | Accommodation 60mm New US Note 500 each cassette (Approx.) | |
| Standard | UL, TUV certified | |
| Reject Bill Area Capacity | Max. 20 bills | |
| Bill Low Sensor | Fixed sensor Approx. 40 bills each cassette | |
| Interface | RS232C | |
| Electrical Power Requirements | DC +24V +-10% Max. 7A Ave. 5A | |
| Temperature | Operation | 0ºC - 40ºC |
| Stop State | -5ºC - 50ºC | |
| Relative Humidity | Operation | 10% - 85% |
| Stop State | 8% - 90% | |

|
