Automatic SUS304 Food Sterilization Retort Autoclave with DN1200 Diameter

Categories Sterilization Retort
Certification: CE
MOQ: 1
Price: 30000
Model NO.: SPCPAM. B1. T
Scale: Large
Automation: Automatic
Principle: Shake Rotary Direct
Structure: Tunnel
Operation: Continuous
Energy: Heat Sterilization
Property: Physical Sterilization
Type: High Voltage Electric Field Sterilization Equipment
Diameter: DN1200
Length: 6000mm
Dimension: 6600X1500X2000mm
Material: SUS304
Material Thickness: 8mm
Working Pressure: 0.3Mpa
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic SUS304 Food Sterilization Retort Autoclave with DN1200 Diameter

Product Description

Introduction to the configuration of the autoclave
The pot body is made of SUS304 stainless steel
--Double-door vertical hydraulic upper-opening structure
--basket per pot
--The insulation of the pot body is made of SUS304 stainless steel
--Using high temperature hot water to exhaust air
--All gas connections and lines required for the sterilizer are connected with open wires and outsourced cables.
--Working pressure: 0.3Mpa
--Safety device for the tank
safety valve;
safety interlock;
emergency button;
Alarm light and alarm buzzer;
alarm system;
--HMI
The sterilization status (temperature, pressure, valve status, liquid level, door opening status) can be checked at any time;
--You can edit the sterilization formula by yourself
--Use a paperless recorder to monitor and record all the processing data in the retort
Pot temperature, pot pressure, sterilization time, high and low temperature and liquid level alarm
--Automatic control of the sterilization process, dynamic tracking and recording of the operating status of the sterilizer, parameters of the sterilization process, alarm records, etc.
--Please refer to the configuration list for the detailed configuration of the wall thickness of the sterilizer process tank, valve instrument, PLC, and paperless recorder

Detailed Photos

High Efficiency and High Safety Food Sterilization Retort Canned Food RetortHigh Efficiency and High Safety Food Sterilization Retort Canned Food RetortHigh Efficiency and High Safety Food Sterilization Retort Canned Food Retort

Product Parameters

ItemsunitDN1200#DN1300#DN1500#DN1600#DN1800#DN1900#
Total lengthmm660066007700770088009800
Total widthmm350017002000220024002800
Total hightmm200022002400260028003000

Certifications

High Efficiency and High Safety Food Sterilization Retort Canned Food Retort

Electrical components

High Efficiency and High Safety Food Sterilization Retort Canned Food Retort

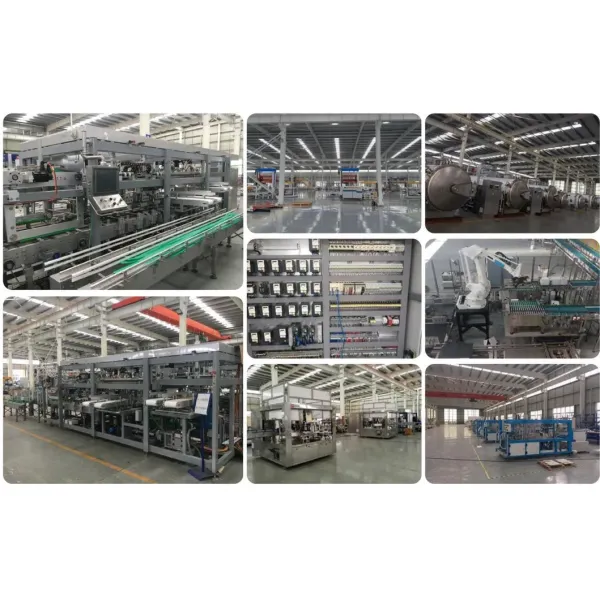

Work shop

High Efficiency and High Safety Food Sterilization Retort Canned Food RetortHigh Efficiency and High Safety Food Sterilization Retort Canned Food Retort

Our customers

High Efficiency and High Safety Food Sterilization Retort Canned Food Retort
