| Categories | Industrial TFT LCD |
|---|---|
| Brand Name: | Jingtai |
| Model Number: | JT-5.5IPSHD |
| Place of Origin: | Shenzhen/China |
| MOQ: | 5pcs |
| Payment Terms: | T/T,Western Union,L/C,MoneyGram,D/A,D/P |
| Delivery Time: | 1-5 weeks |
| Certification: | ISO9001 / ISO14000 |
| Supply Ability: | 2000K pcs per month |
| Packaging Details: | Standard Exportation Package |
| Price: | 1-20 |
| Key Words: | 5.5 inch IPS HD |
| Resolution: | 720*1280 |
| Display Mode: | IPS Full Viewing Angle |
| Luminance: | 250cd/m²(Typ) 500cd/m²(Typ) |
| Interface Definition: | MIPI |
| Touch Screen: | CTP |
| CTP Interface: | 12C |
| CTP Structure: | GF/GFF |
| Company Info. |
| Shenzhen Jingtai Liquid Crystal Display Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Specification | Value |
|---|---|
| Application | Industrial Control |
| Number of pixels | 720*1280 pixels |
| Active Area | 68.04*120.96mm |
| Module Outline | 70.24*127.9*1.44mm |
| Aspect Ratio | 16:9 |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 80/80/80/80 (Typ) |
| Contrast Ratio | 800MIN, 1000 (Typ) |
| NTSC | 72% (Typ) |
| LCM Brightness | 250cd/m² (Typ) 500cd/m² (Typ) |
| Interface | MIPI |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -30~+80℃ |
5.5HD-Inch TFT Display, Multi-Touch CTP TFT Display, MIPI Interface 5.5-Inch Display
5.5HD-Inch Multi-Touch CTP TFT MIPI Interface
Product Introduction
TFT (Thin Film Transistor) technology enables liquid crystal displays with fast response times and high color reproduction. The model JT-5.5IPSHD incorporates IPS technology, delivering near-180-degree wide viewing angles while maintaining color consistency and accuracy from any direction.
The capacitive touch functionality is driven by the controller chip, which supports multi-touch operations and ensures a smooth, responsive user experience. The combination of precise touch accuracy and rapid response makes this 5-inch TFT display ideal for applications requiring high-precision interaction. Jingtai Liquid Crystal Display Technology specializes in IPS-based solutions, with a portfolio of over 200 IPS products serving diverse industries.
The JT-5.5IPSHD offers a high-definition resolution of 720 × 1280 pixels, delivering sharp imagery and rich detail. With a standard brightness of 250 cd/m², it remains clearly visible even in brightly lit environments. Custom brightness options of up to 500 cd/m² or higher are available to meet specific project requirements.
This display is widely used in POS/PDA, tablets, automotive navigation systems, industrial control panels, and other applications where high-resolution visuals and intuitive multi-touch functionality are essential.

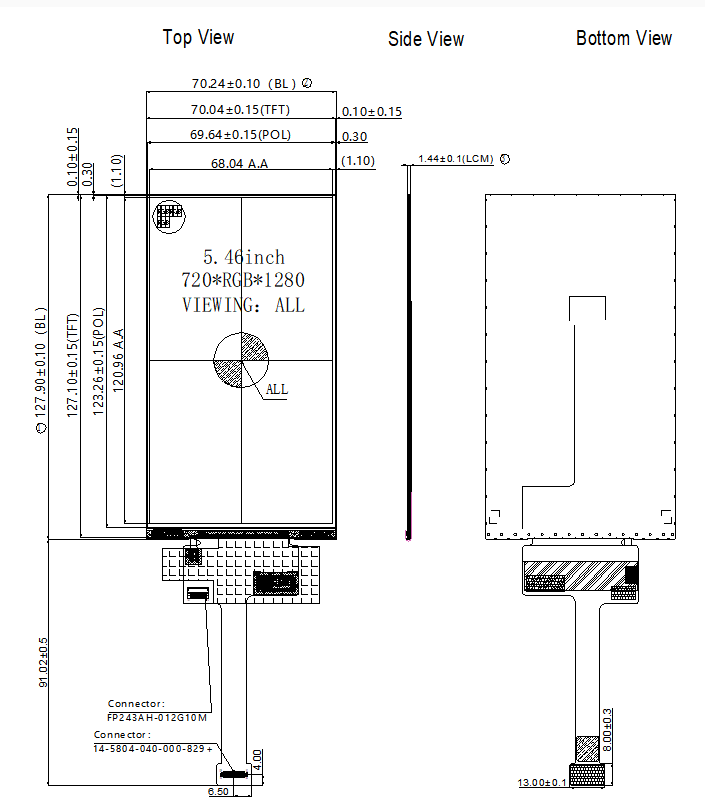

Industrial TFT Display HD 5.5 Inch, 5.5 Inch HD Industrial Capacitive Touch LCD Drawing
|
