Low Latency 30ms Video and Telemetry Data Transceiver for UGV Robot Dog and UAV

Introduction

FDM-6823UG Wireless Data Link - High-Performance UGV Communication Solution

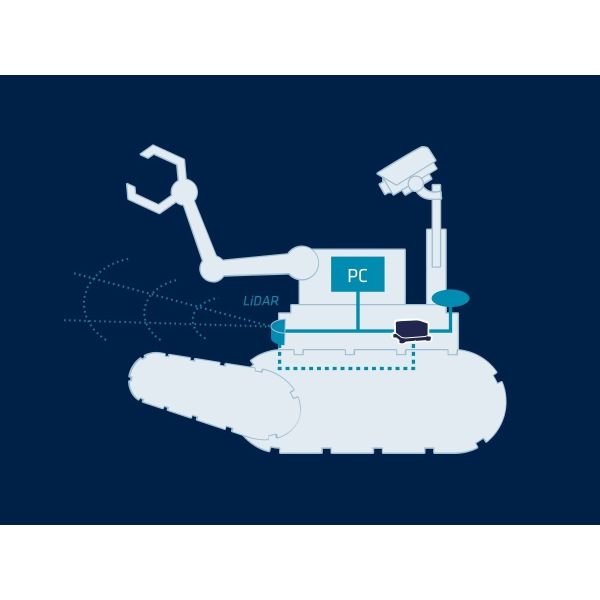

IWAVE's FDM-6823UG is an ultra-small, high-performance wireless star topology data link module designed for space- and power-constrained systems. Weighing only 281 grams, it is ideal for platforms such as small unmanned aerial vehicles (UAVs), unmanned ground vehicles (UGVs), and robots.

High Light

Ultra-Long Communication Range: In open environments, the FDM-6823UG boasts a communication range exceeding 30 kilometers, meeting remote control and data transmission needs. In non-line-of-sight environments, the FDM-6823UG's communication range is 1-3 kilometers.
High Data Throughput: Supports data rates up to 100 Mbps, suitable for HD video and real-time data streaming.
Low-Latency Control: Provides ultra-low latency of 30 milliseconds, ensuring real-time control and feedback.
Multiple Network Modes: Supports Point-to-Point (PtP) and Point-to-Point (PtMP) wireless communication modes, flexibly adapting to different application scenarios.
Strong Security: Supports AES-128 encryption to ensure secure data transmission.
Multiple Frequency Bands: Offers multiple frequency band options, including 600 MHz (566-678 MHz) and 1.4 GHz (1420-1530 MHz), to meet communication needs in different regions around the world.

Rich Interfaces: Equipped with Ethernet (100Base-T), USB-Device, USB-Host, one UART, and three GPIOs, it easily connects to a variety of devices.
High-Power Design: Max 5W transmit power ensures long-distance communication.
Rugged and Durable: The rugged housing design withstands harsh environments and ensures stable operation.
Easy Integration: Detailed API technical documentation and support are provided to help users quickly integrate the FDM6823UG into existing systems.

Technical Specifications

General		Wireless
Technology	Wireless based on TD-LTE Technology Standards	Communication	1T1R 1T2R 2T2R
Video Transmission	1080p HD video transmission, H.264/H.265 adaptive	IP Data transmission	Supports data transmission based on IP packets
Eencryption	ZUC/SNOW3G/AES(128) Optional Layer-2	Data Link	Full duplex communication
Data Rate	Max 100Mbps(Uplink and Downlink)	Up & Down Ratio	2D3U/3D2U/4D1U/1D4U
Range	30km(Air to ground(LOS) UGV: 500meters-3km Ground to ground(NLOS)	Automatic Reconstruction Chain	Automatic link re-establishment after link failure/ re-deploy the network after a link failure
Capacity	64nodes	Sensitivity
MIMO	2x2 MIMO	1.4GHZ	20MHZ	-102dBm
Transmitting Power	5watts(2W~5W adjustable via software)		10MHZ	-100dBm
Latency	Air interface delay<30ms		5MHZ	-96dBm
Modulation	QPSK, 16QAM, 64QAM	600MHZ	20MHZ	-102dBm
Anti-Jamming	Frequency Hopping and Adaptive Modulation		10MHZ	-100dBm
Bandwidth	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz		5MHZ	-96dBm
Power Consumption	30Watts	Dual Frequency Band(Software Selectable)
Voltage and Current	DC12-30V	1.4Ghz	1420Mhz-1530MHz
Dimension	12.79.41.8cm	600Mhz	566Mhz-678Mhz

Frequently Asked Questions

Q1: What types of communications does the FDM-6823UG support?
A1: The FDM-6823UG supports wireless transmission of high-definition video, data, and serial control signals, and is widely used in unmanned ground vehicles, robotics, and other fields.

Q2: How do I switch frequency bands?
A2: Users can select either the 600 MHz or 1.4 GHz frequency band through simple software configuration, allowing for flexible switching to meet different application requirements.

Q3: How is the FDM-6823UG's interference immunity?
A3: The FDM-6823UG uses frequency hopping sequence (FHSS) technology, combined with 2x2 MIMO technology, to automatically avoid interference in crowded environments, ensuring a stable communication link.

Q4: What communication protocols does the FDM-6823UG support?
A4: The FDM-6823UG supports multiple protocols, including Ethernet, TCP, UDP, MQTT, and Modbus, enabling easy integration into various control and data transmission systems.

Q5: How many nodes does each network support?
A5: The FDM-6823UG supports up to 64 nodes, making it suitable for large-scale network deployment and expansion.

Product Tags:


*From:	Your email address is incorrect!
*To:	IWAVE COMMUNICATIONS CO.,LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	UGV Data Link
Brand Name:	IWAVE
Model Number:	FDM-6823UG
Certification:	CE,FCC
Place of Origin:	CHINA
MOQ:	2units
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	5000units/month
Delivery Time:	10-15days
Packaging Details:	Standard Shipping Carton
Name:	Low Latency 30ms Video and Telemetry Data Transceiver for UGV Robot Dog and UAV
Latency:	30ms
RF Power:	2W-5W
Anti-jamming:	FHSS
Encryption:	AES128
Antenna Port:	2*SMA
NLOS Range:	1-3km ground to ground
Data Rate:	100Mbps
LOS Range:	30km air to ground
