| Categories | Jib Crane |
|---|---|
| Power Supply: | 380V 50Hz or Customized |
| Place of Origin: | China |
| Certification: | CE \ ISO |
| Jib Outreach: | 2–9 m |
| Payment Terms: | T/T |
| Working Class: | M3 ~ M5 |
| Color: | Yellow |
| Matched Hoist: | Electric Chain / Wire Rope Hoist |
| Delivery Time: | 20 Days |
| Control System: | m Pendant / Remote Control |
| MOQ: | 1 SET |
| Supply Ability: | 1-9 sets |
| Lifting Height: | 2–8 m |
| Brand Name: | HG CRANE |
| Model Number: | BZD |
| Lifting Capacity: | 0.25–10 Ton |
| Price: | CN¥20,905.80/sets |
| Packaging Details: | Wooden Box |
| Rotation Angle: | 180° / 270° / 360° |
| Company Info. |
| Henan Huagong Industrial Group Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Introduction

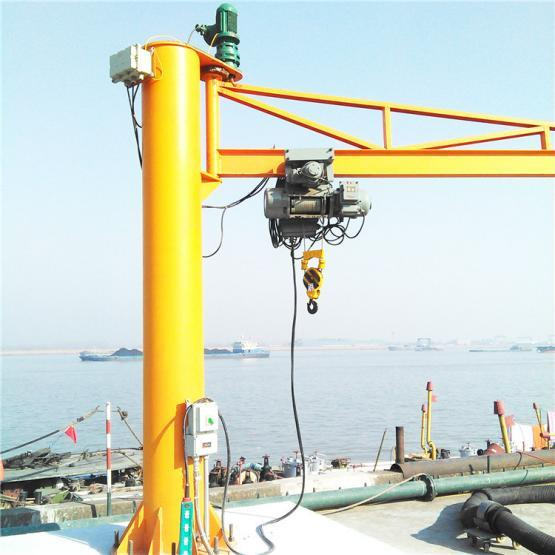

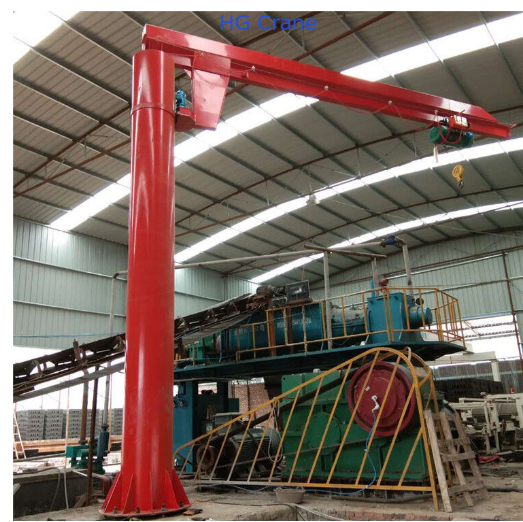

Jib Crane A Jib Crane is a highly efficient and versatile local lifting solution designed
for precise material handling within a limited working area. With a
compact structure, flexible rotation, and easy installation, jib
cranes are widely used in workshops, warehouses, machining centers,
assembly lines, and maintenance stations. Our jib cranes are
available in four main types to suit different working environments
and installation conditions: Pillar Type, Wall-Mounted Type, Articulated (Knuckle) Type, and Mobile Type.
Each type is engineered to provide stable performance, smooth
operation, and long service life.
Key Features Flexible Slewing Range (180° / 270° / 360° depending on model) Compact and Space-Saving Design Smooth and Precise Load Positioning Compatible with Electric Chain Hoists, Wire Rope Hoists, and Manual
Hoists Optional Manual or Electric Rotation & Trolley Travel Easy Installation with Minimal Structural Requirements
| Model | Capacity | Lift Height | Rotation Radius | Working Radius | Lift Speed (m/min) | Traveling Speed (m/min) | Rotation Speed | Rotation Range | Machine Height (m) | Rotation Motor (kW) | Lift Motor (kW) | Traveling Motor (kW) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BZD0.125 | 0.125t | 3m | 3m | 1m | 8/2 | 7, 14, 28 | 0.8 r/min | 360° | 3.6/3.75/3.8/3.85 | 0.37 | 0.2/0.05 | 0.14 |
| BZD0.25 | 0.25t | 3m | 4m | 1m | 4/1, 10/2.5 | 7, 14, 28 | 0.8 r/min | 360° | 3.75/3.8/3.85/3.85 | 0.37 | 0.2/0.05, 0.5/0.13 | 0.14 |
| BZD0.5 | 0.5t | 3m | 5m | 1m | 5/1.25, 10/2.5 | 7, 14, 28 | 0.8 r/min | 360° | 3.85/3.9/4.0 | 0.37/0.55 | 0.5/0.13, 1.0/0.25 | 0.14 |
| BZD1 | 1t | 3m | 6m | 1m | 5/1.25, 8/2 | 7, 14, 28 | 0.8 r/min | 360° | 4.0/4.05/4.1/4.15 | 0.37/0.55 | 1.0/0.25, 1.5/0.35 | 0.2 |
| BZD2 | 2t | 3m | — | 1m/1.5m | 4/1 | 7, 14, 28 | 0.8 r/min | 360° | 4.25/4.4/4.45 | 0.55/0.75/1.10 | 1.5/0.35 | 0.2 |
| 3ZD5(3t) | 3t | 3m | — | 1.8m | 4 | 7, 14, 28 | 0.8 r/min | 360° | 4.3/4.45/4.5/4.65 | 0.55/0.75/1.10 | 2.3 | 0.4 |
| 3ZD5(5t) | 5t | 3m | — | 1.8m | 8 | 7, 14, 28 | 0.8 r/min | 360° | 4.6/4.9/4.95 | 1.1 | 2.3 | 0.5 |
|
