The A12 Pro is an advanced unmanned survey boat developed for hydrographic surveying, bathymetric mapping, river discharge measurement, and water quality monitoring.
Designed to work seamlessly with ADCPs, echo sounders, and water quality sensors, the A12 Pro enables survey professionals to perform accurate measurements while minimizing field workload.
Its lightweight carbon fiber and Kevlar construction offers exceptional strength, while the catamaran hull provides excellent stability and maneuverability in rivers, lakes, reservoirs, and coastal waters.
235mm through hole design, can be equipped with the mainstream navigation ADCP on the market, plug and play, easy installation. Water quality sampling or water quality monitoring equipment can be switched.
Equipped with special depth sounder for unmanned ship, data internal storage,remote control to check the measurement status in real time, transducer and thruster flush with the bottom of the ship, suitable for terrain survey in 0.15-300m waters.
 Depth sounding system |  Automatic running |  Data achievement |
Deepth Sounder:Equipped with self-storage function and equipped
with autonomous navigation system of unmanned ship, it realizes
efficient and convenient measurement and meets the needs of
surveying. | ||

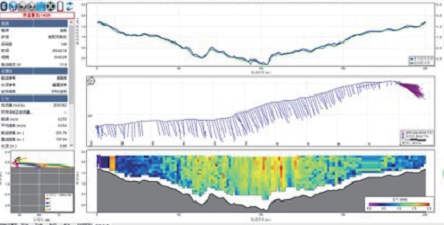

 3M velocity of flow |  RiverRay Data |  M9 Data |
ADCP:Large unit opening design, suitable for multiple types of
ADCP; Maximum 3m/s top flow capacity to meet the needs of harsh
environments. | ||
 Sampling module |  Online sampling |  Online monitoring |
Deepth Sounder:The water quality analyzer and water quality
sampling equipment can be changed with use, supporting real-time
data transmission, cloud data backup, and offline download. | ||
| BOAT | Size(mm) | 1100*580*320 |
|---|---|---|
| Weight | 14KG | |
| Hull Material | Kevlar & carbon fiber high-strength composite | |
| Hull Design | Catamaran | |
| Stability | Grade 3 wind and grade 2 waves | |
| SAILING PERFORMANCE | Duration | 6 hours on 2m/s speed, with removable battery |
| Max Speed | 7m/s | |
| Engine | 2 Culvert brushless DC propellers | |
| Propeller | Electric driven | |
| Direction System | Differential Steering | |
| SAFETY SYSTEM | Avoidance | Video-aid manual avoidance or sonar(optional) |
| Video Stream | High resolution | |
| Auto Return | Auto return when low power or disconnected | |
| ASHORE SYSTEM | OS | Windows/Android |
| Communication Type | Realtime P2P connection or 4G wireless | |
| Range | 4G:unlimited, Controller :3km | |
| Navigation Mode | Manual/Automatic | |
| ADCP | Hole Size | Diameter 235 mm |
| Instrument Type | NavigationADCP | |
| SINGLEBEAM ES | Deep Range | 0.15– 300 m |
| Accuracy | 1 cm ± 0.1% *Deepth | |
| Storage and I/O | Datastorage 16G internal/Data trasmit:RS232 | |
| Display | LCD,Resolution128 x 64 |
|
