304 Stainless Steel Vibrating Screen Machine for Egg Powder

Categories	Rotary Vibrating Screen
Model NO.:	DY-600-1S
Transmission Structure:	Vibrating Screen
Usage:	Separation Screening
Works:	Rotary Vane Shaker
Object:	Food Processing
Shaft Number:	Single
Running Track:	Circular Vibrating Screen
Supporting Device:	Steel Spring
Warranty:	18months
Customized:	Customized
Condition:	New
After-sales Service:	Online
Name:	304 Stainless Steel Vibrating Screen Machine
Keyword:	Vibrating Screener
Material:	Stainless Steel 304
Motor:	Vertical Vibration Motor
Layer(S):	1-3 Layers
Mesh Size:	0-200 Mesh
Cleaning System:	Bouncing Ball Cleaning System
Installation:	Engineer Guide
Operation:	Automatic Continuous Operation
Transport Package:	Standard Export Wooded Case
Specification:	600mm diameter
Trademark:	DY
Origin:	China
HS Code:	847410000
Production Capacity:	50 Set/Sets Per Month
MOQ:	1 set
Price:	US $1,150 / set

Contact Now

Add to Cart

Company Info.

Xinxiang Dayong Vibration Equipment Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

304 Stainless Steel Vibrating Screen Machine for Egg Powder

Xinxiang Dayong Vibration Equipment Co., Ltd. is a international manufacturing factory with research and development, design, production and sales services, it is committed to provide customers with reasonable screening, conveying and crushing equipment design solutions.

Product Description

Introduction

Rotary vibrating screen uses upright motor as the source of vibration, and it is equipped eccentricity hammer on the both sides of motor. Adjust the phase angle on the both sides of the top and bottom to change the movement orbits of the screen surface. It can be equipped with screen cloth cleaning device to avoid clogging effectively. The vertical horizontal and inclined movement of the machine, the track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.

Product Parameters

Model	Power(kw)	Valid Diameter of screen(mm)	Volume(mm)	Layers
DY-600-1S DY-600-2S DY-600-3S	0.55kw	550mm	800800680 800800780 800800880	1 2 3
DY-600-1S DY-600-2S DY-600-3S	0.55kw	550mm	800800680 800800780 800800880	1 2 3	DY-800-1S DY-800-2S DY-800-3S	0.75 kw	750mm	900900780 900900930 9009001080	1 2 3
DY-1000-1S DY-1000-2S DY-1000-3S	1.5 kw	950mm	11601160880 116011601030 116011601180	1 2 3
DY-1200-1S DY-1200-2S DY-1200-3S	1.75 kw	1150 mm	13601360980 136013601160 136013601360	1 2 3
DY-1500-1S DY-1500-2S DY-1500-3S	2.2 kw	1450mm	185018501130 185018501330 185018501550	1 2 3
DY-1800-1S DY-1800-2S DY-1800-3S	3 kw	1750mm	220022001360 220022001460 220022001680	1 2 3

For more specifications and customization requirements, please consult our staff.

Features

1.Small size, light weight, saving space.

2.The direction of the discharge port can be adjusted, coarse and fine material automatically discharged.

3.No mesh plug, no powder flying, the smallest screen can be up to 500 mesh (28 microns, but an ultrasonic system needs to be added.), the smallest filter up to 5 microns.

4.Single layer rotary vibration screen with unique grid design, long-term use of screen, easy to change screen mesh, only 3-5 minutes, simple operation, easy to clean.

5.No mechanical action, easy maintenance, can be single or multi-layer, contact part of the material is made of stainless steel (except for medical use).

6.Any solid, liquid, powder, granules, slurry materials within a certain range can be screened.

Specification

Packing & Delivery

Certifications

FAQ

a: Customers who are familiar with technical performance and parameters can directly order.
It appreciate If you send us the pictures you have ever used.

b: Customers who need us to choose the models, please tell us follow the information:
Name and feature of the raw material? Aim of using: get rid of impurity, filtration, grading Handling capacity: kg /h, L/h The raw material size: (mesh or mm) How many final materials you want, or how many layer you need? It appreciate If you send us the relevant pictures about the details.

c: How many kinds of material are supported?

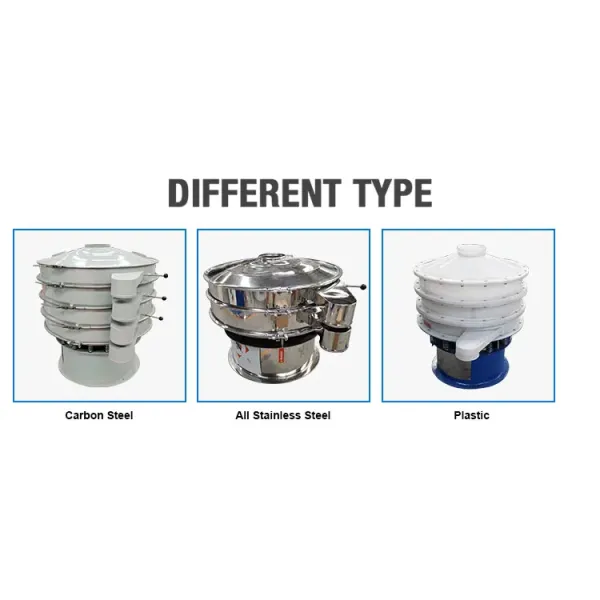

All stainless steel (304, 316L) All carbon steel Q235A Contact part Stainless steel.

d: Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
