Holland 90557226 Air Spring Assembly Cross Goodyear 1B12-300/313 3/8 UNC Threaded Hole

Categories Industrial Air Springs
Brand Name: AIRSUSTECH Air Springs
Model Number: 1B5330
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Holland: 90557226
Gas Hole: 1/4 NPTF
Threaded Hole: 2×3/8-16 UNC
Number of Ply Bellows: One
Minimum Usable Height: 55 MM
Warrantly: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Holland 90557226 Air Spring Assembly Cross Goodyear 1B12-300/313 3/8 UNC Threaded Hole

Holland 90557226 Air Spring Assembly Cross Goodyear 1B12-300/313 3/8 UNC Threaded Hole

Product Description:

The AIRSUSTECH Air Springs are air shocks designed to provide superior quality, durability and load capacity for a range of automotive applications. Made with high-grade rubber and steel, they are engineered to provide superior performance in temperatures ranging from -40℃ to +70℃. With their superior load capacity and durability, these air shocks are ideal for vehicles of all sizes, shapes and types. They are designed to provide superior shock absorption and stability, resulting in a smoother and safer ride. In addition, they are easy to install and require minimal maintenance, making them a great choice for any vehicle.


Specifications and Detailed Technical Parameters: 1B5330


Top plate screw (nut) teeth2X3/8-16UNC
The screw center distance of the top cover plate157.5 mm
Screw (nut) teeth of the bottom cover plate2X3/8-16UNC
The screw center distance of the bottom cover plate157.5 mm
Air hole/air inlet1/4 NPTF
The distance between the screw center and air fittings73 mm
Top plate width231 mm
Diameter of the bottom cover231 mm
MAX. Rubber Bellow Diameter325 mm
StrokeMinimum 231 mm to Maximum 325 mm

Cross References:


Holland90557226
Triangle6374/4474
Goodyear1B12-300/313, 1B12 300/313, 1B12300/313
Firestone

W01-358-7008, W01 358 7008, W013587008

WO1-358-7008, WO13587008, WO1 358 7008

Contitech

FS 330-11 474, FS330-11 474, FS330-11474

FS 330 11 474, FS330 11 474, FS33011 474

FS330-11 474, FS330 11474, FS33011474


Maintenance and inspection:

To ensure safe use, be sure to carry out daily inspections. If any abnormality is found during inspection, replace with a new one.
1. Please confirm that the upper and lower panels and waist rings are properly placed. In particular, if pressure is applied to the waist ring in a state of displacement and detachment, the air spring may rupture.
2. If foreign matter, oil, or chemicals are stained on the air spring, be sure to remove them.
3. If lubricating oil is mixed into the air spring bladder, please clean it at any time and clean the rubber bladder with water regularly.
4. Please confirm that the supply pressure is appropriate. In particular, abnormal phenomena are prone to occur in the pipes, which should not be ignored.

Please send us your request by e-mail, so we can send you our offer with competitive prices and delivery time for AIRSUSTECH 1B5330 Bellows Style Industrial Air Spring number or any other model you need. We can offer competitive price, and delivery time.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

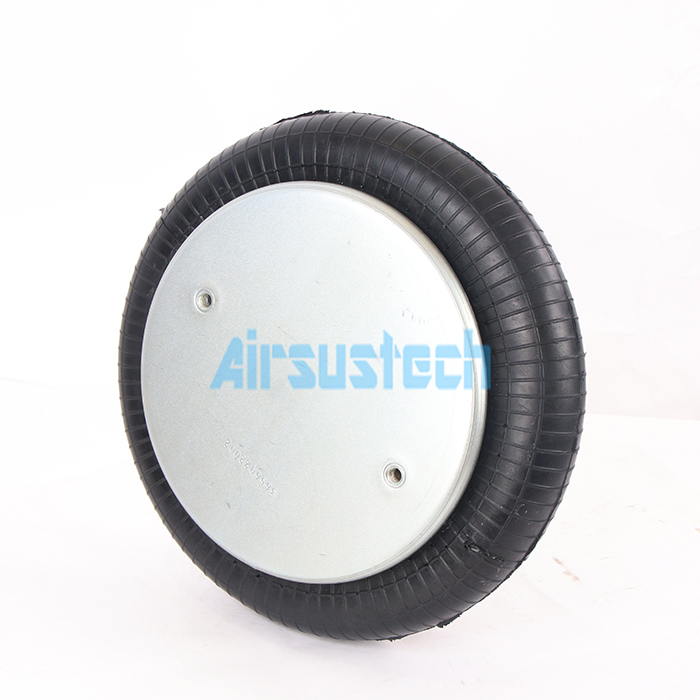

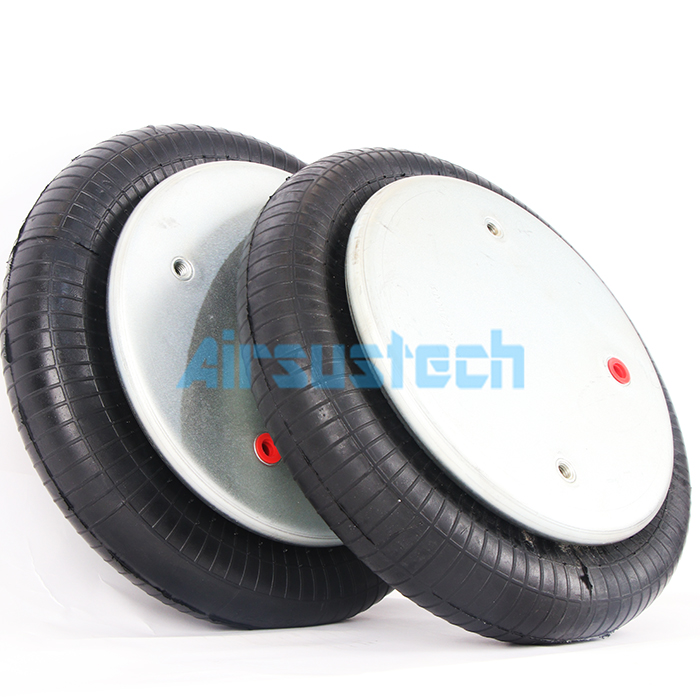

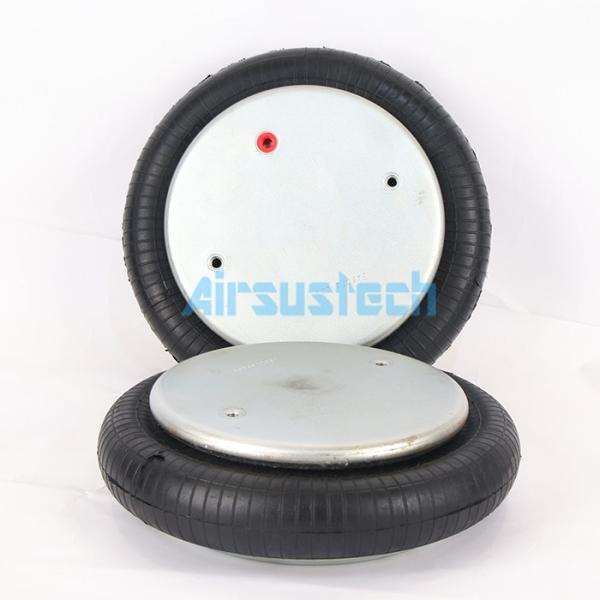

The Related Pictures of 1B5330:
