| Categories | Rackmount Firewall Appliance |
|---|---|
| Brand Name: | SMATIPC |
| Model Number: | 2U6L-ADL |
| Certification: | CCC,CE,ROHS,ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 10000 Pcs/Month |
| Delivery Time: | 3-7Days |
| Packaging Details: | Each pc for one neutral box |
| CPU: | Intel Core i3 i5 i7 of LGA1700 |
| Dispaly Chipset: | H610 |
| Serial: | 1 COM (support Console), |
| Display: | 1 HD-MI |
| Lan: | Intel i210-AT Gigabit Ethernet ports |
| Number Of Lan Ports: | 6 |
| Quality Of Service (Qos) Support: | YES |
| Operating Humidity: | 5% - 95% |
| Company Info. |
| Shenzhen Xin Saike Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
2u Dual Socket Intel H610 Chipset Rackmount Server Of Lga1700
The 2U6L ADL Rackmount Server features Intel Core I3-12100, I5-12400and I7-12700,they are cpu specification as follow:
i3: 4 Core 8 Threads, 3.3 Ghz, Turbo Frequency 4.3 Ghz, 5MB
i5: 6 Core 12 Threads, 2.5 Ghz, Turbo Frequency 4.4 Ghz, 7.5MB
i7: 12 Core 20 Threads, 2.10 Ghz, Turbo Frequency 4.9 Ghz, 12MB
Parameter | 2U6L-ADL | Storage | ||
| Processor | Intel Core I3-12100 Intel Core I5-12400 Intel Core I7-12700 | M.2 | 1 M.2 (M-Key 2280 supports SATA) | |
| Chipset | Alder Lake-N | SATA | optional 1 X 3.5 inch HDD or 2 x 2.5 inch HDD | |
| Memory | 2 DDR4 3200 U-DIMM Memory , Max. 64GB | Expansion slots | ||
| Graphics Card | Mini PCIE | 1 PCIE X8 (optional 4 Optical Ports or 4 Network Ports) | ||
| Graphics Card | Intel UHD Graphics 730/770 | M.2 | 1 M.2 (M-Key 2280, supports SATA SSD) | |
| Display port | 1 x HD-MI | Size/weight | ||

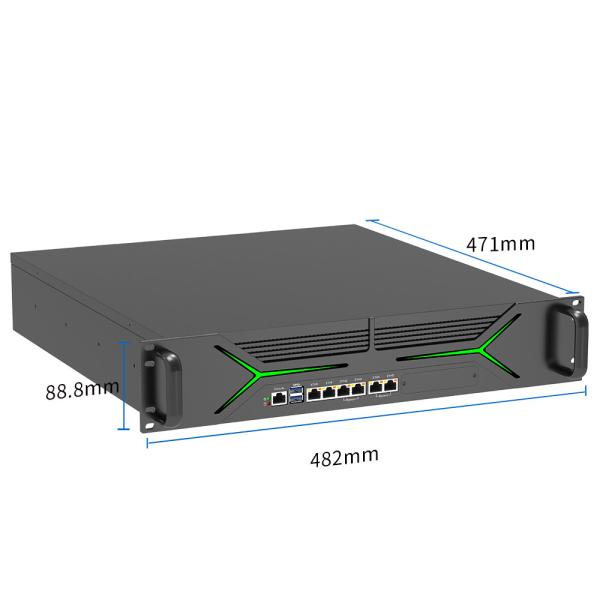

| Dimension | 482 x 471 x 88.8mm | |||
| Ethernet | weight | 7.19 kg (barebone) | ||
| Internet port | 6 Intel i210-AT Gigabit Ethernet ports ( 2 sets of Bypass) | Installation | / | |
| I/O | Environmental | |||
| USB | 2 x USB 3.0 | Operating Temperature | 0℃ to 50℃, Surface air flow | |
| COM | 1x RS232/485 COM | Operating Humidity | 5% ～ 95% Non-condensing state | |
| Audio | / | Other Function | Watchdog (level 0-255) Diskless boot, Wake on LAN, Auto power on, Timing boot | |
| Power supply | ||||
| Power Input | 90 to 265V (47Hz-63Hz) AC input (optional redundant power supply) | Application | Firewall, VPN, network server, network security, router .,etc | |
The 2U6L-ADL Rackmount Server is designed for for Car Body Construction
|
