| Categories | Fiber Optic Connector |
|---|---|
| Brand Name: | GoreLink |
| Model Number: | G519-731 |
| Certification: | CE,RoHS |
| Place of Origin: | China |
| MOQ: | 1pc |
| Payment Terms: | T/T, Western Union,Paypal, D/P |
| Delivery Time: | 1-3 Working days |
| Packaging Details: | 200pcs/Pkt |
| Product Name: | FC/UPC Singlemode Simplex 3.0mm Fiber Optic Connector |
| Application: | FTTH FTTB FTTX Network,Telecommunication |
| Part No.: | G519-731 |
| Connector type: | FC/UPC |
| Fiber type: | SM |
| Color: | Blue |
| Epoxy: | Yes |
| Fiber cable type: | 2.0mm 3.0mm cable |
| Return loss: | ≥50dB |
| Insertion loss: | ≤ 0.3dB |
| Compliance: | RoHS compliant |
| Operating temperature: | -40°C ~ +80°C |
| Lead time: | 3 days |
| Company Info. |
| Gorelink Communication (Shenzhen) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

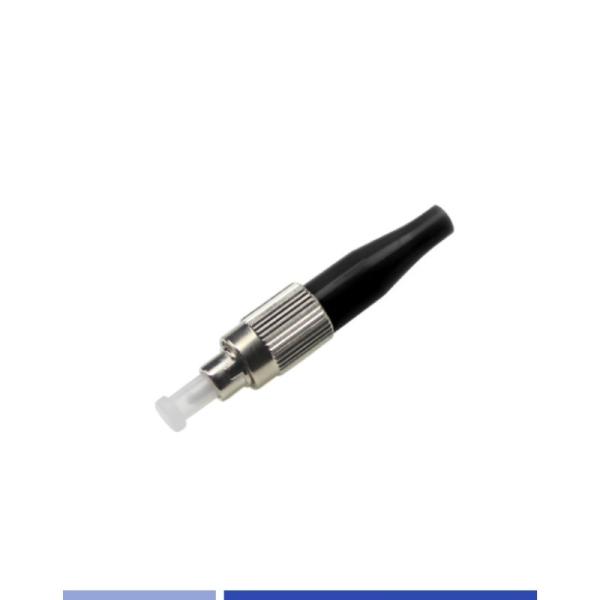

FC/UPC Singlemode Simplex 3.0mm Fiber Optic Connector
Gorelink manufacture various kinds of Single Mode and Multimode fiber optic connectors for fiber connecting applications. Each fiber optic connector is functionally tested before shipping and is covered by a lifetime warranty.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
Fiber Connector Type | FC/UPC | |
Body Style | Simplex | |
Fiber Mode | Singlemode | |
Hoursing/Boot Color | Metal-Black | |
Compatible cable diameter | 3.0mm | |
Flammability Rate | UL94-V0 | |
Compliant | RoHS, Telcordia GR-326-CORE | |
Optical Specification
Parameter | Singlemode | Multimode | ||
PC | UPC | APC | UPC | |
Insertion loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.25dB |
Return loss | ≥55dB | ≥55dB | ≥60dB | / |
Wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
Ferrule Concentricity | ≤1um | ≤4um | ||
Operating Temperature | -20°C to +70°C | |||
Storage Temperature | -40°C to +85°C | |||
Ordering Information
PART NO. | DESCRIPTION |
G519-731 | FC/UPC Singlemode Simplex 3.0mm Fiber Optic Connector |
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
