YTO tractor NLX804 80HP Tractor 4WD 80HP wheel Tractor

Categories Agriculture Farm Tractor
Brand Name: YTO
Model Number: NLX804
Certification: ISO
Place of Origin: China
MOQ: 1
Price: USD14400
Payment Terms: L/C,, T/T, Western Union
Supply Ability: 50
Delivery Time: 45Days
Size: 4350x2170x2740mm
Tire: 11.2-28 / 13.6-38
Wheelbase: 2314mm
Min. ground Clearance: 430mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

YTO tractor NLX804 80HP Tractor 4WD 80HP wheel Tractor




The Introduction of YTO NLX804 80HP Tractor 4WD 80HP Small wheel Tractor


YTO-NLX804 wheeled tractor is high power vehicles with advanced international technologies in its development, featuring excellent performance, attractive appearance, wide vision, and strong adaptability. They have found wide applications in farming and transportation.
Powerful and green engine;
With European technologies, the transmission system can have synchronizer installed for non-stop and smooth gear shifting, thus improving the working efficiency.
Independently operated double-acting clutch easy to operate;
Independently operated LUK double-acting clutch, which is easy to operate, reliable and durable;
Pedal-operated hydraulic disc service brake saves effort in operation. The parking brake operated by the handle is safe and reliable.




Model

YTO-NLX804

Tractor

Type

4x4

Overall dimensions (LxWxH) (mm)

4350x2170x2740

Wheelbase (mm)

2314

Min. ground clearance (mm)

430

Min. operating mass (with safety stand) (Kg)

3675

Tyre spec. front / rear

11.2-28 / 13.6-38

Wheel tread, front / rear

1630-1960 / 1500-2100

Steering

Full hydraulic

Brake

Oil immersed, disk type

Diesel engine

Model

LR4B5-23

Type

Four cylinder, vertical, water cooled, four stroke, direct injection combustion

Displacement (L)

4.95

Rated power / speed (Kw) / (r/min)

58.8 / 2300

Max. torque (N.m) / speed (r/min)

270 / 1500-1700

Bore x stroke (mm)

108 x 125

Transmission

Gear shift, forward / backward

12 / 4

Speed range (Km/h), forward / backward

1.63-26.82 / 4.23-12.69

PTO power (Kw)

50

PTO rotation speed (r/min)

540 / 720 or 540 / 1000

Clutch

11-inch, dry, double action

Implement

Three-point linkage category

Three-point linkage category II

Tilling depth control mode

Combined draft, position control and floating control

Lifting force (KN)

16

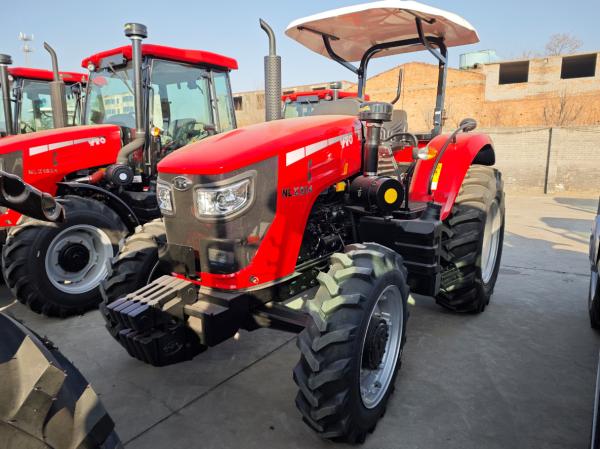

The Picture of YTO NLX804 80HP Tractor 4WD wheel Tractor
