LMV311 High Speed API Centrifugal Pump Vertical Integrally Geared
Pumps
The LMV311 High-Speed Vertical Centrifugal Pump is the ideal
solution for vertical pumping applications. For 18 years, Sunstrand
Fluid Handling has been dedicated to precision pumping solutions
for difficult and critical applications.
Our LMV311 series is a vertical, integral gear-driven high-speed centrifugal pump,
specifically designed for low-flow, high-head duties in oil & gas, petrochemical, and chemical industries.
Leveraging nearly two decades of application experience, we deliver
not only API 610 (OH6) compliant hardware but also optimized fluid
handling solutions derived from thousands of real-world cases.
| Parameter | Value |
|---|
| Design Code | API 610 (OH6) |
| Industry Experience | 18 years of manufacturing & application |
| Max. Flow Rate | 91 m³/h (400 gpm) |
| Max. Head | 1,828 m (6,000 ft) |
| Power Rating | Up to 235 kW (315 hp) |
| Temperature Range | -130°C to 340°C |
Core Features
1. Industry-Leading Manufacturing Experience (18 Years)
Over the past 18 years, Sunstrand Fluid Handling has delivered more
than 20,000 centrifugal pump systems worldwide. We understand the specific demands of various process
fluids - from LPG to highly corrosive chemical intermediates -
regarding mechanical seals and wetted parts. This application
knowledge is the foundation of our product reliability.
2. Full API 610 Compliance
Every LMV311 is manufactured in a controlled environment. The
integral speed-increasing gearbox is precision-ground to ensure low
vibration levels and extended bearing life at high rotational
speeds, fully meeting API 610 requirements for heavy-duty services.
3. Optimized Hydraulic Design (Low NPSHr)
For low suction pressure or high-vacuum conditions, Sunstrand
offers a high-performance inducer option. Combined with our 18 years of CFD experience, this inducer
effectively reduces the Net Positive Suction Head required (NPSH3) by more than 50%, preventing performance loss due to cavitation.
Typical Applications
Leveraging 18 years of delivery experience, the LMV311 is active in
the following key process services:
- Petroleum Refining: High-pressure recycle in hydrocrackers, vacuum tower overhead
reflux.
- Natural Gas Processing: Amine circulation in molecular sieve dehydrators, LNG unloading
and peak-shaving.
- Fine Chemicals: Continuous feed to high-pressure catalytic reactors, high-pressure
recovery of expensive solvents.
- Fertilizers & Agrochemicals: Carbamate solution circulation, high-pressure ammonia injection.
- Power Generation & Boilers: Small high-pressure boiler feedwater, hot-well circulation
make-up.
- Polysilicon / High-Purity: High-purity chemical transfer and cryogenic circulation.

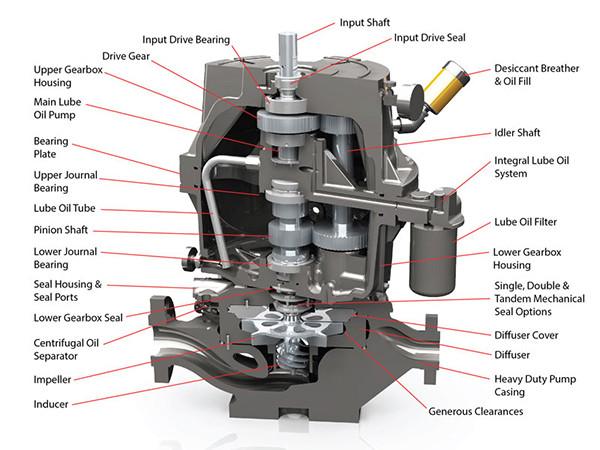

Performance and Cutaway
Packing and Shipping
Product Packaging:
- One LMV311 High-Speed Vertical Centrifugal Pump
- User manual and installation instructions
- Safety instructions and warnings
Shipping:
- Ships within 6 months
- Shipping weight: 75kgs
- Shipping dimensions: 120*80*100cm (depend each pump)
- Shipping carrier: UPS or FedEx or Cargo
- Shipping options: Standard or expedited
Frequently Asked Questions
Q1: What is the main advantage of the LMV311 over conventional
multistage centrifugal pumps?
The main advantages are simplicity and footprint efficiency. By using an integral gearbox for single-stage high-speed
operation, the LMV311 achieves the same head that would require
multiple stages in a conventional pump. This results in a footprint
reduction of over 50% and significantly fewer wearing parts (e.g.,
bearings and seals), leading to lower maintenance costs.
Q2: How does Sunstrand ensure high-speed reliability of the LMV311?
Reliability comes from our 18 years of manufacturing expertise. We
apply precision dynamic balancing to the high-speed rotor train and
use heavy-duty bearings compliant with API 610. Furthermore, every
pump undergoes full vibration spectrum analysis prior to shipment, ensuring vibration levels well below industry
standards at rated speed.
Q3: Can the LMV311 handle fluids with small amounts of solid
particles?
The LMV311 is primarily designed for clean fluids. However, for
special services, Sunstrand offers multiple hardened material
options (e.g., tungsten carbide coating) and special mechanical
seal flush plans (e.g., API Plan 32 or 53). We recommend providing
the fluid composition during selection. Our engineers will match
the best solution based on our 20,000-unit delivery database.
Q4: What solution do you offer for low NPSHa conditions?
We offer a dedicated inducer option. By optimizing the pressure distribution at the impeller
eye, the NPSHr can be reduced to a very low level, effectively preventing
cavitation and extending pump life.
Alternative to Sundyne LMV 341 High Speed Vertical Centrifugal Pump API 610 Oh6 Integrally Geared Pump
