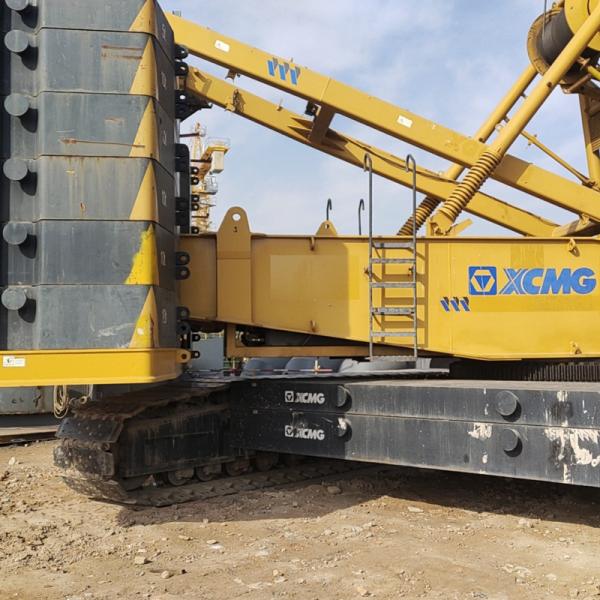

Well Maintained Used Crawler Crane Equipment / Mobile Crawler Crane 1.5 Km/H Travel Speed

XGC350t Crawler Crane Technical Specifications

Crawler crane models: XGC350
Max rated lifting capacity: 350t
Max lifting moment: 2400t.m

Typical working conditions

Main boom working conditions_Characteristics of main boom hook with boom end pulley auxiliary hook (HBS/1)

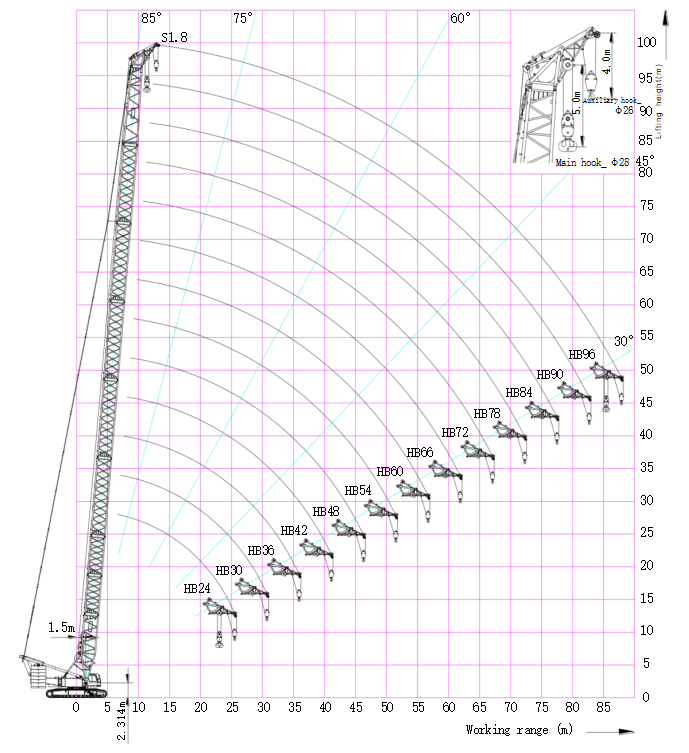

Main boom working condition_Working range of main boom main hook with arm end pulley auxiliary hook (HBS/1)

Main boom working condition_with arm end pulley auxiliary hook HBS/1_135t+50t main boom main hook performance (optional)

HBS/1	Main boom length(m)
Radians	24	30	36	42	48	54	60	66	72	78*	84*	90*	96*
(m)	t	t	t	t	t	t	t	t	t	t	t	t	t
6	300.0
7	300.0	300.0	268.0	242.0
8	295.0	292.0	262.0	238.0	209.0	182.0
9	263.0	258.0	238.4	223.5	205.8	180.8	168.8	152.0
10	237.0	226.8	211.6	205.2	186.8	179.2	164.4	148.8	136.8	126.8
11	201.8	197.8	189.4	180.8	171.8	162.2	155.2	148.1	132.7	120.4	108.8	92.8
12	176.8	174.8	170.2	161.0	154.1	147.6	141.6	135.9	130.4	121.8	103.8	88.8	78.8
13	156.8	154.3	153.0	146.8	140.8	135.3	130.0	125.0	120.1	115.5	100.4	86.8	75.8
14	143.8	139.1	136.9	134.8	129.6	124.7	119.9	115.5	111.1	107.0	99.9	85.2	73.8
15	126.8	125.3	123.6	123.5	119.8	115.4	111.1	107.2	103.3	99.5	95.9	84.4	73.1
16	115.8	113.8	112.4	112.2	111.2	107.4	103.5	99.8	96.2	92.9	89.5	83.5	72.3
17	105.8	103.8	102.9	102.8	102.3	100.2	96.6	93.3	90.0	87.0	83.8	81.4	71.6
18	97.8	96.0	94.7	94.5	94.1	93.7	90.5	87.5	84.4	81.6	78.7	76.6	70.7
19	91.8	88.9	87.6	87.5	87.0	86.5	85.0	82.2	79.3	76.7	74.0	72.1	69.6
20	84.8	82.7	81.3	81.1	80.7	80.3	79.8	77.5	74.7	72.3	69.7	67.8	65.6
22	74.3	72.3	70.9	70.7	70.2	69.8	69.2	68.8	66.8	64.6	62.3	60.6	58.5
24		62.9	62.6	62.4	61.8	61.4	60.7	60.3	59.6	58.1	56.0	54.5	52.6
26		56.0	55.6	55.4	54.9	54.4	53.8	53.3	52.7	52.2	50.5	49.2	47.4
28		50.1	49.8	49.6	49.1	48.7	48.0	47.5	46.9	46.4	45.7	44.5	42.6
30			45.3	45.1	44.5	44.1	43.5	42.9	42.3	41.8	41.1	40.3	38.9
32			40.7	40.6	39.9	39.5	38.9	38.3	37.7	37.2	36.5	36.0	35.1
34				37.3	36.7	36.2	35.6	35.1	34.4	33.9	33.2	32.7	31.9
36				34.1	33.5	33.0	32.4	31.8	31.2	30.7	30.0	29.5	28.7
38				30.8	30.3	29.7	29.1	28.6	27.9	27.4	26.7	26.2	25.5
40					27.9	27.3	26.7	26.2	25.5	25.0	24.3	23.8	23.1
42					25.4	24.9	24.3	23.7	23.0	22.5	21.8	21.3	20.6
48						19.3	18.7	18.1	17.4	16.9	16.2	15.7	15.0
50							17.2	16.7	16.0	15.5	14.8	14.3	13.5
52							15.8	15.2	14.5	14.0	13.3	12.8	12.1
54							14.3	13.8	13.1	12.6	11.9	11.4	10.6
58								11.5	10.8	10.3	9.5	9.0	8.2
64									7.8	7.3	6.6	6.1	5.3
68										5.7	4.9	4.3	3.6
74											2.7

Notes:
1. The actual load must be deducted from the values in the table by the weight of the hook, sling and wire rope wrapped around the hook and the boom head.
2. The main boom length "*" mark combination must use a 1.31m waist rope, and the main boom length exceeding 78m must use an inclined wedge to assist the boom.
3. The tower arm rear pull plate must be removed from each boom section, and the tower arm guide pulley must be removed from the main boom reducer.

Main boom working condition_Characteristics of boom end pulley auxiliary hook with main boom main hook (HBS/2)

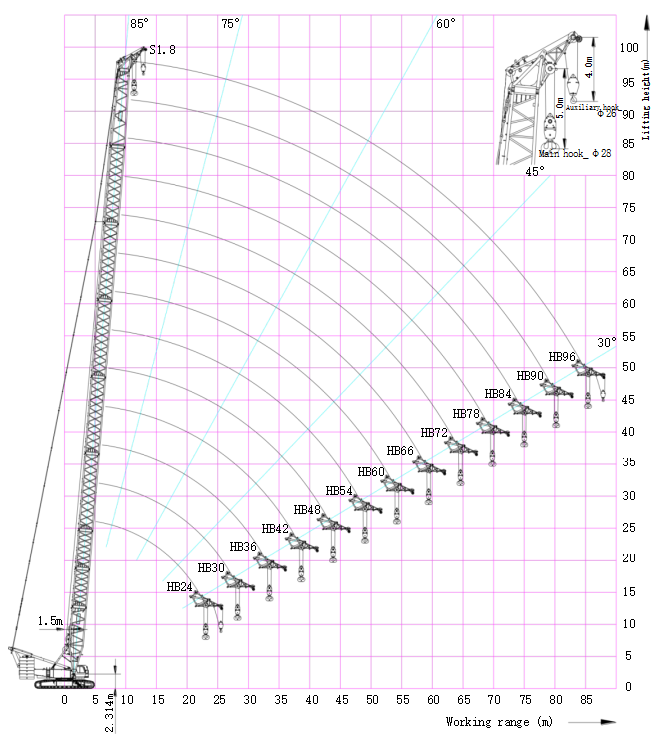

Main boom working condition_working range of boom end pulley auxiliary hook with main boom main hook (HBS/2)

Main boom working condition_with main boom main hook HBS/2_130t+50t arm end pulley auxiliary hook performance

HBS/2	Main boom length (m)
Radians	24	30	36	42	48	54	60	66	72	78*	84*	90*
(m)	t	t	t	t	t	t	t	t	t	t	t	t
7	28.0
8	28.0	28.0	28.0
9	28.0	28.0	28.0	28.0	28.0
10	28.0	28.0	28.0	28.0	28.0	28.0	28.0
11	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
12	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
13	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
14	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
15	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
16	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
17	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
18	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
19	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
20	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
22	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
24		28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
26		28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
28		28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
30			28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
32			28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
34				28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0	28.0
36				28.0	28.0	28.0	27.9	27.6	27.2	26.9	26.6	26.4
38				28.0	28.0	28.0	27.7	27.1	26.4	25.8	25.1	24.7
42					24.0	23.6	23.0	22.5	21.8	21.2	20.4	19.9
44						21.8	21.2	20.7	20.0	19.4	18.6	18.1
48						18.2	17.5	17.0	16.3	15.8	15.1	14.6
50							16.1	15.6	14.9	14.4	13.7	13.2
54							13.3	12.8	12.1	11.6	10.9	10.4
58								10.5	9.9	9.4	8.6	8.1
64									6.9	6.5	5.7	5.2
68										4.9	4.1	3.6

Product Tags:


*From:	Your email address is incorrect!
*To:	Shandong Tengfei Hoisting Engineering Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	350T Crawler Crane
Brand Name:	XCMG
Model Number:	XGC350
Place of Origin:	China
MOQ:	One Crane
Price:	Negotiable Price
Payment Terms:	L/C,T/T
Supply Ability:	Supply According to Customer Needs
Delivery Time:	According to Order Confirmation
Packaging Details:	Packing According to Customer Requirements
Max Line Speed:	120 m/min
Max Gradeability:	30%
Max Line Pull:	350 kN
Engine Power:	450 kW
Boom Length:	18-102 meters
Control System:	PLC
Safety Features:	Load moment limiter, anti-two block system, emergency stop
Track Shoe Width:	800 mm
Max Travel Speed:	1.5 km/h
Capacity:	350 tons
Fuel Tank Capacity:	1000 liters
Counterweight:	100 tons
