| Categories | Bulletproof Equipment |
|---|---|
| Model NO.: | armor plate-1 |
| Trademark: | CHINA XINXING |
| Origin: | China |
| Port: | Shanghai, China |
| Supply Ability: | 50000 PCS Per Month |
| Payment Terms: | L/C, T/T |
| Type: | Plate |
| Usage: | Military, Police, Tactical |
| Hardness: | Hard |
| Material: | Alumina |
| Transport Package: | Paper Carton |
| Specification: | 25*30cm, thickness around 2.2 mm |
| Price: | 50-499 Pieces / US $45 | 500-999 Pieces / US $44 | 1,000+ Pieces / US $43.5 |

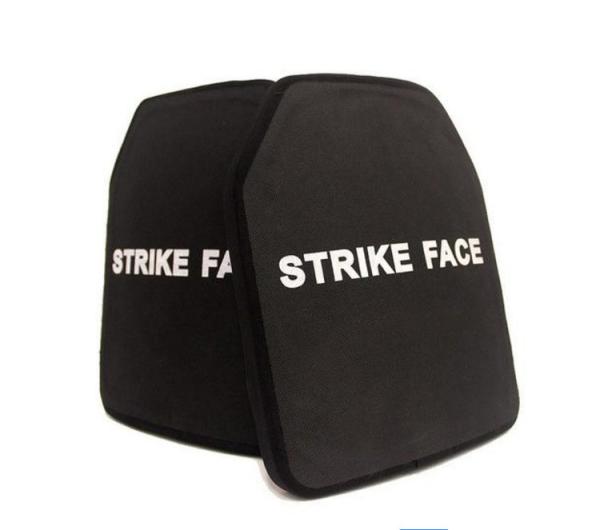

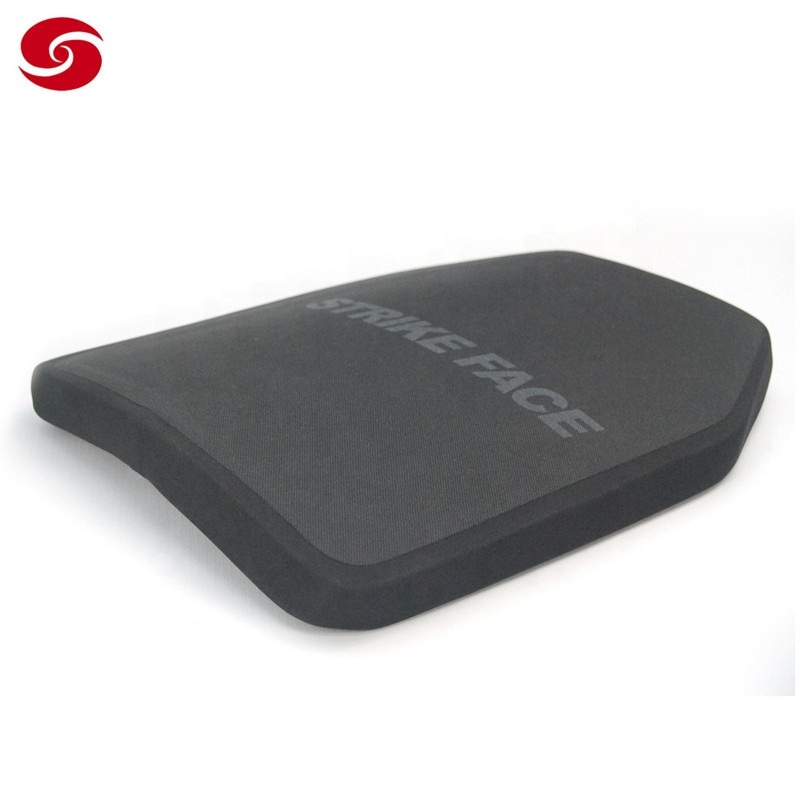

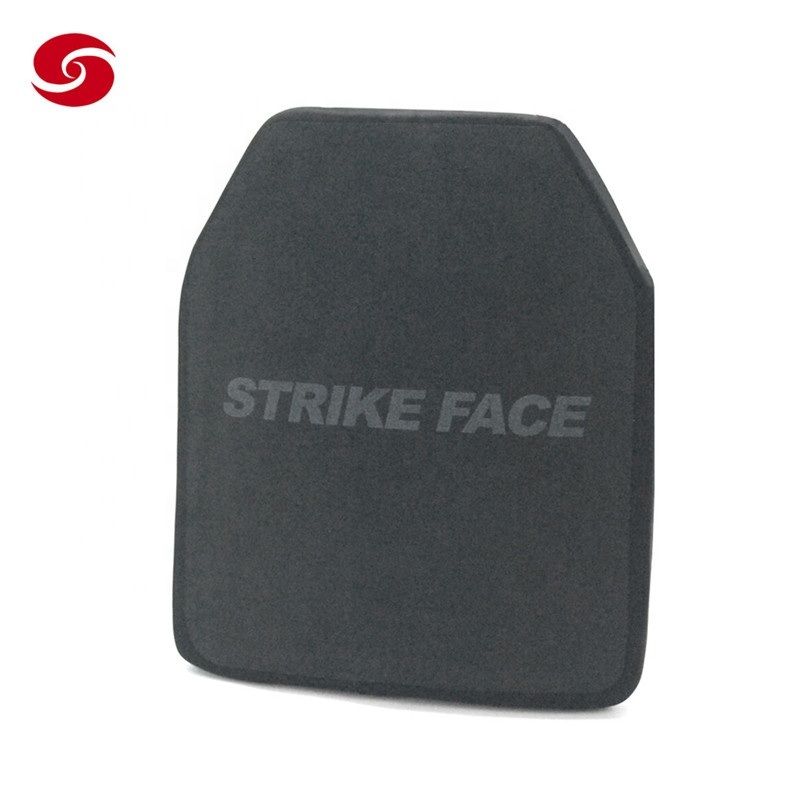

The bulletproof Plate is a kind of composite of fiber and ceramic, the strike face is the ceramic and the backing material is a kind of thermal forming by the polymer material and thermosetting resin. We have bulletproof plates in different levels, with various specification and materials according to different requirements of customers, such as single curve bulletproof chest plates,multi-curve bulletproof chest plate and bulletproof side plates. Ballistic plates are most commonly found in the front, rear, and side pockets of a ballistic vest or plate carrier and positioned around the chest, back, and sides of the abdomen respectively.
| Material | PE+SIC; PE+Aluminum |
| Weight | 1.4-2.9kg |
| Portection Level | NIJ |
| Color | Black |
| Size | 250*300 mm or customized |
NIJ Ballistic Standard
Armor Type | Bullet | Bullet Mass | Conditioned Armor Test Velocity | Distance | Max BFS Depth | Angle Test (°NATO) | Shot per panel |
IIA | 9mm FMJ RN | 8.0 g (124 gr) | 355m/s (1165 ft/s) | 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 |
.40S&W FMJ RN | 11.7g (180 gr) | 325 m/s (1065 ft/s) | 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 | |
II | 9mm FMJ RN | 8.0 g (124 gr) | 379 m/s (1245 ft/s) | 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 |
357 Magnum JSP | 10.2 g (158 gr) | 408 m/s (1340 ft/s) | 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 | |
IIIA | .357 SIG FMJ FN | 8.1 g (124 gr) | 430 m/s (1410 ft/s) | 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 |
.44 Magnum SJHP | 15.6 g (240 gr) | 408 m/s (1340 ft/s) | 5m | 44mm (1.73 in) | 0° 4X 30°& 45°2X | 6 | |
III | 7.62mm NATO FMJ | 9.6 g (147gr) | 847 m/s (2780 ft/s) | 15mm | 44mm (1.73 in) | 0°6X | 6 |
IV | .30 Calier M2 AP | 10.8 g (166 gr) | 878 m/s (2880 ft/s) | 15mm | 44mm (1.73 in) | 0°1 to 6X | 6 |

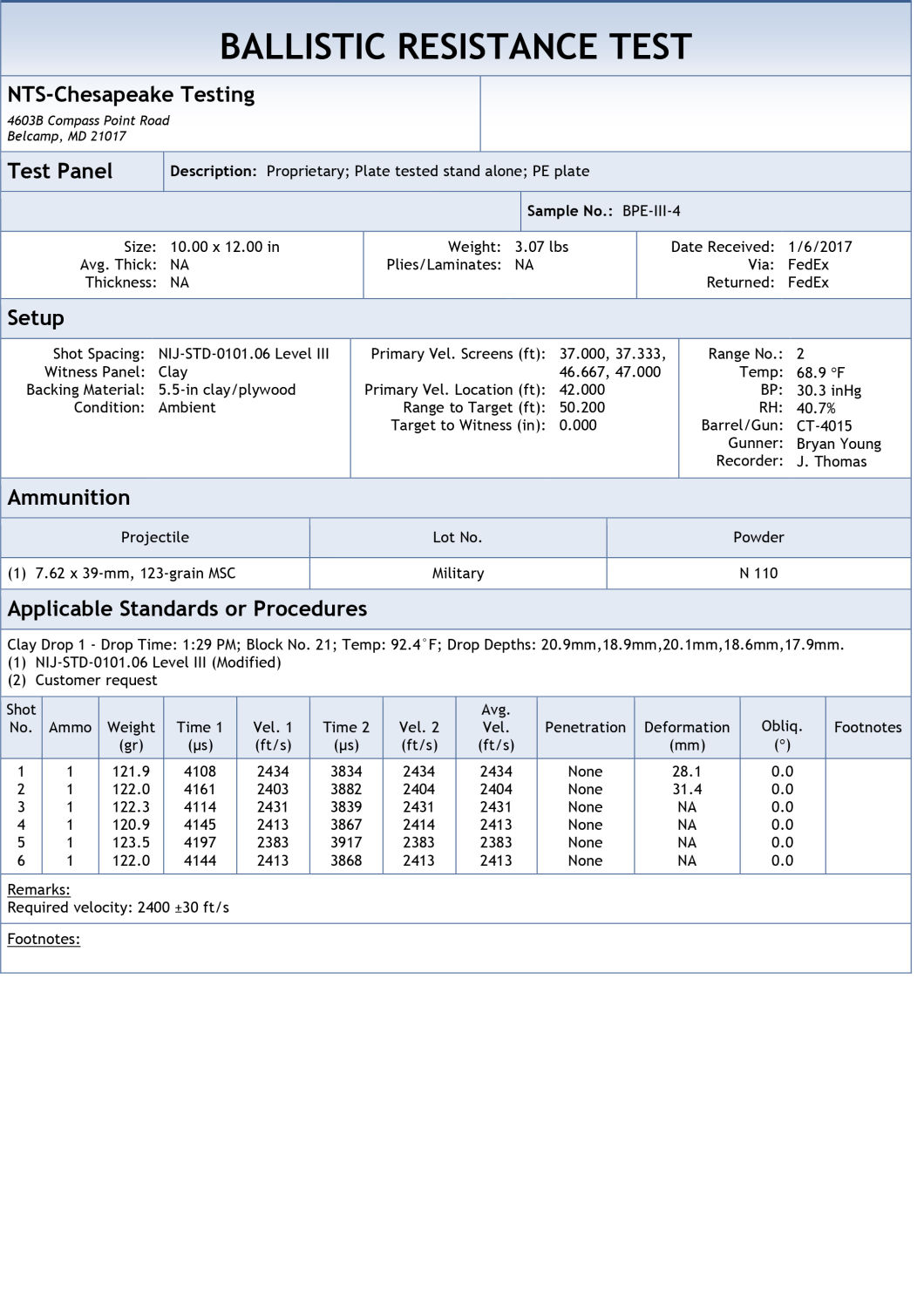

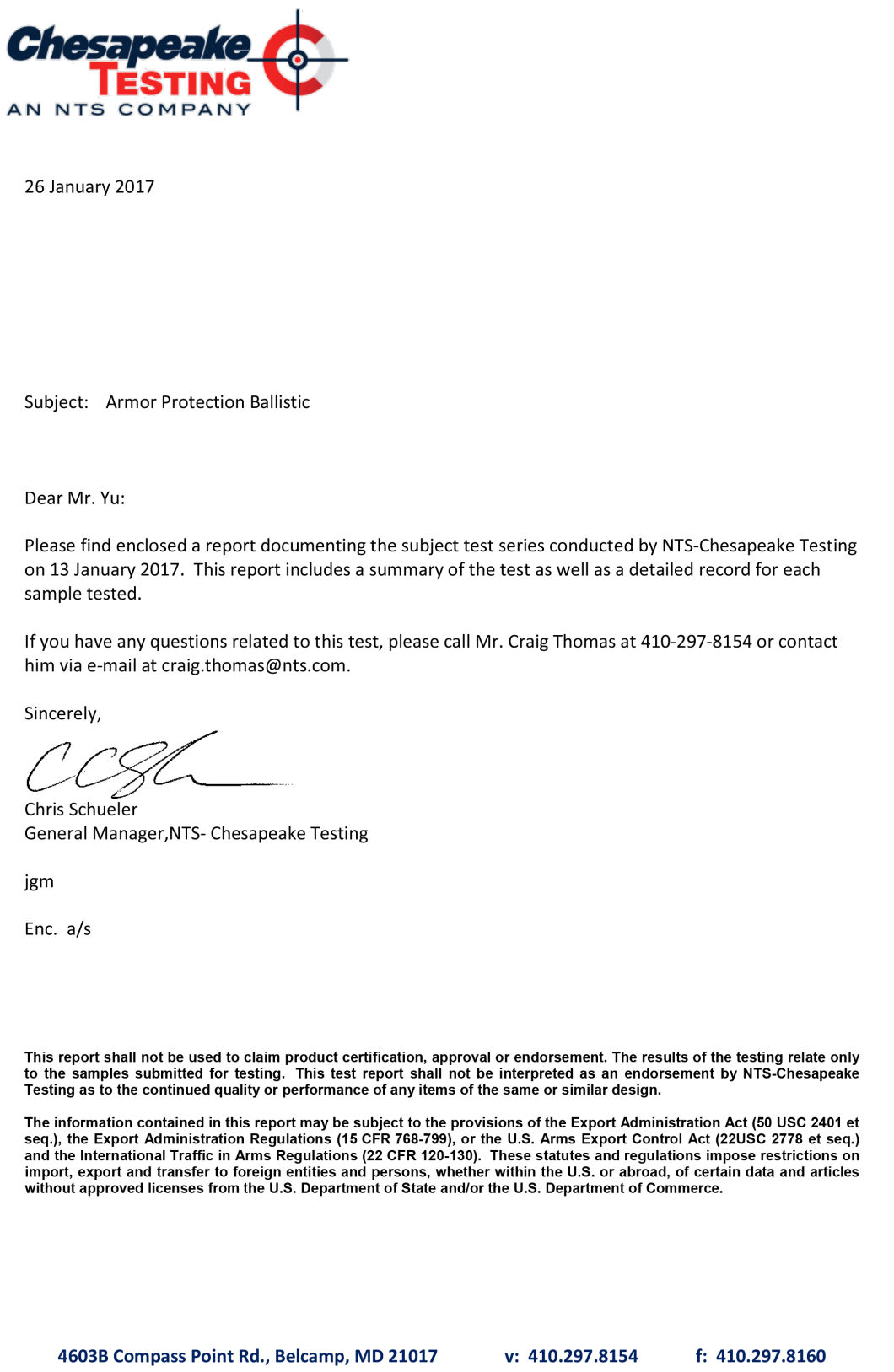

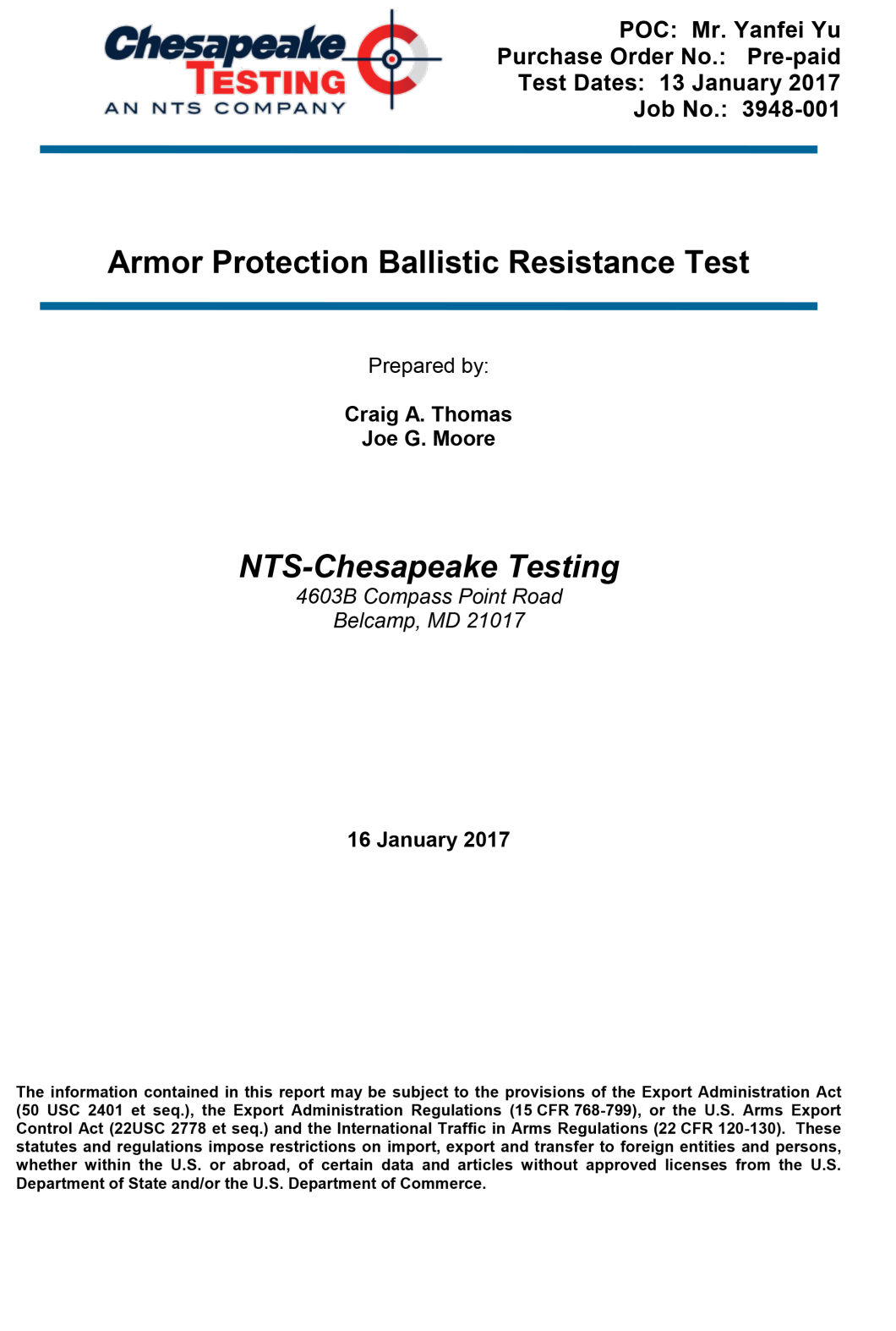

Test Report
|
