Plastic PE Water Pipe Cable Conduit Making Machine Tube Extrusion
Production Machine Line
Our advanced Plastic PE Tube Extrusion Machine Line is engineered
for high-efficiency manufacturing of PE water pipes, cable
conduits, and protective tubing with superior precision and
durability. This fully automated production line integrates
cutting-edge extrusion technology to ensure consistent wall
thickness, smooth surfaces, and excellent mechanical properties.
Application
Designed for high-efficiency manufacturing of PE water pipes, cable
conduits, and protective tubing with superior precision and
durability.
PE Pipe Production Specifications
| Model | Pipe Diameter | Extruder | Extruder Power | Capacity |
|---|
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
Production Line Features
- High efficiency extruder designed for HDPE pipe, equipped with
high-speed, low-noise reducer
- Feeding section with cooling unit and reversing spiral groove
- Different pitch undulant screw for great output, lower melting
temperature, and reduced energy consumption
- Distributed spiral composite extrusion die-head ensures even
melting pressure and stable flux
- Produces pipes with smooth, glossy surfaces

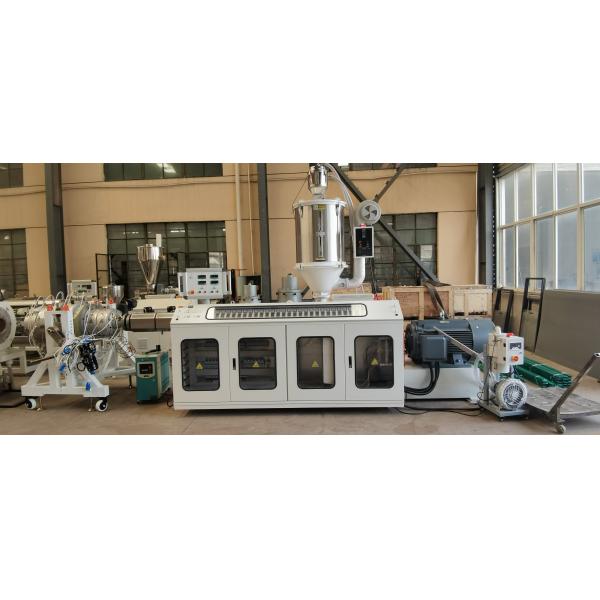

PE Pipe Production Line Components
Raw material + master batches → mixing → vacuum feeder → material
dryer → single screw extruder (small CO-extruder) → mould → vacuum
calibration tank → spray cooling tank (water tank) → haul-off unit
→ cutting machine → stacker

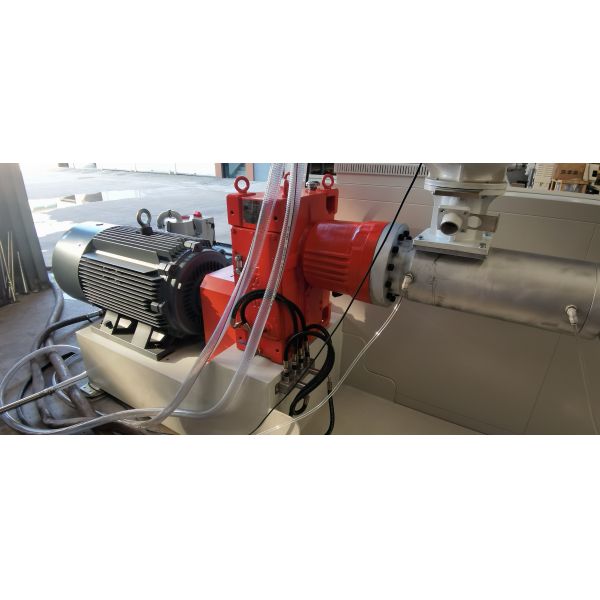

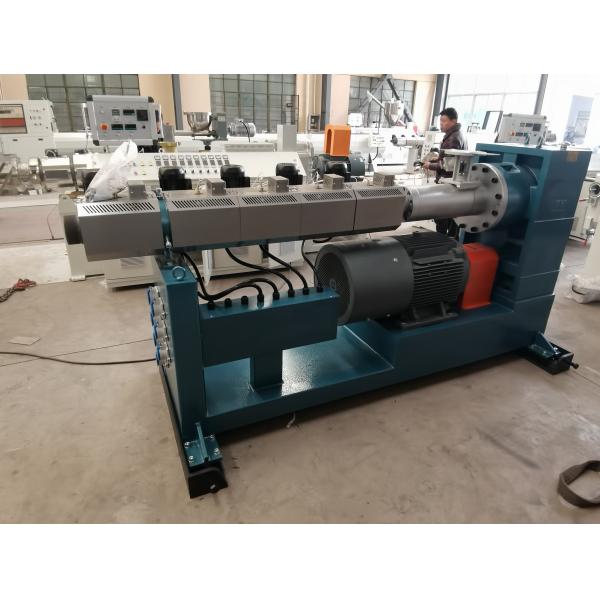

Single Screw Extruder Machine
Utilizes high-efficiency single screws specially designed for PP
and PE granule material to ensure uniform plasticization and high
extrusion. Stable temperature controlling system guarantees
high-quality pipe extrusion.
Pipe Extrusion Mould
Spiral type die head ensures high-speed extrusion and prevents
thermal decomposition of amorphous plastics, resulting in
high-quality pipes. Features internal heating control system for
efficient, easy extrusion. Bronze calibrators enable fast pipe
calibration and cooling.
Vacuum Cooling Tank and Spraying Cooling Tanks
Rapid vacuum calibrating system cools hot extruded pipes quickly to
obtain final pipe diameter. Automatic temperature control system,
pressure regulator, and vacuum control valve enhance pipe sizing,
cooling performance, and production speed.
Haul Off Machine
Adopts crawler track type with various claw configurations
(two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw,
twelve-claw) suitable for different pipe sizes. Abrasion-resistant
rubber track blocks ensure high, stable hauling speed.
Cutting Machine
Precision machine cutter makes flat, straight cuts at high speed.
Powerful suction device collects waste scraps for easy cleaning.
Pipe Stacker or Pipe Coiler
Automatic pipe stacker for packing pipes; pipe coiler for small PE
pipes (16-40mm, 16-75mm, 50-110mm).
Key Advantages of PE Pipe Extrusion Line
- Advanced extrusion technology ensures stable, high-speed production
with consistent pipe quality
- Precision-controlled screw and die design guarantee uniform wall
thickness and pipe dimensions
- Optimized heating/cooling systems reduce energy consumption
Pre- and After-Sale Services
- Extensive industry experience and consistent focus on highest
quality
- Complete twin pipe vacuum sizing system
- Controlled independently unitary structure twin pipe hauling
mechanism and synchronous cutting device
- Optional length set and accurate adaption stacker
- Highly motivated team with sophisticated process technology
- Customized solutions for specific requirements
