Weartech Wt-12 Welding Hard Facing Electrode Cobalt Based Alloy For Cutting Bearing Bushes

Categories Hard Facing Electrode
Brand Name: WL-ALLOTECH
Model Number: stellite 12 Electrode
Place of Origin: China
MOQ: 5kg
Payment Terms: L/C, T/T
Supply Ability: 300 tons per month
Delivery Time: within 10 days
Packaging Details: 5kg each vacuum packing, a carton 4 packs a total of 20kg
Price: Negotiable
Shape: Electrode
Certificate: ISO 9001
Hardness: 45-51 HRC
Dimensions: 3.2-6.0mm
Density: 8.53 g/cm3
Melting Range: 1200-1365 ºC
Test Report: Mill-certificate
Product name: Cobalt Base Electrode
AWS / ASME: A5.13 / SFA5.13 ECoCr-B
Material: Co Cr W C Ni Mo Fe Si Mn
Equivalent: Stellite 12, BISHILITE (MHA) No.12, Weartech WT-12, Stoodite 12, POLYSTEL 12
Application: industrial knives for cutting carpets, plastics, etc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Weartech Wt-12 Welding Hard Facing Electrode Cobalt Based Alloy For Cutting Bearing Bushes

Weartech Wt-12 Welding Electrode - Cobalt Based Alloy Hard Facing Electrode Used For Cutting Bearing Bushes

Product Description

WL-Co12 could be considered an intermediate alloy between WL-Co6 and WL-Co1. It contains a higher fraction of hard, brittle carbides than WL-Co6, and has increased resistance to lowangle erosion, abrasion, and severe sliding wear whilst retaining reasonable impact and cavitation resistance. WL-Co12 is often used self-mated or running against WL-Co6 or WL-Co1. The higher tungsten content provides better hightemperature properties compared to WL-Co6, and it can be used at temperatures up to about 700˚C.

WL-Co12 is typically used for cutting tools that need to withstand abrasion, heat and corrosion. Examples include industrial knives for cutting carpets, plastics, paper and synthetic fibres; and saw tips in the timber industry. It is also used for control plates in the beverage industry, pump vanes, bearing bushes and narrowneck glass mold plungers; and for hardfacing of engine valves, pinch rollers in the metal-processing industries, and rotor blade edges.
Used in the work of 650 degrees Celsius should be able to maintain good wear resistance and a certain degree of corrosion resistance of the occasion; for example, the high temperature and high pressure welding valve and hot shear knife, the impact of hot and cold staggered place.


Common Names: Stellite 12, BISHILITE (MHA) No.12, Weartech WT-12
Standard:AWS / ASME: A5.13 / SFA5.13 ECoCr-B


Chemical Composition(%)

Co

Cr

W

C

Ni

Mo

Others

Bal.

27-32

7.5-9.5

1.4-1.7

<3.0

<1.0

Fe, Si, Mn



Physical Properties​

Hardness

DensityMelting Range
45-51 HRC8.53 g/cm31200-1365 ºC

Specification

AWS / ASME: A5.13 / SFA5.13 ECoCr-B

Metal to metal WearExcellent
Cold / Hot AbrasionExcellent / Excellent
Erosion / CorrosionExcellent / Excellent
ImpactGood
MagneticNo
Deposit Layers
2 Max
Thermal Conductivity14.6 W/m.K, 100 Btu-in/hr/ft2/°F
Electrical Resistivity
98 µ-ohm.cm, 38.6 µ-ohm.inch

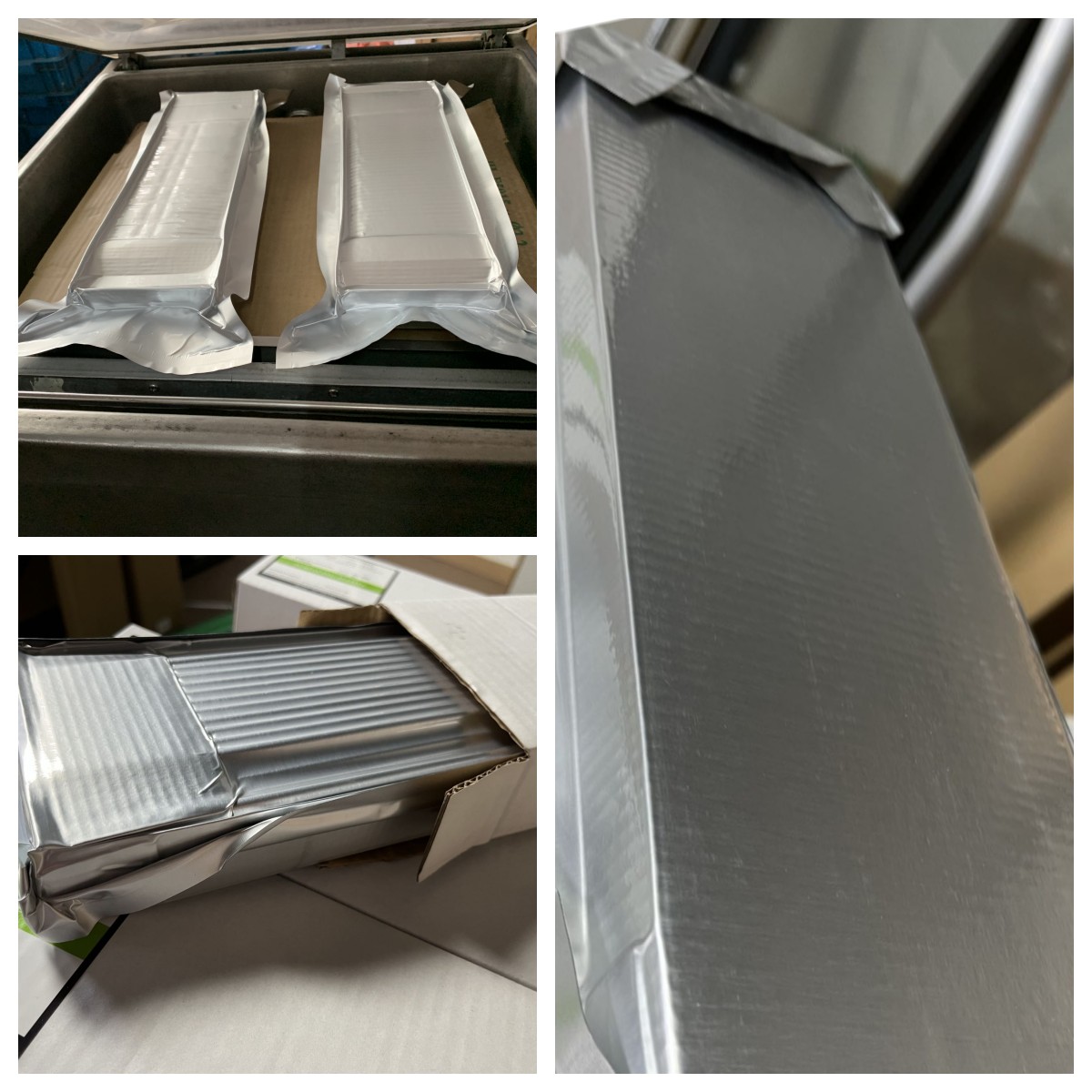

Packing Details

For length 350mm 5kg per Vacuum Pack, 1 Vacpak inside a Carton

a carton 4 packs a total of 20kg, then put them in wooden boxes or trays.

Packaging details can also be customized according to customer requirements.


Applications

It is used for industrial knives for cutting carpets, plastics, paper and synthetic fibres; and saw tips in the timber industry, control plates in the beverage industry, pump vanes, bearing bushes and narrowneck glass mold plungers; and for hardfacing of engine valves, pinch rollers in the metal-processing industries, and rotor blade edges.


Type We Could Offer

TrademarkNominal Chemical CompositionHRCApplicationReference Standard
CCrSiWNiFeMnMoCoothers
WL Co12.130.01.014.0≤3.0≤5.0≤2.0≤1.0Bal.<1.048-54Valve seat insets, bearing, sawteeth, rotary ring, Pump SleevesStellite 1, ECoCr-C
WL Co61.029.01.04.5≤3.0≤5.0≤2.0≤1.0Bal.<1.038-44Engine valve, high temperature valve, turbine bladeStellite 6, ECoCr-A
WL Co121.430.01.48.5≤3.0≤5.0≤2.0≤1.0Bal.<1.044-50Pressure valves, sawteeth screw fightsStellite 12, ECoCr-B
WL Co210.228.01.0≤3.0≤5.0≤2.05.5Bal.<1.020-40Fluid valve seat, turbine blades, hot forging dieStellite 21, ECoCr-E
WL Co250.1520.01.014.010.0≤5.0≤2.0≤1.0Bal.<1.022-40High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc.Stellite 25
