| Categories | Thermal Spray Wire |
|---|---|
| Brand Name: | WL-ALLOTECH |
| Model Number: | Cr2O3 ceramic rod |
| Place of Origin: | China |
| MOQ: | 5kg |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 tons per month |
| Delivery Time: | within 10 days |
| Packaging Details: | 10 tubes per wooden box |
| Price: | Negotiable |
| Product Name: | Cr2O3 ceramic rod |
| Deposit Efficiency: | 51%~55% |
| Total porosity: | <8% |
| Bulk Density: | 4.5g/cc |
| Hardness: | HV1100 |
| Melt Temperature: | 2800°C |
| Dimensions: | φ6.3×605mm |
| raw material: | Cr2O3,Al2O3,SiO2,Fe2O3,MgO |
| certificate: | ISO 9001 |
| Test Report: | Mill-certificate |
| Color: | black gray |
| Weight: | 53g |
| Company Info. |
| Changzhou WL Allotech Material Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

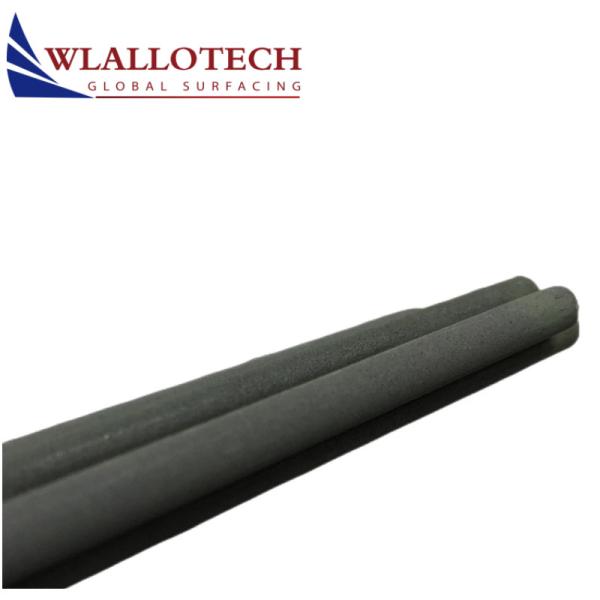

Cr2O3 Ceramic Rod Thermal Spray Pump Components Rotating Equipment Numerous
Product Description
Chromium oxide ceramics is a very wear-resistant precision ceramic material with excellent wear resistance, excellent resistance to mechanical friction, high chemical resistance and other characteristics are widely used in the pump assembly, rotating equipment, and many other components.
Surface Preparation
Surface should be clean, white, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning.
Chemical Composition(%)
| Grade (%) | AI2O3 | SiO2 | Cr2O3 | Fe2O3 | MgO |
Cr2O3 ceramic rod | 3.06 | 5.57 | 91.01 | 0.24 | 0.12 |
Typical Physical Properties
| Deposit Efficiency | Total porosity | Bulk Density | Coating Hardness | Melt Temperature |
51%~55% | <8% | 4.5g/cc | HV1100 | 2800 °C |
Packing Details
| Diameter | Dimension Tolerance | Packing | Wire Weight |
| 3/16"(4.763mm) | 0/±0.0012"(±0.03mm) | Tube | 80 |
| 1/4" (6.35mm ) | 0/±0.0012"(±0.03mm) | Tube | 50 |
| 10 tubes per wooden box | |||
Applications
· Pump components
· Rotating equipment
· Numerous
Type We Could Offer
ceramic rod
WL TYPE | Application |
Al2O3 ceramic rod | sealing parts, valve seats |
| Cr2O3 ceramic rod | pump components |
ZrO2 ceramic rod | thermal insulation ring |
Al2O3 TiO2 | mechanical seal ring |
|
