Brand Name: | FESTO |
Model Number: | CK-1/8-PK-4 |
Place of Origin: | China |
MOQ: | 1 PCS |
Price: | EXW USD1-2 |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 100 pcs per week |
Delivery Time: | 5-7 working days |
Packaging Details: | carton,OPP bag |
Order no: | 2027 |
Brand: | FESTO |
Specifications: | CK-1/8-PK-4 |
Nominal size: | 2.9 mm |
Size of pack: | 10 |
Design: | Straight design |
Company Info. |
FLY AUTOMATION |
Verified Supplier |
View Contact Details |
Product List |
About product
1.Metal design .
2.Male thread with sealing ring.
3.Materials: Screwed trunnion M thread: Galvanised steel G thread: Aluminium Union nut: Aluminium.
4.Note on materials: RoHS-compliant.
5.Bulkhead quick connector.
6.Sealing cap for plastic tube fittings and barbed fittings.
7.Multiple distributor.

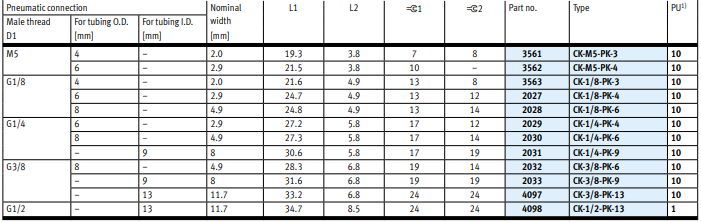

Product Technical Data
Nominal size | 2.9 mm |
Type of seal on screw-in stud | Sealing ring |
Mounting position | optional |
Design | Straight design |
Size of pack | 10 |
Note on operating and pilot medium | Lubricated operation possible |
Corrosion resistance class CRC | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C-60°C |
Pneumatic connection, port 1 | Male thread G1/8 |
Material union nut | Aluminium-Knetlegierung, eloxiert |
Material screw-in stud | Anodised wrought aluminium alloy |
Note on materials | RoHS-compliant |
![]() |
