Categories | Titanium Welded Pipe |
---|---|
Brand Name: | Changsheng |
Model Number: | Titanium Welding Tube |
Certification: | ISO9001:2015 |
Place of Origin: | Baoji, China |
MOQ: | 50kg |
Price: | USD 18.8/KG - USD 21.8/KG |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 Tons per Month |
Delivery Time: | 3-5 work days |
Packaging Details: | Soft film wrapped inside, export standard crate outside. |
Material: | Pure titanium Gr2 |
Diameter: | 6mm - 480mm |
Thickness: | 0.35mm to 10mm |
Surface: | Pickling surface |
Shape: | Round Tube |
Supply State: | Anealed |
Standard: | ASTM B338 ASTM B862 |
Application: | Reactor, Cooler, Condenser, Heat exchanger, Evaporator |
Advantage: | Good welding propertity, Ligh weight, Corrosion Resistance |
Popular size: | Ф25mm × 1mm, Ф19. 05mm × 1. 245mm, Ф16mm × 1. 2mm |
Company Info. |
Baoji City Changsheng Titanium Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |

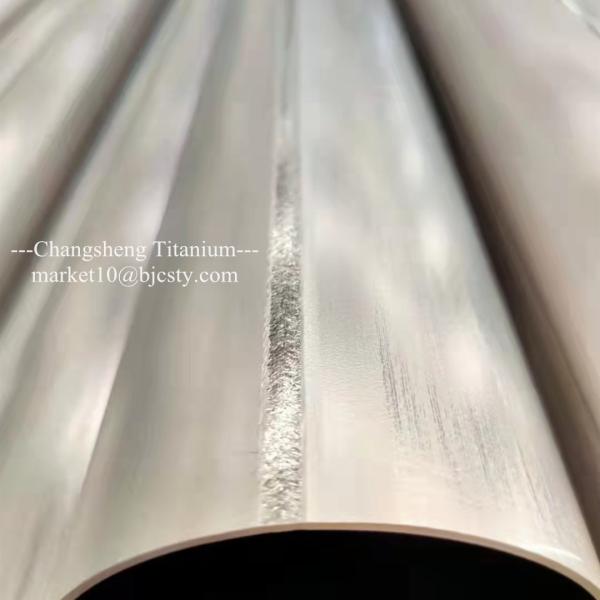

Titanium Gr2 welding tubes are the first choice for caustic soda industry. Titanium welded tube used in titanium reactor and chlorine gas cooler could prolong the equipment service life to more than 10 years, while graphite made cooler tubes can only last 2~3 years. In the chemical industry, the amount of titanium used in chiller for chlor-alkali production is up to 50%. Titanium welded pipes are widely used in power plants, food & beverage, heavy industry, marine, chemicals, oil & gas industries, vacuum salt making, automobile industry, medical & sports, paper and textile industry, electric power industry, metallurgy industry, chlor-alkali industry, fertilizer industry, seawater desalination industry.
Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling
Application: tubular heat exchanger, condenser, evaporator, distillation tower, reactor, etc,.
Item name | Titanium Grade 2 Welding Tube ASTM B338 For Shell And Tube Condensers |
Material | Gr2, pure titanium |
Type | Welded |
Standards | ASTM B338 ASTM B337 ASTM B862 |
Shape | Round tubes with plain ends |
Outside diameter | 12.7mm, 16mm, 19.05mm, 25.4mm, 38.1mm, 50.8mm, etc,. |
Wall thickness | 0.5mm/0.71mm/0.8mm/1.0mm/1.2mm/1.6mm/2.11mm,etc. |
Length | max.12m, or as per clients request |
Surface | Pickling surface |
Test | Eddy current inspection, Hydraulic test, Ultrasonic test |
ASTM Grade | Alloy composition | Tensile strength | Yield strength | Elongation % | ||
ksi | Mpa | ksi | Mpa | |||
GR1 | Unallyed Ti(Pure)35A-CP1 | 35 | 240 | 25 | 170 | 24 |
GR2 | Unallyed Ti(Pure)50A-CP2 | 50 | 345 | 40 | 275 | 20 |
GR12 | Ti-0.3Mo-0.8Ni | 70 | 483 | 50 | 345 | 18 |
