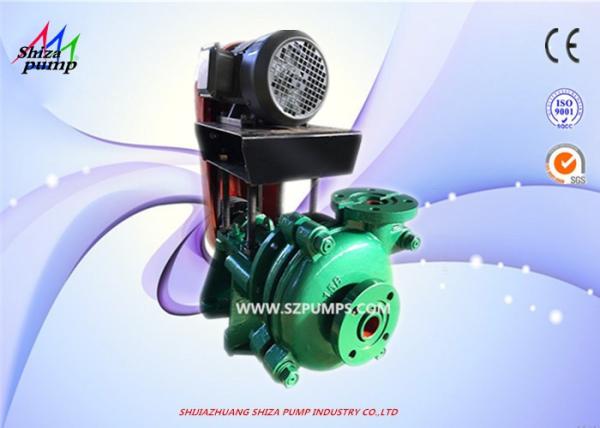

Series Wear-resistant Small Volume 1 Inch Discharge Centrifugal Slurry Pump

Series Wear-resistant Small Volume 1 Inch Discharge Centrifugal Slurry Pump

Main introduction of slurry pump

The 1.5 / 1B- slurry pump is a cantilever, horizontal and centrifugal slurry pump. This pump is a fractional series slurry pump. It is made of imported advanced technology. It has advanced design theory and excellent performance. It can be used in multiple stages in parallel. Withstand greater pressure.

The pump overcurrent parts are made of high chrome alloy and rubber.

Model meaning

1.5 / 1 B - (R)

1.5-------Suction diameter(Inch)

1---------Discharge diameter(Inch)

B---------Support type

------ Pump Model

R---------Natural Rubber

Specifications

Features

1). Cantilever, horizontal Slurry discharging pump

2). Excellent hydraulic performance, high efficiency, and low wear rate

3). Better wear-resistance and corrosive resistance

4). Frame plate for type pumps have replaceable wear-resistant metal liners or rubber liners. The impellers are made of wear-resistant metal or rubber

5). In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.

6). Centrifugal seal, mechanical seal and packing seal are available .

7). The discharge branch can be positioned at interval of 45 degrees by request and oriented to any eight positions to suit installations and applications.

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

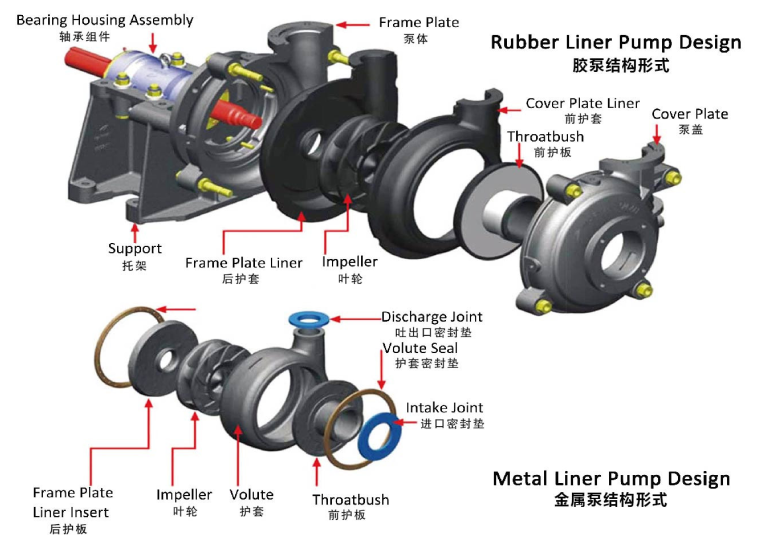

Construction Design

Shaft Seal Module Design

Performance table

Shijiazhuang ShizaPump Industry Co.,Ltd. founded in 2008, is a professional industrial pump manufacturer engaged in researching slurry pump, wear and corrosion resistant materials and OEM processing.

Shizapump group covers more than 40000 square meters, the registered capital is 18 million yuan. Over the years with strong strength and people-oriented concept, we absorb a large number of high-quality management and technical talents. Existing staff is more than 220 people, of whom 30% are technicians.

Our production area covers an area of 24000 square meters, the total production capacity of an annual output is 10000 units (sets), and the annual output of all kinds of high chromium alloy castings is 2000 tons.The production area is divided into five districts one area and two centers, namely mould casting, heat treatment, fine machining, forge welding and assembly coating of five production areas; finished spare parts; quality analysis and water experiment. The main material of products: A05, A49, A33, A51 and other high chromium white cast iron.

Shijiazhuang ShizaPump Industry Co.,Ltd. fully implements the ISO9001 management system and observes the process of inspection. Quality inspection records are available in all production processes. Professional instruments include spectrometer, metallographic analyzer, flaw detector, mechanical test machine (strain, impact, hardness), magnetic flowmeter, pressure gauge, ammeter, vibration meter, noise meter, hydraulic experimental curve of professional software. Perfect detection guarantees the quality of equipment to ensure that each pumps and parts are fully in line with the requirements.

Shijiazhuang ShizaPump Industry Co.,Ltd. has spread all domestic market in China over 30 provinces and municipality. Also has been successfully used in 20 countries in global .First line staff have professional experience to provide service for customers.
