Versatile Mechanical Lifting Devices Hoist A Beam Clamp Heavy Duty

Categories Mechanical Lifting Devices
Place of Origin: China
Brand Name: Jentan
Certification: CE;GS;EN;ISI;AU;UL;CUL;TUV
MOQ: 1 piece
Price: Negotiation
Delivery Time: 7-60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000pcs per year
Model Number: JTBC
Dimensions: 5ft x 3ft x 6ft
Certifications: CE, ISO
Lifting Height: 10 feet
Application: Industrial
Warranty: 1 year
Usage: Heavy Duty
Color: Yellow
Power Source: Manual
Weight: 200 lbs
Features: Adjustable Forks
Safety Features: Overload Protection
Material: Steel
Type: Forklift
Load Capacity: 5000 lbs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

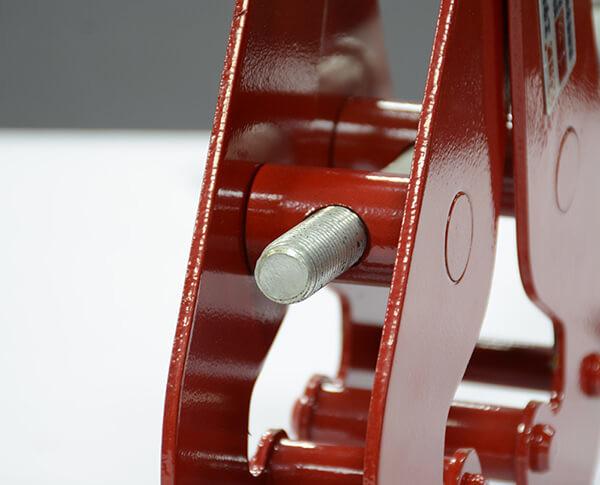

Versatile Mechanical Lifting Devices Hoist A Beam Clamp Heavy Duty

JTBC-A Beam Clamp

Universal Beam Clamp

· Complies with ANSI/ASME safety standards. · Easily adjustable with a threaded handle. · Clamp jaw designed to reduce flange stress by distributing the load away from the I-Beam flange edge. · Accommodates a wide range of flange widths and beams. · Features a suspension bar for lower headroom.

OPTIONAL EXTRA · Available with a shackle. · Special design with flattened, reinforced jaws.

1-ton to 10-ton capacities.

Suitable for construction, commercial, and industrial vertical or horizontal rigging operations.

Use for mounting hoists or lift beams with a portable lightweight clamp.

Adjustable to fit a broad range of wide-flange H or standard I beams.

Clamp jaw designed to distribute the load away from the beam flange edge.

Low headroom with a built-in suspension rod.

Robust all-steel construction ensures safe operation. Compact size, lightweight, easy to install with minimum headroom, and super-quick adjustment to any girder width within the specified range.

LJ-Q TYPE GIRDER CLAMP

规格 Model1t2t3t5t10t
额定载重量123510
Rated capacity
t
实验载荷12.52537.563125
Test load
kN
使用轨宽75-23075-23080-34580-34590-350
Adjustable Beam Width
mm

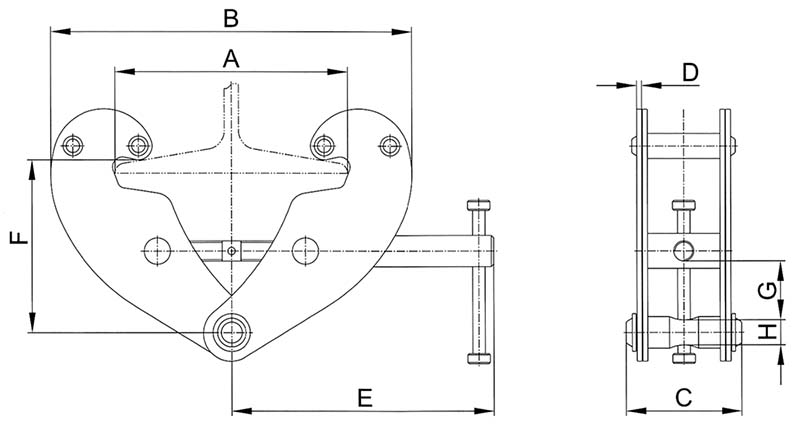

主要尺寸
mm
Dimensions
Amax240240355355360
Bmin192192243243272
max367367520520532
C94102132142180
D4681012
E194194241241284
Fmin102102133133155
max154154223223234
G2222383547
H2020222838
净重 Netweight
kg
44.89.811.617
