| Categories | Fused Silica Roller |
|---|---|
| Brand Name: | QIANJUN / HIMJOY |
| Model Number: | Fused silica roller |
| Place of Origin: | CHINA |
| MOQ: | 5 pcs |
| Price: | USD 500 per piece |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 rolls |
| Delivery Time: | 30days |
| Packaging Details: | Fumigate Wooden Case |
| Product Name: | Fused Silica Ceramic rollers |
| Application: | Glass tempering furnace machine |
| Raw Material: | Silica 99.8% |
| Bulk density: | >1.98 (g/cm3) |
| Apparent porosity: | 7-11 (%) |
| Compression strength: | ≥60 (MPa) |
| Diameter: | 55mm, 60mm, 85mm, 95mm etc |
| Surface Roughness: | ≤1.5 (μm) |
| Packing: | Fumigate Wooden Case |
| MOQ: | 5 pcs |
| Company Info. |
| Luoyang Qianjun Technology Co., Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Fused Silica Ceramic Roller with High Bearing Capacity for Glass Tempering Furnace
TamGlass Glasston Unic Landglass Northglass Mountain Glass Jinglass Tempering Furnace
Product Introduction:
The Fused Silica Ceramic roller, consisted of porcelain body, bearing, shaft and
plastic labyrinth sealing ring. Ceramic roller shaft is a key component in glass horizontal tempering furnace, mainly used for carrying and transporting glass in glass horizontal tempering furnace.
Application:
Glass Tempering Furnace, Silicon steel production, Lehr & lor float glass line, etc.
Ceramic roller
Basic Infomation:
| Raw Material | Silica | Bulk density | >1.98 (g/cm3) |
| Apparent porosity | 7-11 (%) | Press compression | 102 Mpa |
| Compression strength | ≥60 (MPa) | Expansion coefficient | 0.6*10-6/degree |
| Transverse strength | ≥30 (Mpa) | Certification | CE, RoHS |
| Expasion Coefficient | <0.6 (×10-6 /°C) | Warranty | 1 years |
| Surface Roughness | ≤1.5 (μm) | MOQ | 5 Pieces |
| OD Tolerance | ±0.05 (mm) | Density | 1.98g/cm3 |
Radial Beat (Tolerance in rotation) | ≤0.10 (mm) | Package | Fumigate Wooden Case |
Size can be customized with special specifications

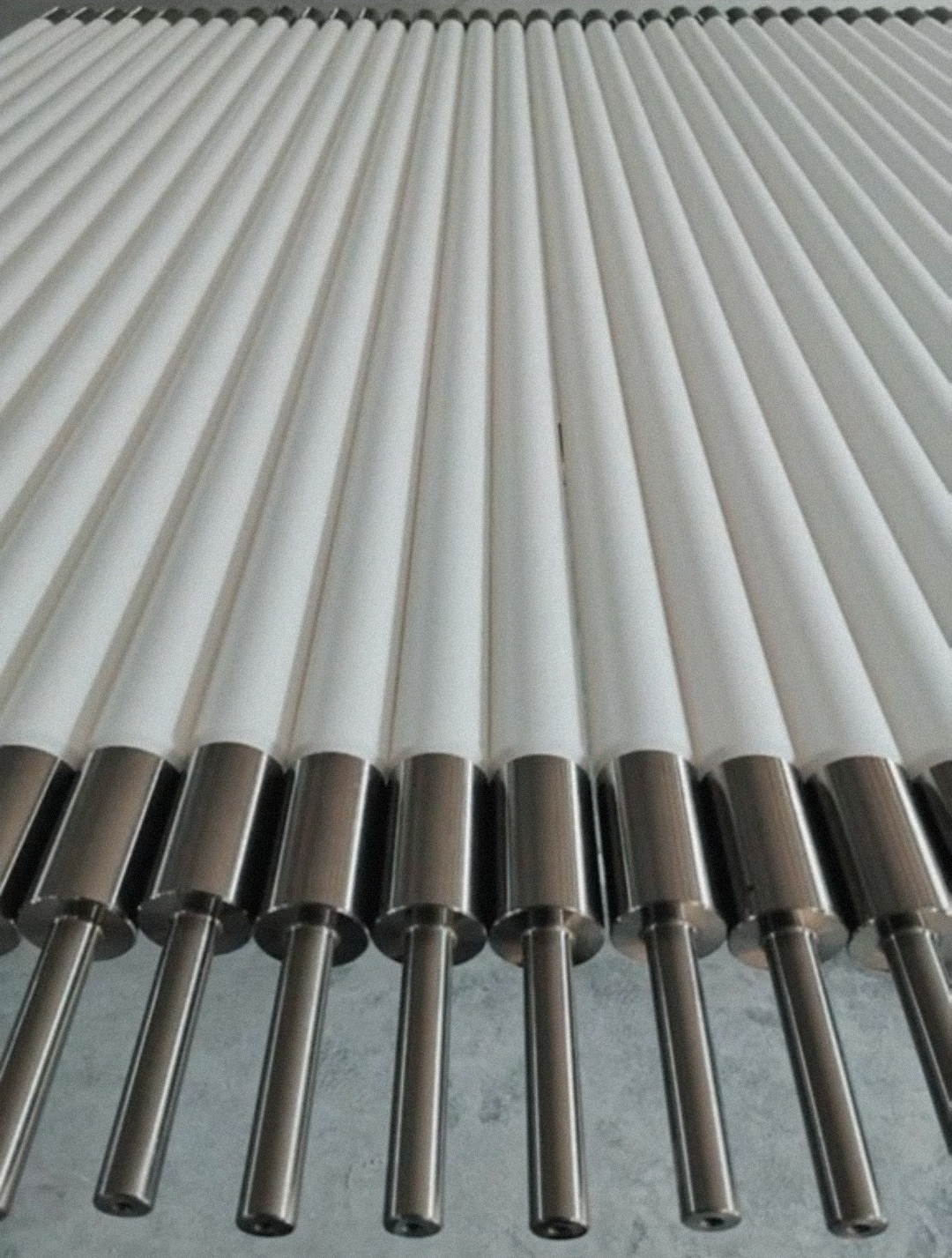

Detailed Photos:
Product Features:
High Purity.
High density.
Low porosity and critical manufacturing measurement.
The surface of the roller is smooth and delicate, the radial runout is small, the processing
accuracy is better than that of similar imported products, and it does not scratch the glass.
The steel head adopts anti-loose sleeve structure design and assembly, long service life.
The roll blank adopts the original grouting forming technology, which has the characteristics
of high density, high strength, no deformation at high temperature, wear resistance and long
service life.
High economic benefit, can reduce the comprehensive cost of belt conveyor, & reduce
maintenance man-hours.
Fused Silica Ceramic rollers which are mostly used in high grade Automobile, Electronic,
Solar etc glass manufacture.
Product Assurance:
If there is any problem with the quality, we are responsible for returning it!
Packing & Delivery:
MOQ, 5 pieces
we are professional manufacturer with many years experiences, self-produced direct sales, multi-specification, large-scale stock in stock, uninterrupted circulation supply!
We promise: 100% high-quality quartz production, refusal to adulterate, and serve our customers with quality and reputation.
|
