Categories | Battery Pack Welding Machine |
---|---|
Brand Name: | XWELL |
Model Number: | MD-ADW |
Certification: | CE |
Place of Origin: | China |
MOQ: | 1pcs |
Price: | USD 6000 - 9000 / pcs |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 100pcs per month |
Delivery Time: | 10-15 days |
Packaging Details: | Wooden box |
Warranty: | 1 Year |
Marketing Type: | Ordinary Product |
Key Selling Points: | Automatic |
Pack size: | X direction: 26; Y direction: 26 |
Welding current: | 5000A 8000A |
Voltage: | 220V/380V(AC) |
Power: | 4000 W |
Company Info. |
Guangdong XWELL New Energy Technology CO., LTD. |
Verified Supplier |
View Contact Details |
Product List |
Double Sided Spot Welding Machine For Lithium Battery Pack
Features:
Support breakpoint start, automatic start, and manual start. Cold solder joint and sealing off alarm. Easy program, support matrix, array and point program, can store 99 group parameters. Welding needle abrasion alarm. Build-in welding current monitor, can display real time welding current. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding. High productivity: 0.35s/spot Can be matched with the production line of lithium battery group.
Battery Spot Welding Machine Specification
Model No. | MD-ASW |
Y-axis travel | 500mm (customizable) |
X-axis travel | 350mm (customizable) |
Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
Motor drive speed | 1000mm/S |
Max load electric cores | X direction: 26; Y direction: 26 |
Capable file group storage | 99 groups |
Operating system | embedded system human-machine interface |
Transmission mode | Taiwan precision screw with guide rail |
Driving mode | stepper servo motor |
Repeat positioning accuracy | ±0.02mm |
Dimensions | L: 900mm, W: 900mm, H: 1750mm |
Power | 4000W |
Machine weight | 200KG |
Max bearing weight of Y-axis | 35KG |
Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
Air Source | 0.4-0.6 Mpa |

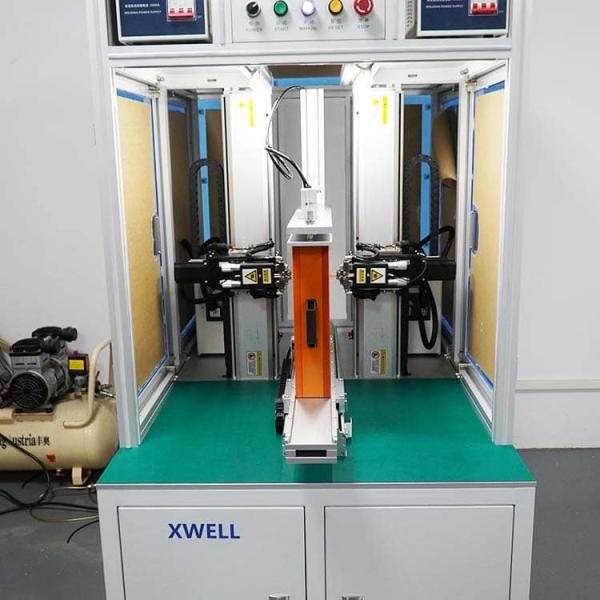

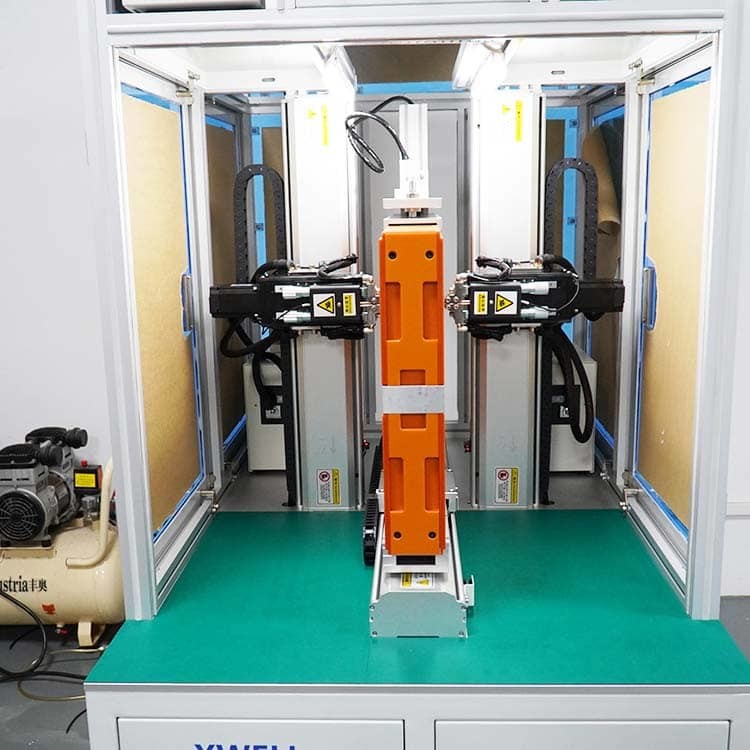

Double Side Spot Welding Machine Details
![]() |
