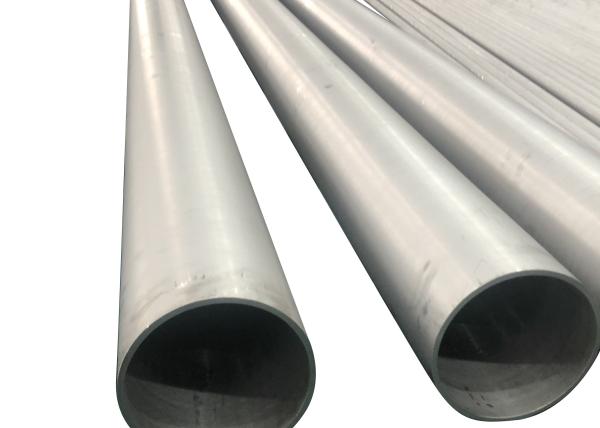

Martensitic Grade Thin-Wall Stainless Steel Pipe Tube AISI 410/UNS S41000

Overview

Grade 410 stainless steels are general-purpose martensitic stainless steels containing 11.5% chromium, which provide good corrosion resistance properties. However, the corrosion resistance of grade 410 steels can be further enhanced by a series of processes such as hardening, tempering and polishing. Quenching and tempering can harden grade 410 steels. They are generally used for applications involving mild corrosion, heat resistance and high strength. Martensitic stainless steels are fabricated using techniques that require final heat treatment. These grades are less resistant to corrosion when compared to that of austenitic grades.

Application

Bolts, screws, bushings and nuts

Petroleum fractionating structures

Shafts, pumps and valves

Mine ladder rungs

Gas turbines

410 Stainless Pipe Chemical Composition

Physical Properties

Mechanical Properties Stainless Steel 410

Corrosion Resistance

Grade 410 stainless steels are resistant to hot gases, steam, food, mild acids and alkalies, fresh water and dry air. These steels obtain maximum corrosion and heat resistance through hardening. However, grade 410 steels are less corrosion resistant than austenitic grades and grade 430 ferritic alloys containing 17% chromium. Smooth surface finish offers improved performance of steels.

Heat Resistance

Grade 410 steels have good scaling resistance at temperatures of up to 650 °C. However, the mechanical properties of the material will tend to reduce at temperatures ranging from 400 to 580 °C.

Heat Treatment Annealing

Grade 410 steels can be fully annealed at temperatures from 815 to 900 °C, followed by slow furnace cooling and air-cooling. Process annealing of grade 410 steels can be carried out at temperatures ranging from 650 to 760 °C and air-cooled. Hardening – Hardening of grade 410 steels can be performed at 925 to 1010 °C, followed by air and oil quenching. Heavy sections of grade 410 need to be oil quenched. Tempering, to enhance the mechanical properties and hardness of grade 410 steels, follows this process. It is not recommended to perform tempering at temperatures from 400 to 580 °C.

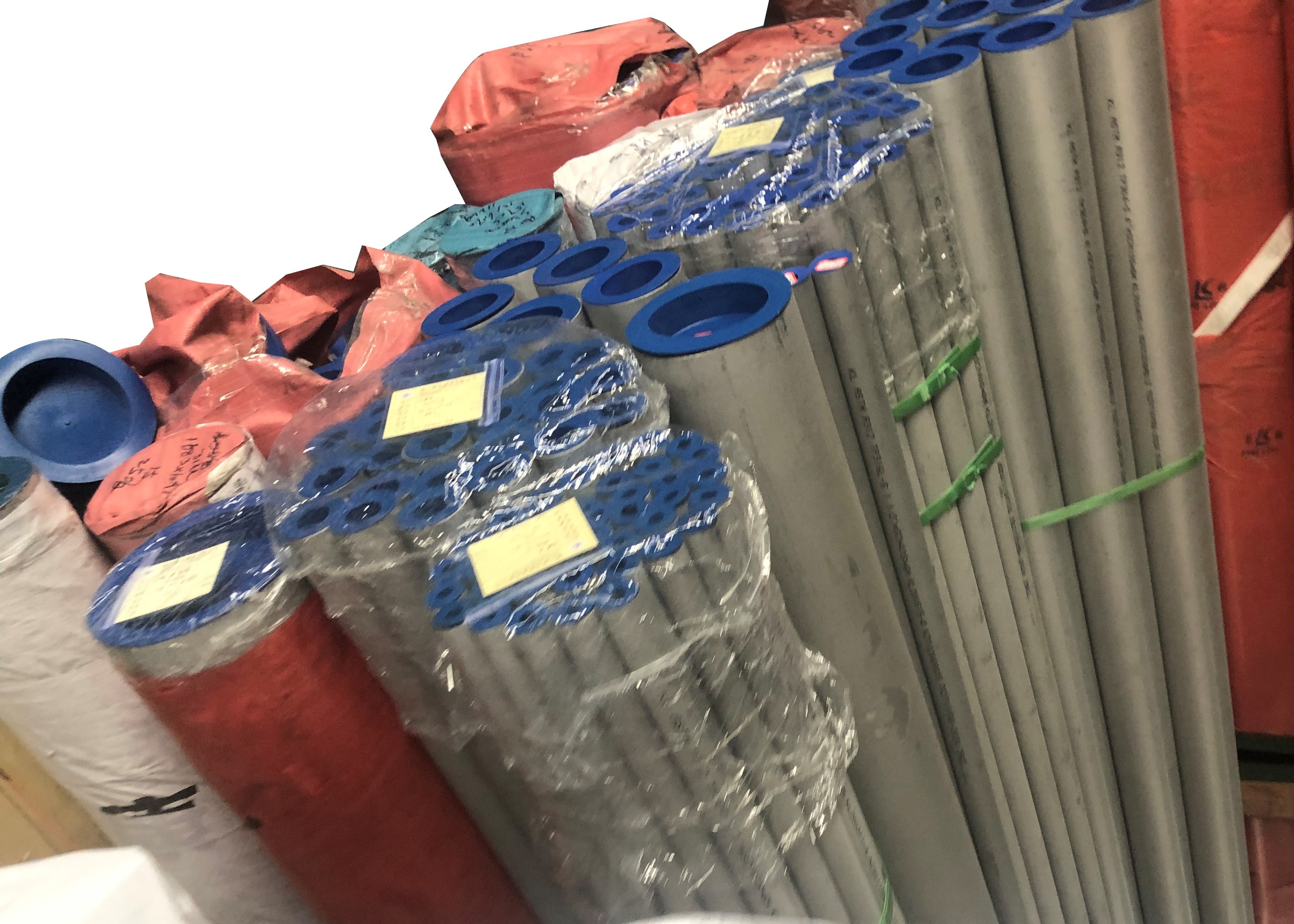

Package Process

1.with plastic cap to protect both ends

2.weaving bag wrapped outside the pipe

3.then pack into wooden case.


Company introduction

Zheheng steel is one  incorporate of manufacturer, Exporter ,consultant ,stockist company specialized in the area of stainless steel tubing , pipe fittings ,Flanges and other stainless steel grade accessories . It is one-stop-shop company ,our team have more than 20 years experience in stainless steel field ,especially in heat exchanger tubing and large diameter pipes with ultra-long, ultra-thin, ultra-thick or ultra-large various and some special-purpose projects .

After years of efforts,we now became more and more stronger , we have consist of four company respectively located in wenzhou(headquarter),lishui,chengdu city,two factorys of ss stainless pipe workshop in lishui ,another one ss pipe fittings workshop located in wenzhou ,one domestic sales company located in chengdu.

On Time, On Budget, For Over 20 Years

Our reputation is for providing competitive prices, technical services and on time deliveries for every project for over 20 years. Our inventory is computerized so our employees can respond quickly to all your requests. If a specific product is not in stock when you request it, we guarantee same day shipping or shortest lead time available.

Our regular feture products are 304/304L,316L, 321,310s,austentic serious ,duplex steel 2205 ,hastelloy c276,inconel 625 ,and super stainless steel 904L , All of our products meet or exceed AISI/ASTM A213 ,A269,A312,EN 10216,GHOST 9941 ,GB,JIS standard. per your specific requirements and include full documentation.

More photos about our workshop :
