10 Tyres SHACMAN 30t Dump Truck F3000 6x4 380Hp EuroII Red Tipper Diesel Engine

Categories Heavy Dump Truck
Brand Name: SHACMAN
Model Number: F3000
Certification: ISO 9001/CCC
Place of Origin: Shaanxi,Xian
MOQ: 1
Price: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Delivery Time: 45 working days
Packaging Details: Nude pack, with wax before shipment.
Modle: SHACMAN SX3255DT384
Engine: WP10.380E22
Transmission: FAST 10JSD180+QH50
Axle: MAN 9.5T /2*16 T Double-stage,speed ratio-5.92
Wheel base: 3775+1400 mm
Tire: 12.00R20
Fuel tank: 300L
Clutch: φ430 Diaphragm spring clutch
Air inlet: Ordinary air filter
Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Cabin: Medium-length flat top
Color: Neon Red/Green Mountain Green/Star and Moon Blue/Aurora White/Klein Blue/Brandy
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10 Tyres SHACMAN 30t Dump Truck F3000 6x4 380Hp EuroII Red Tipper Diesel Engine

SHACMAN 30t Dump Truck F3000 6x4 380Hp EuroII


Detailed Product Description

Model:SX3255DT384
Drive type:6x4
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50


Dump Truck Parameters

ModelSX3255DT384
Drive type6x4
WeightGross Vehicle Weight≤50
DimensionsWheelbase/(mm)18
PerformanceMaximum speed/(km/h)45~60/80
Ground clearance>314
EngineBrandWEICHAI
ModelWP10.380E22
Power/(kw/HP)279kw / 380Hp
Maximum torque / (N.M)/rpm1600 N·M
Displacement/(L)9.726 L
Emission standardEuro II
Gear boxBrandFAST
Model10JSD180+QH50
ClutchTypeφ430 Diaphragm spring clutch
CoolingTypeDomestic heat sink
Air inletTypeOrdinary air filter
BrakesTypeDrum brake
Service brakeDouble circuit air brake
Park brakeRear wheel spring brake
Auxiliary brakeWEVB engine exhaust brake
SteeringTypeZF8098 technology, circulating ball steering machine
ChassisTypeParallel trapezoidal frame with variable section
Dimensions/(mm)850×320 (8+7+8)
SuspensionFrontMulti-layered leaf springs with 4 Main springs+4 U Bolts
RearMulti-layered leaf springs with 4 Main springs+4 U Bolts
AxlesBrandHANDE
Front axle9.5T front axle MAN technology
Rear axle16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
TiresType12.00R20
Fuel tankTank capacity/(L)300L Aluminum tank
ElectricsType24V
Battery165Ah Maintenance-free battery
CabTypeSHACMAN F3000 Medium-length flat cab
EquipmentHydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

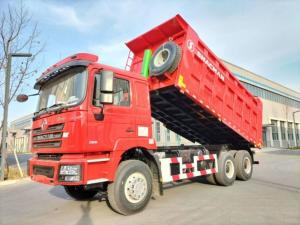

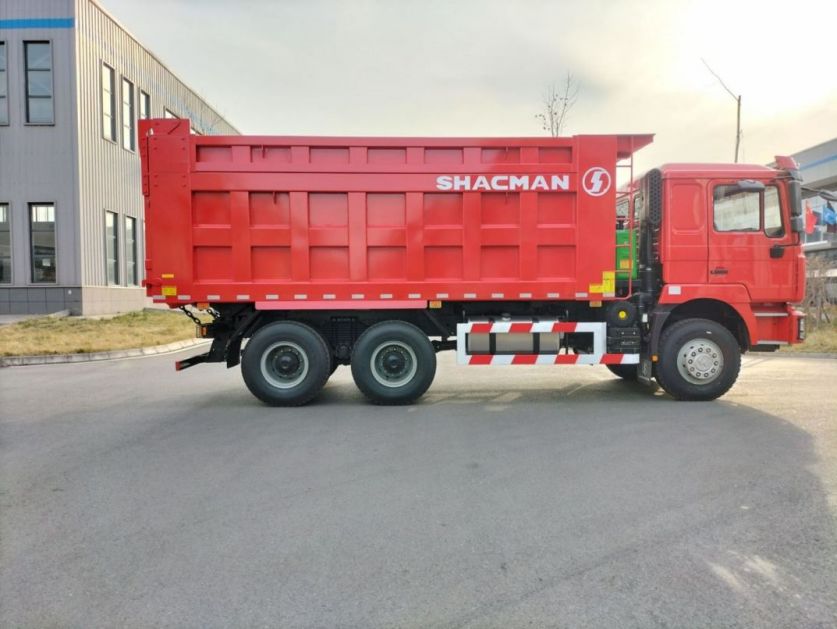

Detailed Image



Advantages

  • Military grade chassis, reinforced driver cab, upgraded air filter, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab turning shaft, off road racing quality cab damping spring.
  • Mature power delivery system increased overall efficiency, higher uptime, lower maintenance cost.
  • The 6 wheelers configuration provide the truck with exceptional load-carrying capacity, allowing it to transport large volumes of heavy materials in a single trip, thereby optimizing productivity.

FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck,
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
