Underground Jumbo Drilling Machine Mining Tunnel Drill Rig Hydraulic Drilling Rig

Underground Jumbo Drilling Machine Mining Tunnel Drill Rig Hydraulic Drilling Rig

Underground Jumbo Drilling Machine Mining Tunnel Drill Rig Hydraulic Drilling Rig
Underground Jumbo Drilling Machine Mining Tunnel Drill Rig Hydraulic Drilling Rig
Categories Jumbo Drilling Rig
Brand Name: SANROCK
Model Number: SRUB3S
Certification: CE ISO 9001:2015
Place of Origin: Zhejiang, China
MOQ: 1Set/Sets per Month
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Delivery Time: 15-30days
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Product name: Jumbo drilling rig
Name: Underground Jumbo drilling rig
Feature: High Drilling Efficiency,Hydraulic Controlling
Application: Tunnel Drilling ,Rock Drilling, Mining Quarry
Engine: CUMMINS
Power: 53kw
Boom Propelling compensation: 410mm
Hydraulic oil tank capacity: 180L
Max system pressure: 220bar
Chassis Fuel tank capacity: 70L
Chassis Battery: 120Ah
Dimension Turning radiu: 3121/5872mm
Dimension Ground clearance: 300mm
Traveling speed: 14km/h
Boom extension: 1200mm
Dimension(L*W*H): 10310*2050*2810mm
Weight:: 13500kg
Contact Now
Company Info.
Quzhou Sanrock Heavy Industry Machinery Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Underground Jumbo Drilling Machine Mining Tunnel Drill Rig Hydraulic Drilling Rig

Underground Jumbo Drilling Machine Mining Tunnel Drill Rig Mining Hydraulic Drilling Rig

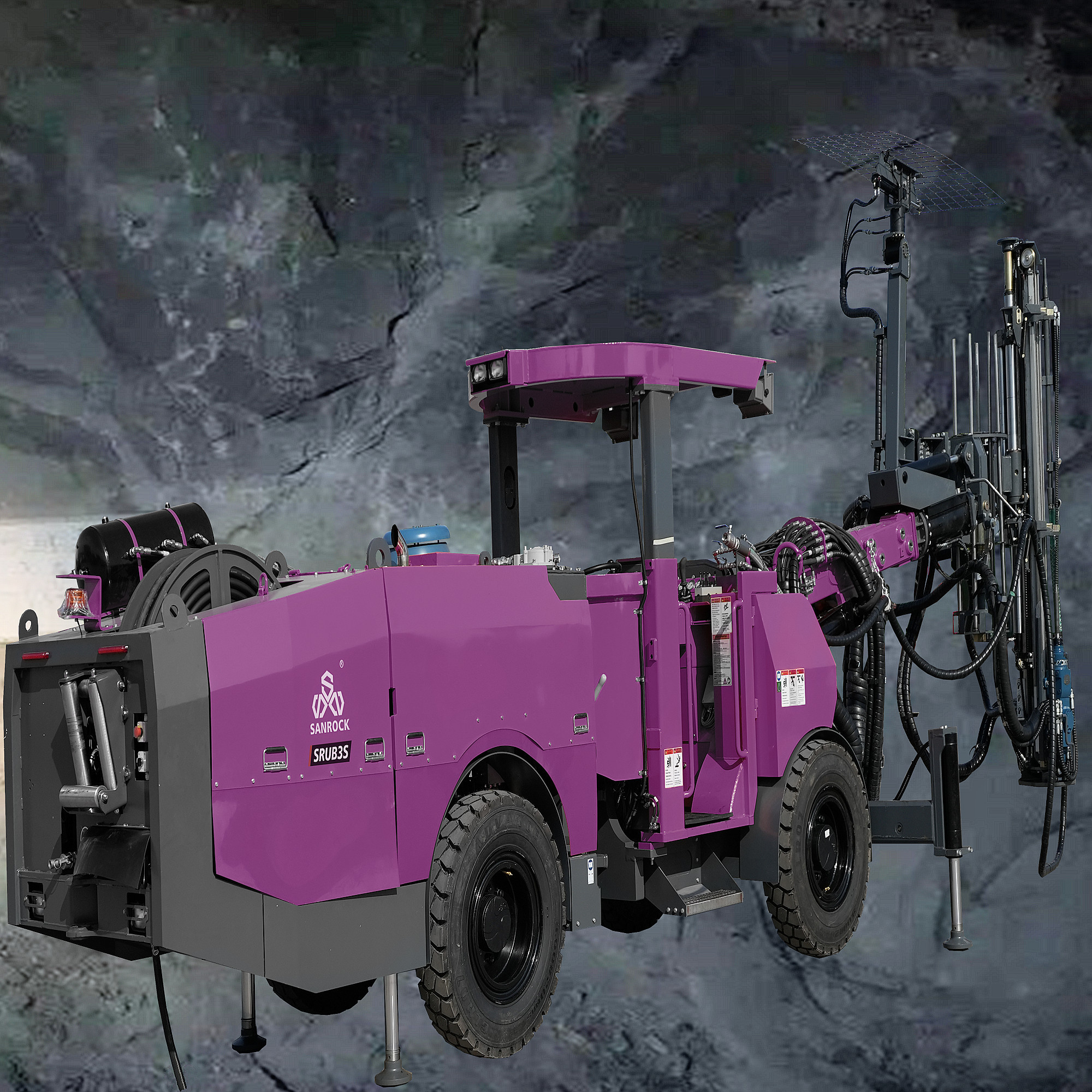

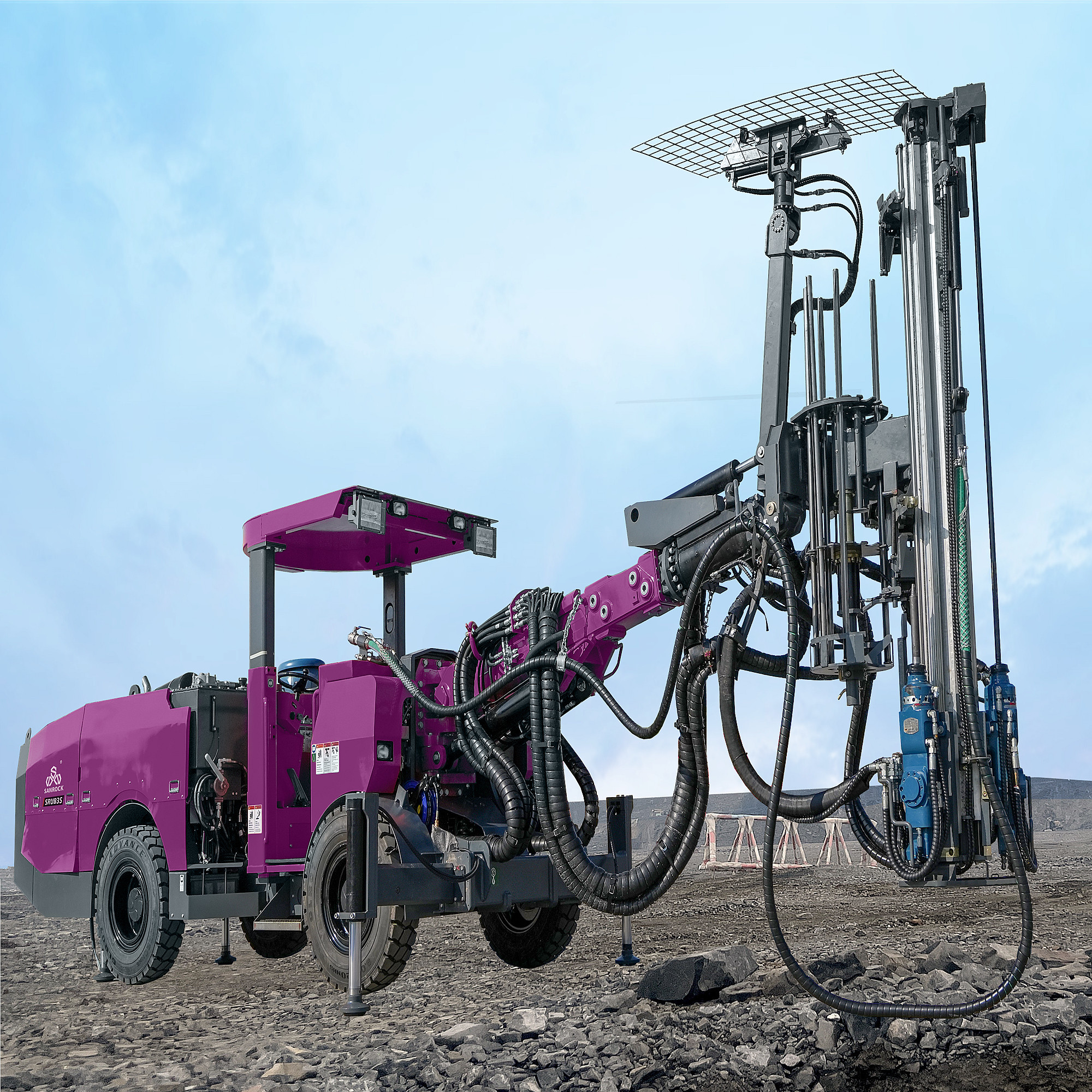

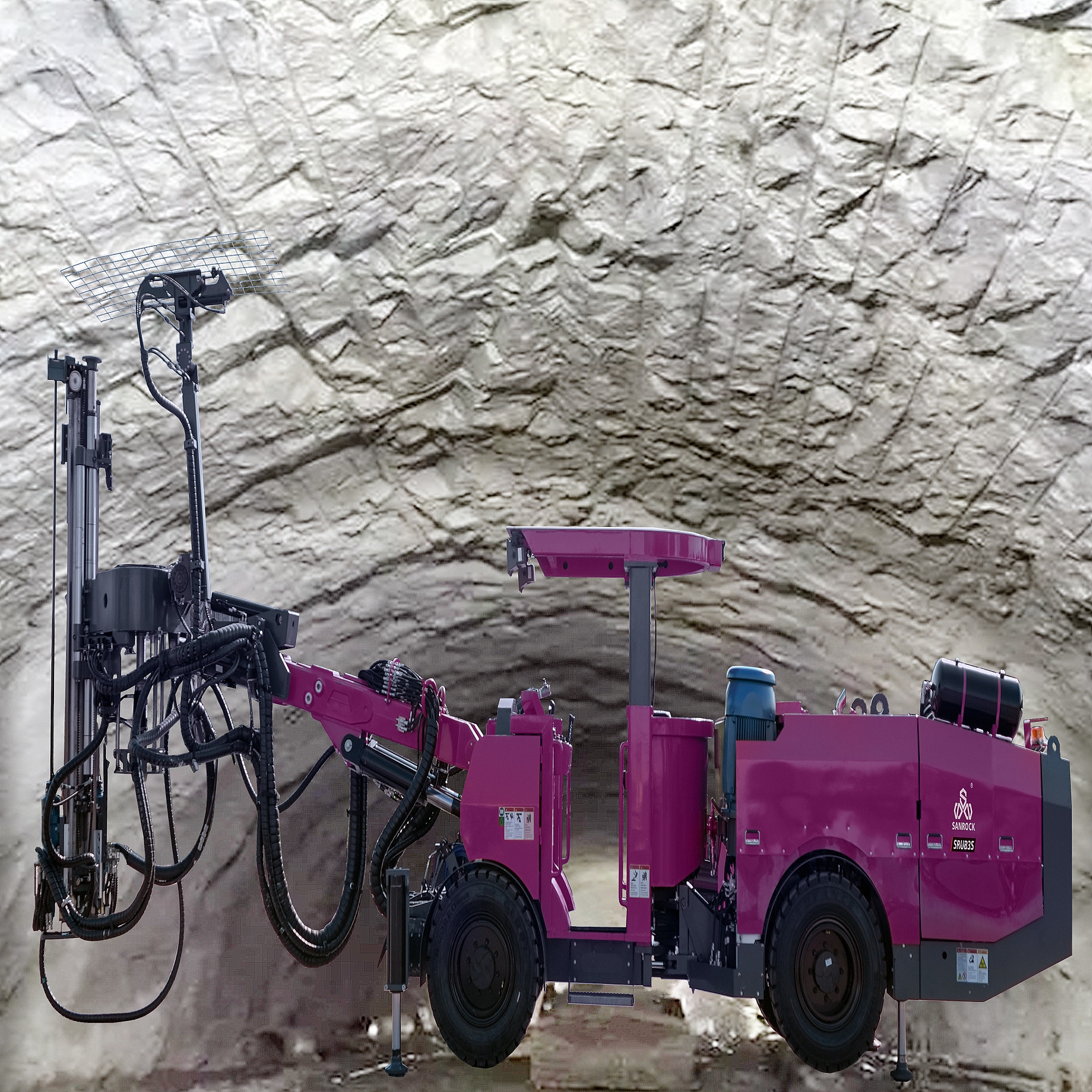

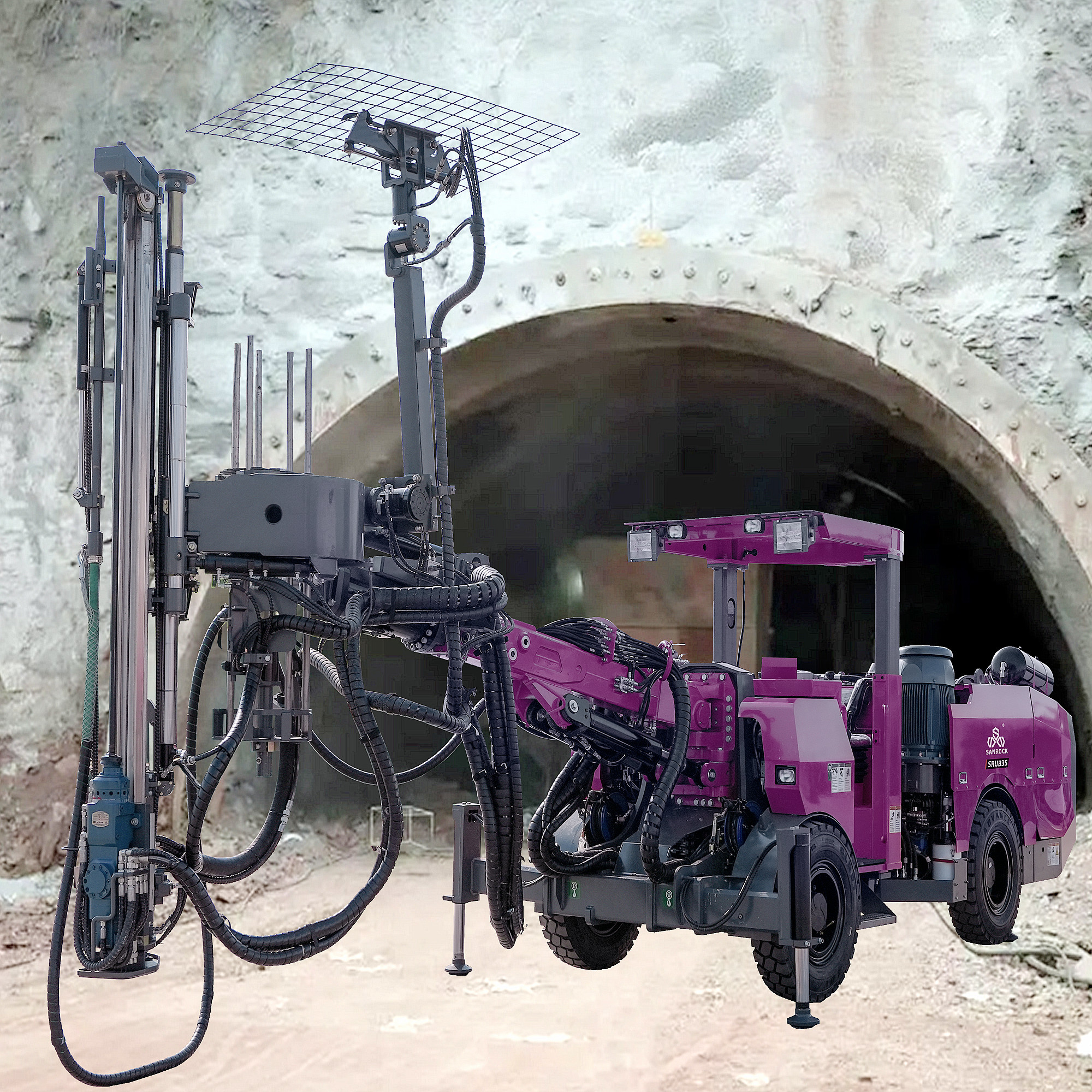

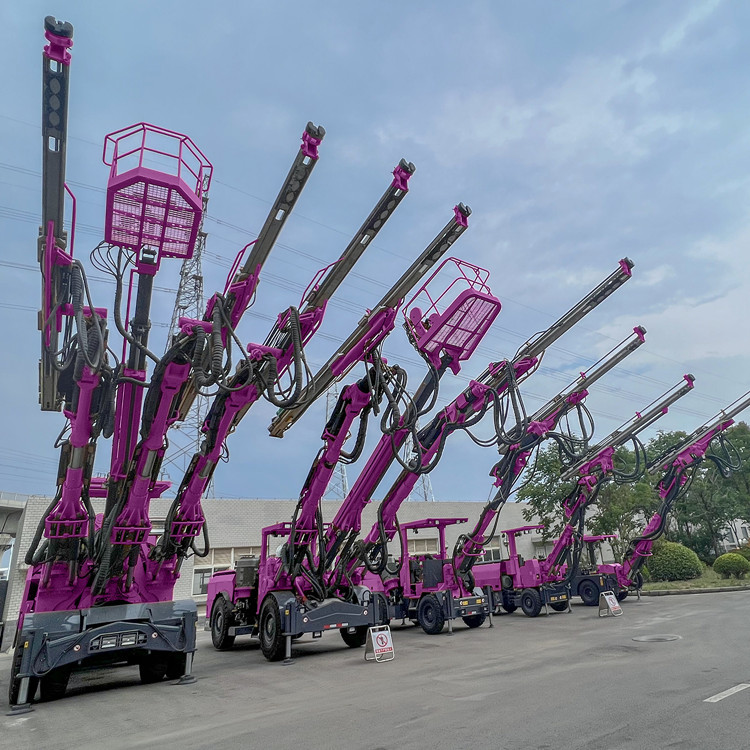

SRUB3S rock bolting rig is developed for using in various drift sizes from small to medium.It can install most common rock bolts like split set or resin bolts from 1.5m to 3m length.The suitable cross­sections (width x height) is from minimum 3.5m x3m to maximum 6m x 6m.

Feature:

Heavy Load Chassis With time-proven and robust design chassis,this rig delivers high reliability with heavy loads.Also the classic direct hydraulic control system makes operating and maintenance easier. Versatile Bolting Head

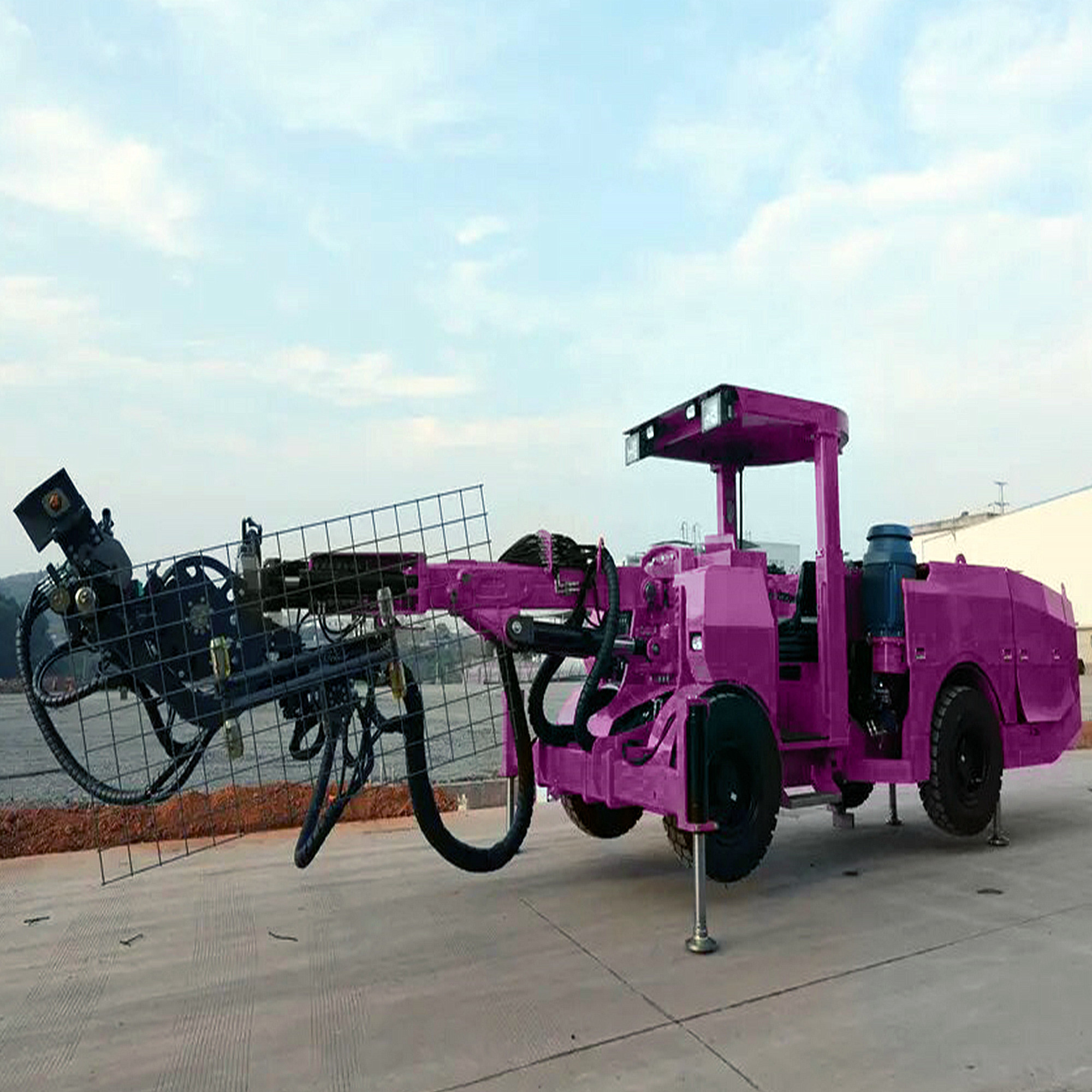

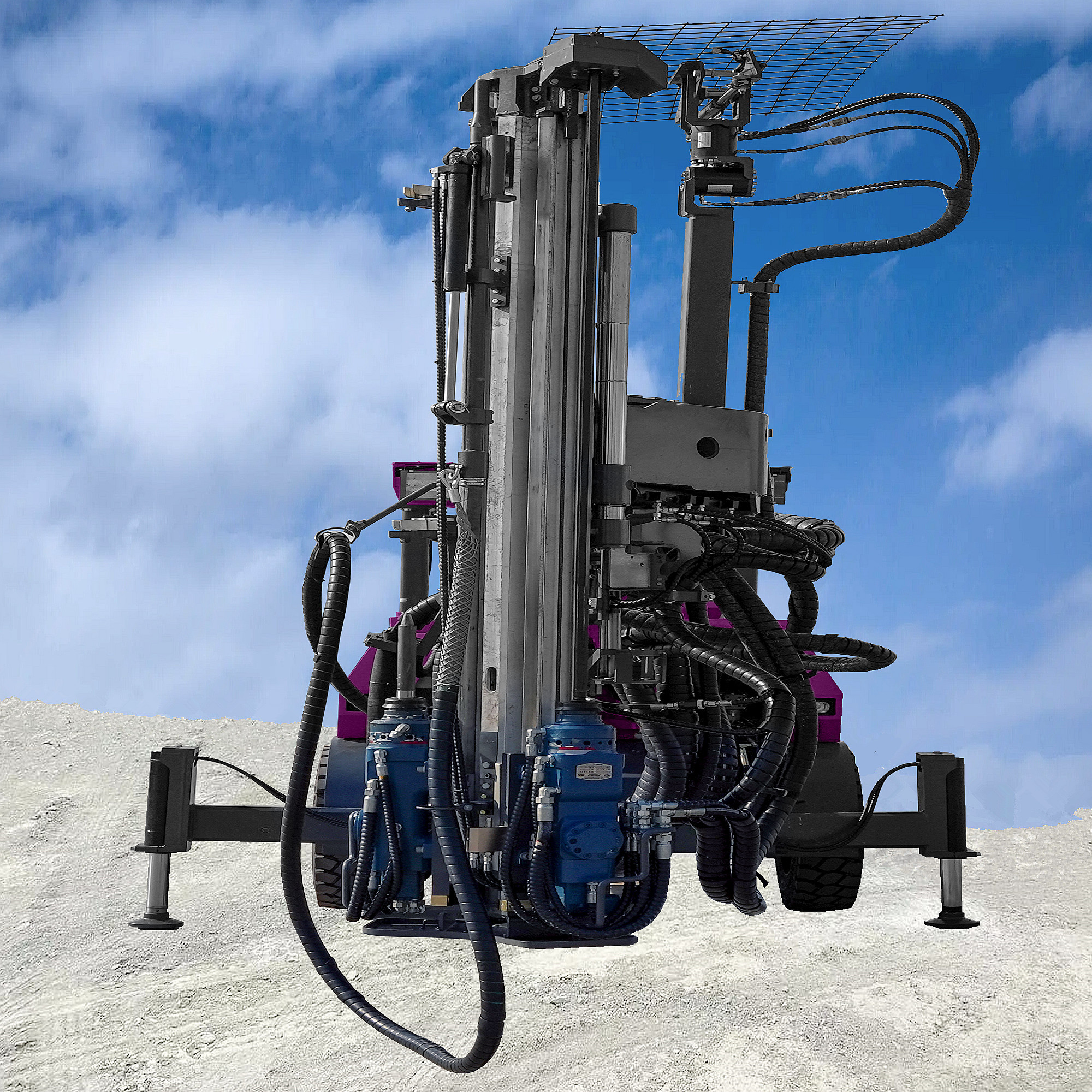

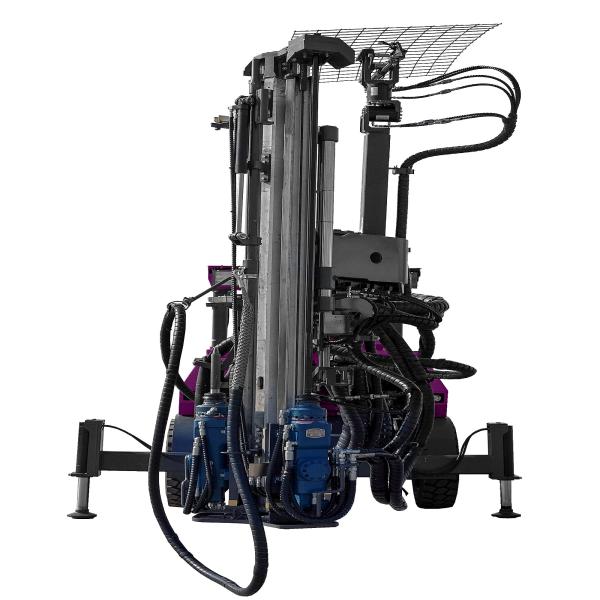

Bolting head can be customized for using split set bolts only,or resin bolts only,or combined both bolts.The bolts handler capacity for split set is 10 pcs,resin is 10 pcs,and combined both is 6 pcs split set+ 6 pcs resin at the same time.Also resin conveying system and mesh handling arm are equipped on bolting head,by working together they can complete the meshing,drilling and bolting processes consistently and quickly.

Products Description

Sanrock Underground Bolting Rig Technical Parameters
Model
SRUB3S
Mesh handling system
Extension stroke
mm
1000
Drive method
/
Hydraulic
Handling method
/
Hydraulic cylinder
Boom
Propelling compensation
mm
410
Boom extension
mm
1200
Feed roll-over
°
±180
Hydraulic system
Max system pressure
bar
220
Hydraulic oil tank capacity
L
180
Air compressor system
Motor power
kw
5.5
Max.displacement
L/min
11.6
Working pressure
bar
8
Water system
Motor power
kw
1.5
Max.flow
L/min
50
Max.working pressure
bar
25
Electrical system
Total installer power
W
62
Main motor power
kw
55
Voltage
V
380
Frequency
HZ
50
Transformer
VA
300
Electrical cable volume
m
90
Chassis
Engine
/
Cummins
Rated power
kw
53
Departure angle
°
17
Approach angle
°
20
Fuel tank capacity
L
70
Electrical system voltage
V
12
Battery
Ah
120
Max.working gradient
°
14
Traveling speed
km/h
14
Dimension
L*W*H
mm
10310*2050*2110/2810
Ground clearance
mm
300
Weight
kg
13500
Turning radiu
mm
3121/5872
Feed and bolting head
Model
BU25
BU25F
BU25D
Rock drill model
M8B/D
Bolt length(mm)
1800
2000
2200
Bolt type(optional)
Split set/Resin/Combined both
Bolt handler capacity
10/10/6+6
Drill rod length(mm)
2175
2475
2700
Hole depth(mm)
1950
2185
2460
Propel force(kN)
7.5
7.5
7.5
Total length(mm)
2870
3165
3395
Rock drill
Model
M8B/D
M10B/D
Shank
R32
R32
Hole diameter(mm)
32-51
32-64
Max.impact power(kw)
8
10
Impact rate(Hz)
55-65
53
System pressure(bar)
15
16
Rotation motors
Independent rotation
Rotation speed(rpm)
300
300
Max.rotation torque(N.m)
401
482
Lub.air consumption(L/s)
5
5
Weight(Kg)
71
103
Noise(dB)
120
120
