Corrosion Resistance Hastelloy C 276 Wire Mesh In Hot Concentrated Sulfuric Acid Solution

Categories Metal Woven Wire Mesh
Brand Name: QIANPU
Certification: ISO
Place of Origin: Anping of China
MOQ: 2Rolls
Price: Negotiable
Payment Terms: T/T, Western Union, L/C
Delivery Time: 2weeks
Packaging Details: Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Product Name: Hastelloy Woven Wire Mesh
Material: Hastelloy C-276
Standard: ASTM
Hole Shapes: Square
Woven Type: Plain Weave, Twill Weave
Mesh Counts: 2 to 300
Roll Length: 30m
Roll Width: 0.5m - 3.0m
Features: has excellent corrosion resistance to pitting and crevice corrosion.
Usages: widely used in petrochemical, flue gas desulfurization, pulp and paper production, waste treatment, environmental protection industry, etc.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

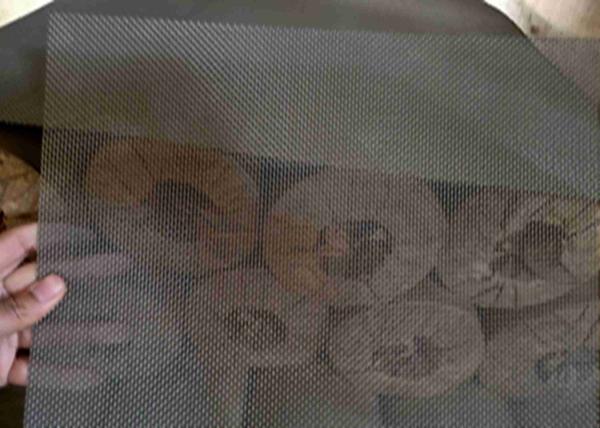

Corrosion Resistance Hastelloy C 276 Wire Mesh In Hot Concentrated Sulfuric Acid Solution

Hastelloy C-276 Wire Mesh With Excellent Corrosion Resistance Used In Hot Concentrated Sulfuric Acid Solution


Hastelloy Woven Wire Mesh Introduction:


Hastelloy C-276 wire mesh is nickel-molybdenum-chromium alloy with the addition of tungsten, and has excellent corrosion resistance to pitting and crevice corrosion. It is also the rare materials that can be used in hot concentrated sulfuric acid solution.

With good performance, hastelloy C276 wire mesh can be made into gas-liquid filter, demister or be widely used in petrochemical, flue gas desulfurization, pulp and paper production, waste treatment, environmental protection industry, etc.


Materials:

Chemical Composition of Material
TypeCCoCrCuFeMnMoNiPSSiSnVW
H-B0.122.51-6126.0 - 30.0Rem.0.01-0.03-0.6-
H-C220.0152.514.5 - 20.0-2.0 - 6.00.512.8 - 14.5Rem.-0.020.08-0.35-
H-C2760.022.514.5 - 16.5-4.0 - 7.0115.0 - 17.0Rem.0.030.030.08-0.353.0 - 4.5
H-X0.08-17.0 - 20.01Rem.2-34.0 - 37.00.030.030.75 - 1.500.025--

Features:


Prevent corrosion in chloride and fluoride media;
Excellent resistance to chloride and stress corrosion cracking;
Resistant to high temperature;
Great strength and toughness;
High resistivity and expansion rate.

Application:


Used for filter and demister;
Used in flue gas desulfurization, pulp and paper production, pollution control, environmental protection, marine engineering.


Main Specs:

Specification of Hastelloy B woven wire mesh
Mesh (Wires/ in.)Wire diameter (in.)Width of opening (in.)Open area (%)
16 × 160.0140.04960.2
30 × 300.00850.02555.4
30 × 300.01060.022746.5
60 × 600.00720.00930.5
200 × 2000.0020.00336

Specification of Hastelloy C276 woven wire mesh
Mesh (Wires/ in.)Wire diameter (in.)Width of opening (in.)Open area (%)
6 × 60.0470.1251.8
8 × 80.0320.09355.4
10 × 100.0250.07556.3
12 × 120.0230.0651.8
12 × 120.0160.06764.5
12 × 120.0150.06866.6
14 × 140.020.05151
16 × 160.0180.04550.7
16 × 160.0090.053573.27
20 × 200.0230.02729.2
20 × 200.0160.03446.2
20 × 200.0090.04167.2
24 × 240.0140.02844.2
30 × 300.0130.0237.1
30 × 300.0090.02453.1
40 × 400.010.01536
40 × 400.0090.01641
40 × 400.00750.01849
50 × 500.0090.01130.3
60 × 600.00720.00930.5
60 × 600.00440.012354.2
80 × 800.0070.00619.4
80 × 800.0010.008546.2
100 × 1000.0010.00636
120 × 120 T0.0040.004327
180 × 1800.0020.003641
200 × 2000.00230.002748
200 × 2000.0020.00336

Specification of Hastelloy X woven wire mesh
Mesh (Wires/ in.)Wire diameter (in.)Width of opening (in.)Open area (%)
10 × 100.0250.07556.3
18 × 180.0090.04770.4
20 × 200.0160.03446.2
50 × 500.0030.01772.3
60 × 600.00750.00930.5

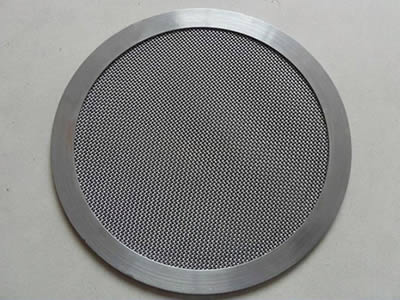

There is a filter disc made of hastelloy C-276 wire mesh with stainless steel frame.


Packing:

Inside with a paper core, outside with a piece of waterproof, the in wooden case.
