12 Inch Underground Camera With 360 Degree Rotary Borehole Inspection Camera

12-Inch Underground Camera with 360-Degree Rotary Borehole Inspection Camera

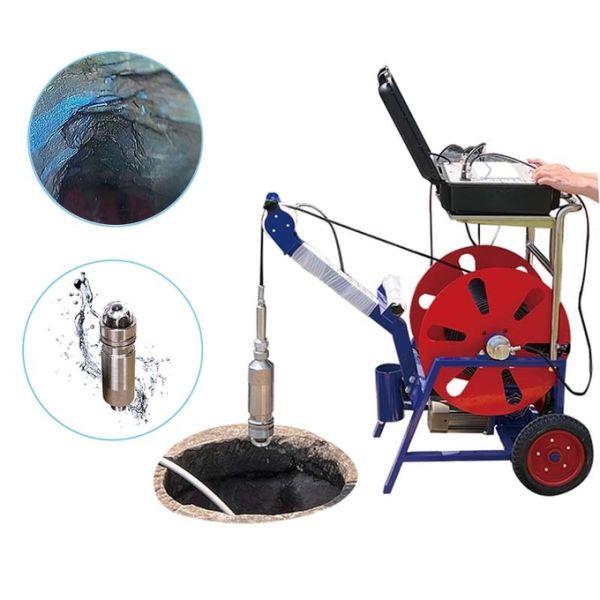

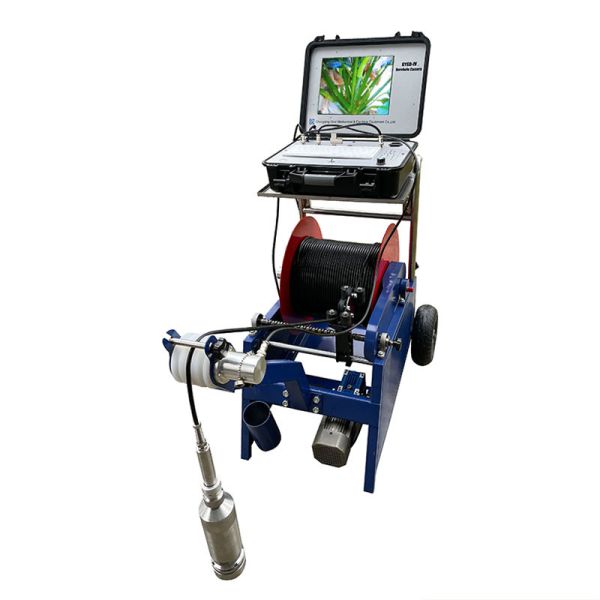

The borehole inspection camera provides unrivaled visibility and control with a full 500-meter cable winch and a 12-inch color monitor. It rotates 360 degrees clockwise and infinitely counterclockwise and tilts up to 180 degrees to provide you with a comprehensive, panoramic view of your underground environment. The probe has 11 LED lights that can be adjusted in brightness and focal length. The controller box features a 12-inch screen, USB recording, and keyboard input for borehole data.

• Sensor Resolution Sony 1/3 Inch CCD, 0.1Lux
• Camera Automatic Focus, Manual Focus(optical)

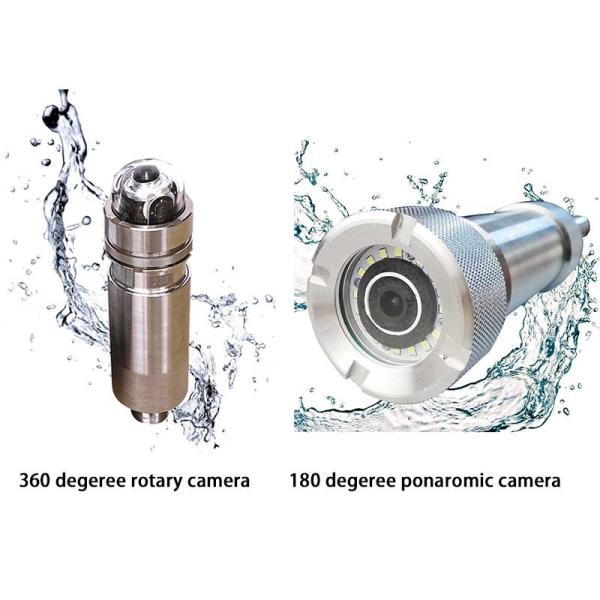

• 360 Degrees Rotation,Tilting 180 Degree
• Waterproof IP68,Probe Pressure 15Mpa
• Brightness Adjustment,11 pcs High Light LED
• Horizontal Resolution 850TVL

• 12-Inch Screen Monitor
• Resolution 1024*768
• Display Model 4:3
• SD Card Standard 16G SD Card, 32G Optional
• Power Supply AC 220V 50Hz(DC12/24V Optional)
• Menu Available in Many Languages

• Winding speed:0~20m/min
• Cable speed adjustable
• Wheel Type Winch,easy to move
• Depth Range 0-2000m
• Depth Counter​
• If more than 500m,will use skid type winch

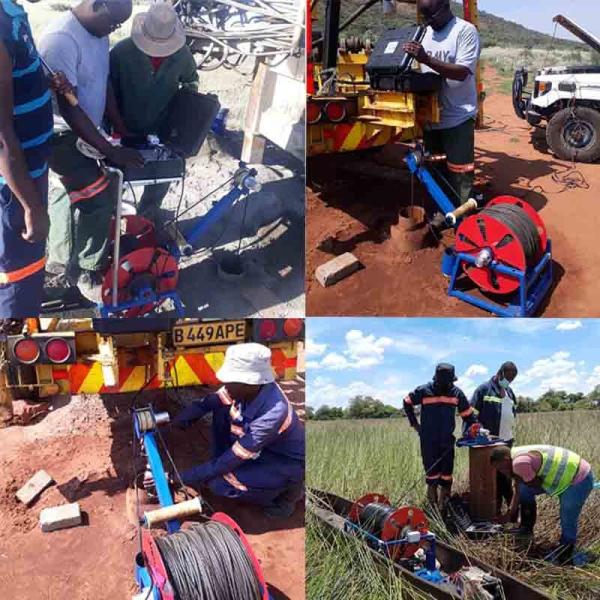

The 12-Inch Underground Camera with 360-Degree Rotary Borehole Inspection Camera is a fantastic tool for engineering geology, hydrogeology, geotechnical engineering, mining, and petroleum geology. It is designed to detect geological issues such as fissures, dislocations, falling objects, blockages in filter pipe holes, fluid sand position, and bedrock cracks. This camera's superior imaging capabilities provide users with high-quality visual data that aids in comprehending and dealing with geological concerns. The borehole camera is dependable and vital equipment for geological exploration and research. It can be used for a variety of purposes.

1. What is your company's main focus?
We manufacture geophysical equipment, including borehole cameras, water level meters, DC resistivity meters, magnetic equipment, and seismic equipment.
2. How deep can your borehole camera test?
Our borehole camera can be used at depths ranging from 100m to 1000m.
3. What is the diameter of your borehole camera?
Our borehole camera has a diameter of 75mm, making it suitable for boreholes between 80mm and 300mm.
4. What temperature range is your borehole camera suitable for?
Our borehole camera can operate in boreholes between -10 and 60 centigrade degrees.
5. Do you offer customized borehole cameras?
Yes, we can make customized borehole cameras per your specific requirements. We can make borehole cameras for depths up to 2000m, high-temperature borehole cameras, and more.

Chongqing Gold Mechanical Electrical Equipment Co. Ltd. has been actively involved in the design, development, and manufacturing of geophysical exploration equipment for over four decades. Our expertise encompasses various techniques used to capture images and map subsurface features and structures such as minerals, oil and gas reservoirs, groundwater, and geological formations.

At present, our company manufactures a diverse range of equipment that encompasses resistivity meters, seismic receivers, magnetic instruments, borehole loggers, and various other geophysical sensors. Additionally, we offer geotechnical instruments such as pile testers and drilling machines.

In collaboration with geologists, geophysicists, and other domain experts, we design and develop instruments that cater to the unique requirements of our clients. To maintain our leading edge in the market and keep up with technological progress and scientific advancements, we continuously invest in research and development to ensure that our equipment is accurate, reliable, and efficient.
