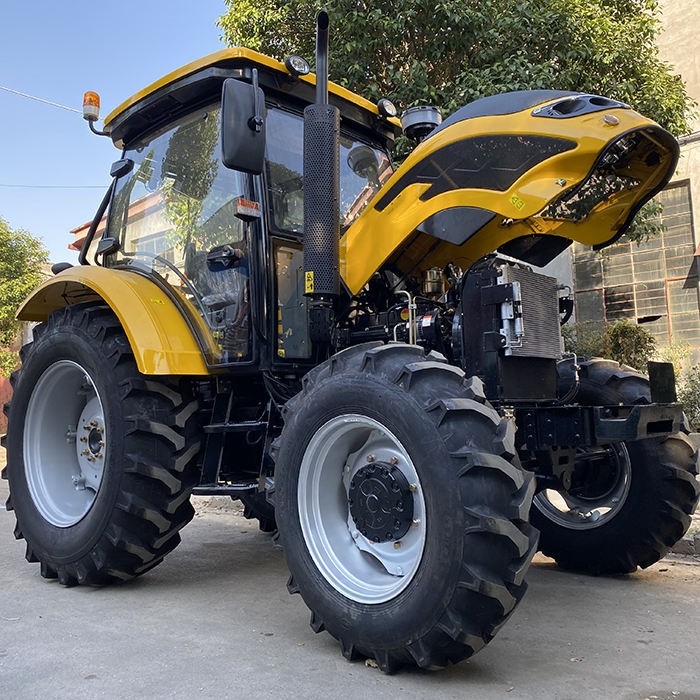

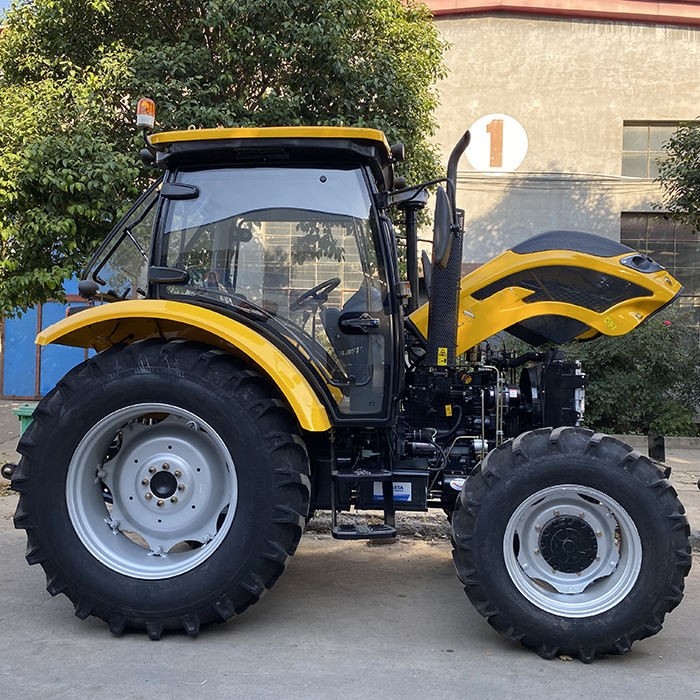

New Design Hot Sale Chalion 80HP 90HP 100HP 110HP 120HP Wheel
Tractor With Corn Seeder Planter For Sales Price
Product description
Product advantages:
1.Farm tractors are equipped famous brand engine, with good
performance, low fuel consumption and high economic efficiency.
2.The tractors adopt double-acting,Dry,Dual Stage Type.
3.Cheap farm tractor's wheel tread F/R (mm) use 1610/1620.
4.Our tractors use 150 L fuel tank.
5.The tractor's PTO speed is 540/1000 rpm.Linkage equipped II Rear
Mount 3-point.
| Length×Width×Height(mm) | 4280*2085*2925 | |
| Front Wheel(mm) | 1610 | |
Rear Wheel(mm) | 1620 | ||
Min.Ground Clearance(mm) | 450 | ||
Dry Mass | With Cab(kg) | 3915 | |
Engine Model | Direct-injection,water-cooled 4-cylinders diesel engine | ||
Number of Cylinder | 4 | ||
Cooling System Type | Water Cooled | ||
Rated Power(kw) | 80.9 | ||
Rated Speed(r/min) | 2200 | ||
Fuel Tank | Volume(L) | 150 | |
Transmission System | Clutch | LUK 12in.,double-acting,independent,dry clutch | |
Gear Box | F16+R8 Shuttle Creeper Shift | ||
Braking System | Static hydraulic pressure,multi-disc,wet | ||
|
| Front tyre | 12.4一24 |
Rear tyre | 16.4一34 | ||
Steering System | Hydraulic Steering |
Machted to YTO/YUCHAI diesel engine with strong power, high fuel
efficiency and large torque coefficient.
Germany ZF front axle is used on the tractor having high carrying
capacity and clearance; double steering cylinder make the steering
more flexib.
Adopting side mounted control mechanism and collar shift,
transmission gears of F16+R8, crawler of F16+R8, proper speed
matching, strong agriculture applicability, high work efficiency,
and high fuel economy.
Comprehensive force/position control lifter for easy and convenient
operation; strong pressure device lifter with up to 1800kg of max
lifting force at the suspension point for the best rotary tillage
and ploughing effect.
