| Categories | Sand Dryer Machine |
|---|---|
| Brand Name: | Mind |
| Certification: | ISO, CE |
| Place of Origin: | Henan, China |
| MOQ: | 1 Unit |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 120 Set per Month |
| Delivery Time: | 30-60 Days |
| Packaging Details: | 1. Plastic Films + 2. Standard Wooden Case |
| Warranty: | 12 months |
| Voltage: | 220v/380v |
| Condition: | New |
| After-sales service provided: | Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support |
| Type: | Rotary Drying Equipment,Drum Drying Equipment |
| Dimension(l*w*h): | Variable |
| Installation: | Under Technician's Guidance,foundation drawing |
| Heating source: | wood,coal,gas,biomass etc |
| Usage: | Drying Machine |

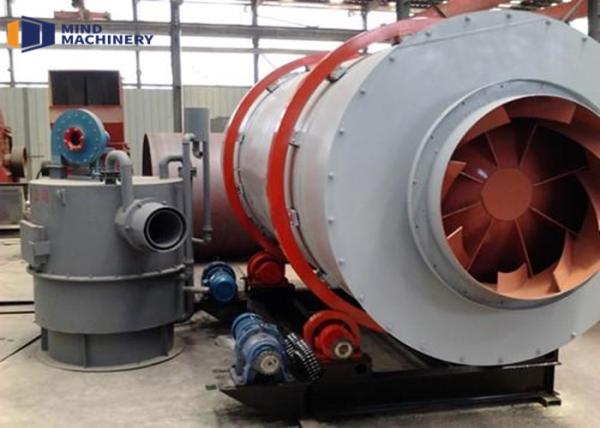

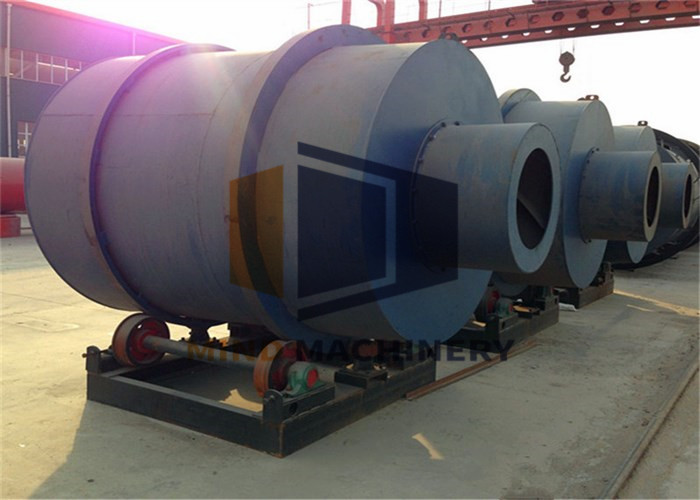

| Brief Introduction | Rotary dryer is widely used to dry materials in industries like cement, mine, construction, chemical, food, compound fertilizer, etc. Thermocouples are installed in feeding and discharging units to control temperature. Temperature change of the dryer also can be indicated by the thermometer, which is convenient for temperature control inside the dryer ( it is usually 250-350℃). |
| Applications | Powder & particle: Sands, limestone, stones, clay, mineral filter cake, coal, iron sulphate, filter cakes, fly ash, gypsum etc. |
| Damp and sticky material: Coal slime, sewage sludge, bentonite, Kaolin etc. | |
| Corrosive material: Distillers ‘grains, Fertilizer, animal dung, slag etc. | |
| Biomass material: Sawdust, wood chips etc. | |
| Features | 1. International standard with ISO, CE certificate. |
| 2. Simple system, safe and easy operation. | |
| 3. Flexibility in fuels used (NG, Oil, Coal ect.). | |
| 4. Year of experience with all types of dryers. | |
| 5. Capable of installation anywhere in world. | |
| 6. In house engineering for custom fit applications. | |
| 7. Proven design. |
| Model | Φ2.0×4.0m | Φ2.5×6.4m | Φ3.2×7m | Φ3.6×8m |
| Outter Cylinder (m) | 2.1 | 2.5 | 3.2 | 3.6 |
| Outter Length (m) | 4.5 | 6.4 | 7 | 8 |
| Cylinder Volume (m3) | 18.84 | 31.89 | 56.26 | 64.3 |
| Cylinder Speed (r/min) | 4-6.5 | 4-6.5 | 4-6.5 | 4-6.5 |
| Max. temperature inside | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
| Capacity (T/h) | Yellow sand 18-25 | Yellow sand 28-30 | Yellow sand 35-40 | Yellow sand 65-70 |
| Slag 13-18 | Slag 25-28 | Slag 40-45 | Slag 60-65 | |
| Weight (T) | 15 | 20 | 33 | 42 |
|
