Name: 4 LAN WIFI CATV RF Port FTTH ONU 300M 2T2R With 87MHz1000MHz RF Frequency
Brand: JiZhong
Price: 1 USD

Home > Radio & TV Broadcasting Equipment >

4 LAN WIFI CATV RF Port FTTH ONU 300M 2T2R With 87MHz~1000MHz RF Frequency

Categories	FTTH ONU
Brand Name:	JiZhong
Model Number:	JZOE-6404
Place of Origin:	China
MOQ:	1pcs
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	10000pcs Per month
Delivery Time:	5 work days

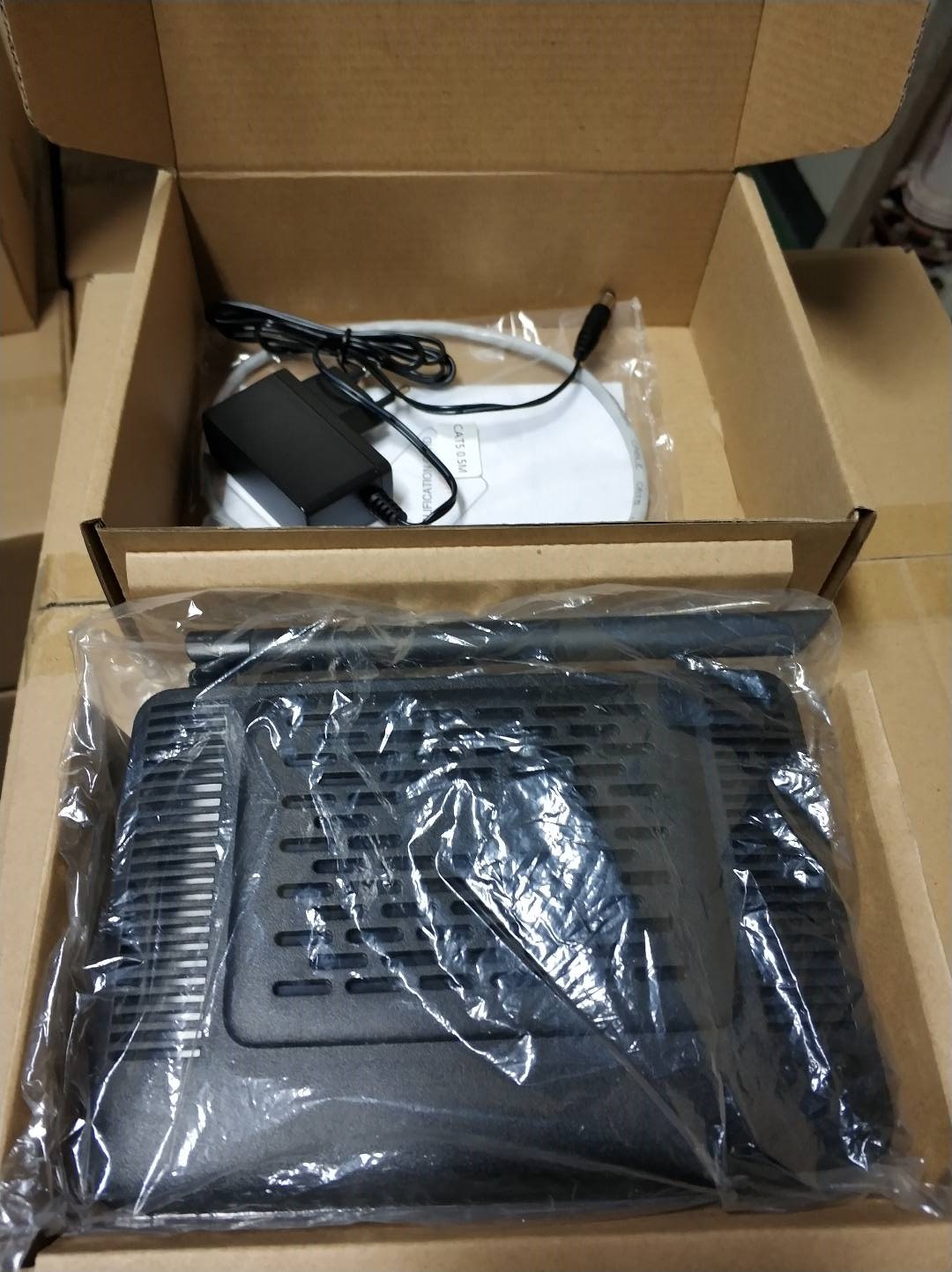

Packaging Details:	Standard export package
Wavelength:	1310/1550 +/- 10nm
Optical return loss:	>45dB
Input optical power:	-20dBm~+2dBm
RF frequency:	87MHz~1000MHz
RF output level:	70~80dBuV
Optical AGC range:	-15 to -5 dBm

Contact Now

Add to Cart

Company Info.

SHAANXI JIZHONG ELECTRONICS SCIEN-TECH CO.,LTD.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

4 LAN WIFI CATV RF Port FTTH ONU 300M 2T2R With 87MHz~1000MHz RF Frequency

4 LAN WIFI CATV RF Port FTTH ONU 300M 2T2R WIFI EPON GEPON FTTH ONU

Key Features:

* Built in 700MHz high performace ARM cortex A9 RISC process(32KB I/32KB D L1Cache,256KL2Cache),support MMU,bulit in 250MHz higher formance DSP processor.

GPON compliant with ITU-T G.984.1/2/3/4,1.244Gbit/s; upstream speed 2.488Gbit/s,upstream 1.244Gbit/s,EPON compliant with 802.3-2005 and CTC EPON technic requirements.EMS network management based on SNMP ,convenient for maintenance.

* Full speed non-blocking switching.Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

* Support auto polarity detection of Ethernet ports (AUTO MDIX).Integrated IEEE802.1p QoS with four level priority queues.

Technical Parameters:

Item		Parameter
Interface	PON Interface	1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM

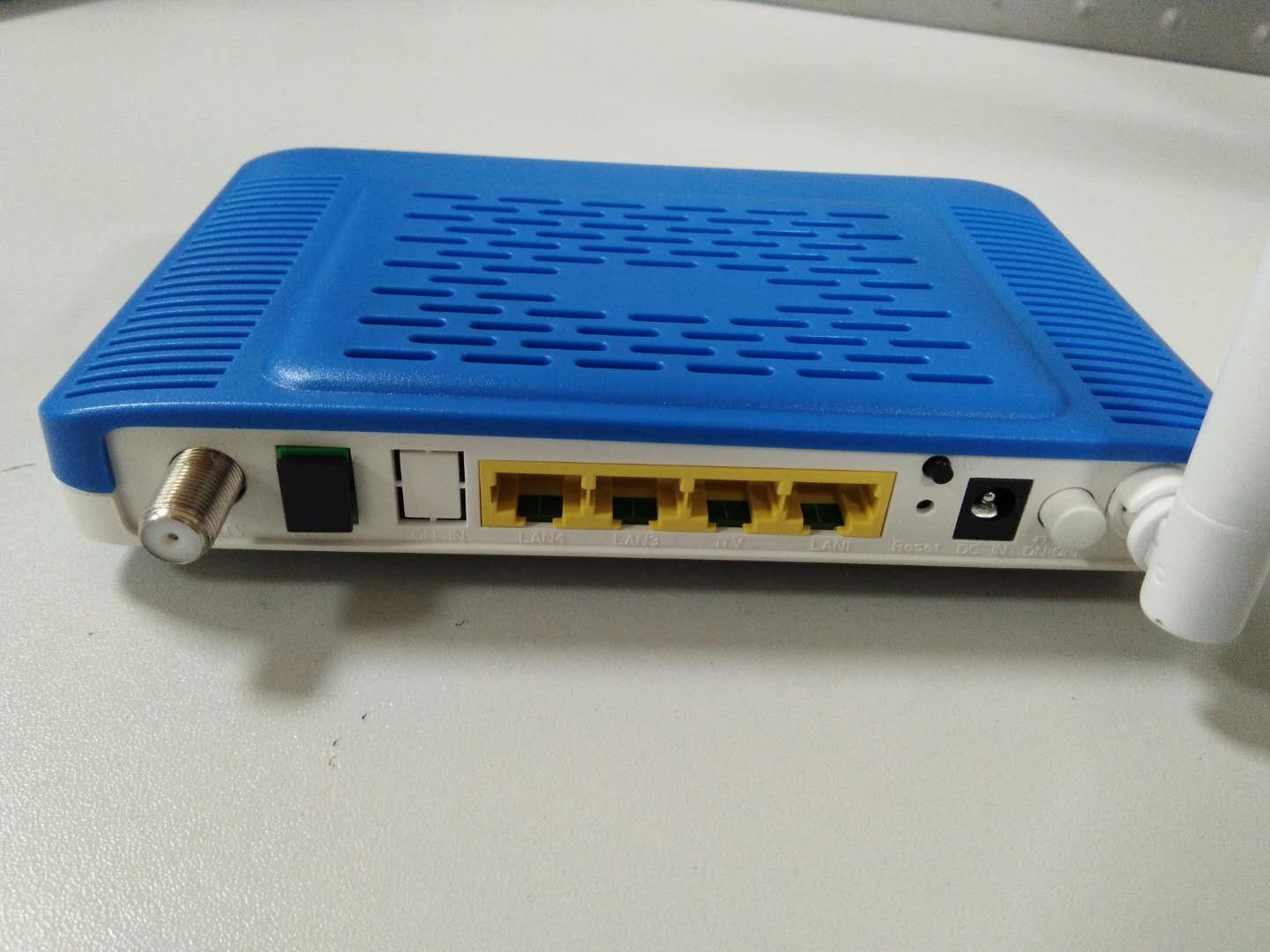

	User Interface	310/100Mauto-negotiation;110/100/1000 Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance 1 RF output Female F-Type Connector
	Power Interface	12V DC Power supply
Performance Parameters	PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125um single-mode fiber
	Data Transmission Parameter	PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms
	Business Capability	Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection
Network Management	Management Mode	Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management
	Management Function	Status monitor, Configuration management, Alarm management, Log management
Indicator	LED Indicator	PWR, SYS,PON, LAN1~LAN4, CATV,WIFI
Physical Features	Shell	Plastic casing
	Power	External 12V 1A AC/DC power supply adapter Power consumption: <5.5W
	Dimension and Weight	Item Dimension:175mm(L) x 120mm(W) x 32mm (H) Item weight:0.4kg
	Environmental Specifications	Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing)

WIFI Specification:

Performance parameters	Operating Mode	Router or bridge
	Throughput	IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 135Mbps
	Frequency	2.412 ~ 2.472 GHz
	Channel	13*Channel, configurable to meet the standard of USA, Canada, Japan and China
	Modulation	DSSS , CCK and OFDM
	Coding	BPSK, QPSK, 16QAM and 64QAM
	RF receive sensitivity	802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps
	RF output level	802.11b: 16.5 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps 802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps
	Encryption Mode	802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
