9Ah Lithium Thionyl Chloride Battery ER26500 Non Rechargeable LiSOCL2 C Size

Categories LiSOCl2 Battery
Model Number: ER26500
Certification: CE, ROHS, UN38.3
Place of Origin: Wuhan
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000PCS/30Days
Delivery Time: 20 Days
Packaging Details: Carton
Brand Name: FBATTERY
Product System: LiSOCl2 Battery
Nominal Capacity: 9000mAh(1mA-2.0v-25℃)
Nominal Voltage: 3.6V
Operating Temperature: ﹣60℃~+85℃
Weight: 58g
Max. Continuous discharge Current continuous discharge current: 200mA
Max. Pluse Current: 400mA
Applications: Water meter, smoke alarm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

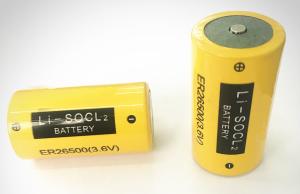

9Ah Lithium Thionyl Chloride Battery ER26500 Non Rechargeable LiSOCL2 C Size

ER26500 Non-rechargeable LiSOCL2 C Size Lithium Battery Lithium Thionyl Chloride Battery
Specification:
ModelER26500
TypeEnergy Type
SizeC
Nominal Capacity9000mAh(at 1mA, +25°C/2.0V cut off)
Nominal Voltage3.6V
OCV3.66V
Cut-off Voltage2.0V
Dimension26.2(D)*50.0(H)mm
Weight58g
Max. Continuous Current200mA
Max. Pulse Current400mA
Operating Temperature-60°C~+85°C
Storage TemperatureMax.30°C
Shelf Life≥10 years
Self Discharge Rate≤1%
CompatibilityCompatible with LS26500 , ER26500,LS26500C,TL-4920,TL-5920,TL-2200,SB-C01,SB-C02,SL-770,XL-140F,XL-145F

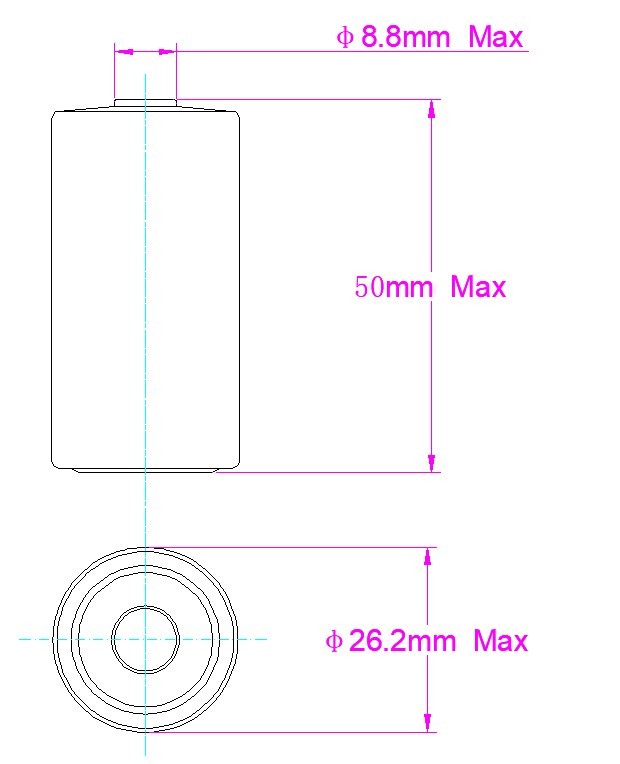

Dimension:



Discharge curves at(25℃)



Capacity-current Curves



Operating Voltage-Temperature Curve


Main Applications

>Radiocommunication and othermilitary applications
>TPMS
>RFID .

>Alarms and security systems

>Beacons and emergency locationtransmitters

>GPS equipment>Metering sys tems

>Led lighting applications>OthersStorage

>Cells should be stored in a clean&dry(less than 30% RH) area>Temp. should not exceed +30* CWarning

>Do not use if cell casing is mangled>Do not use different model of cellin series

>Soldering the tag should be finishedin few seconds

>Do not try to recharge
