Bright Soft Surface Alloy 750 Fe Cr Al Alloy Strip 7.4 Density For Resistors

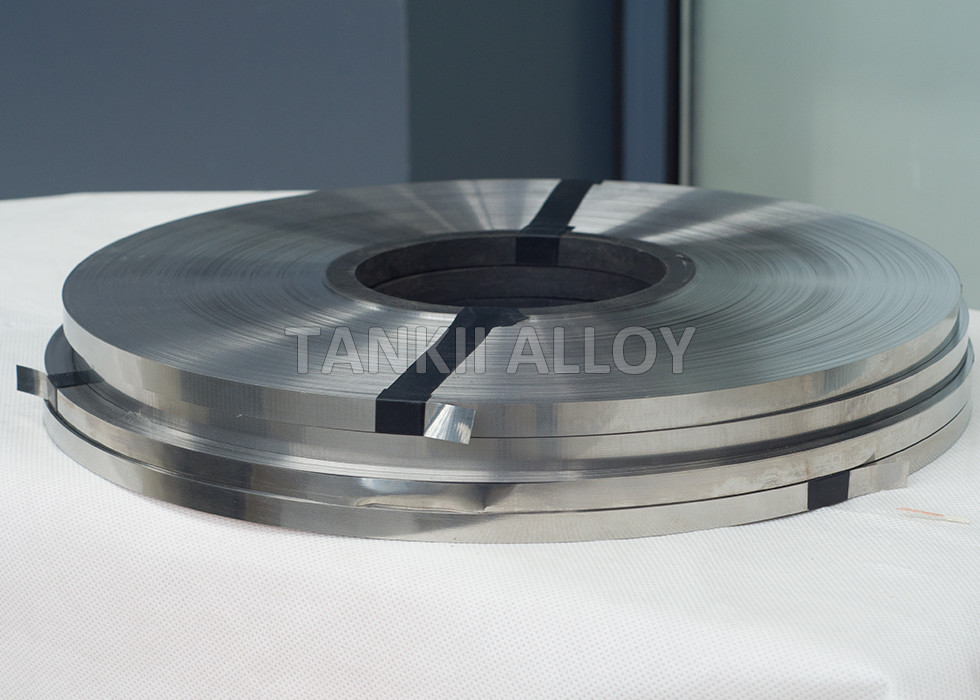

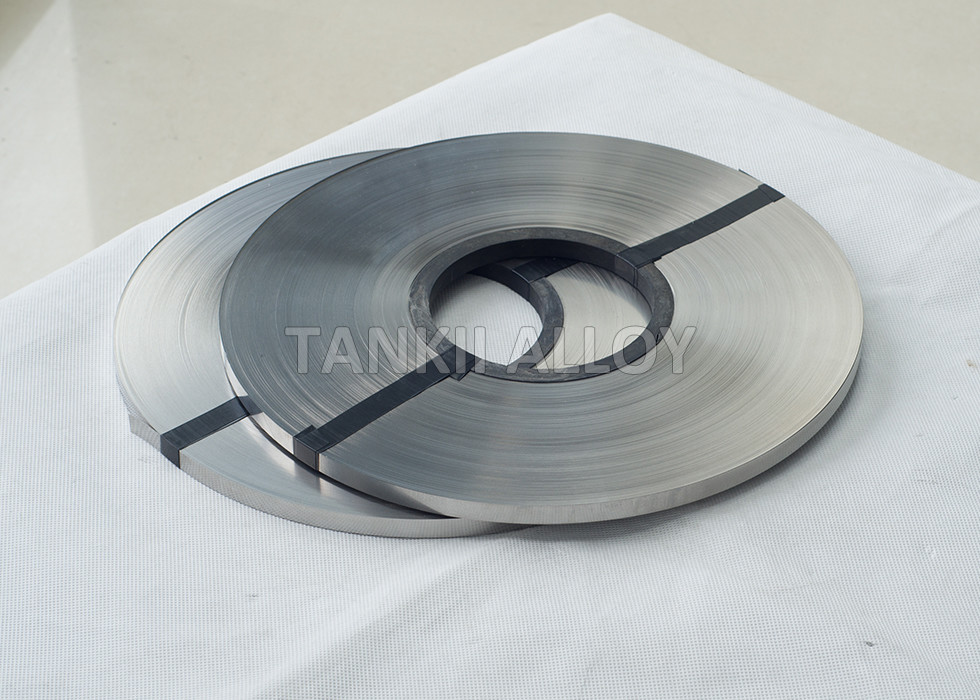

1Cr13Al4 FeCrAl alloy Bright Flat Strip/ Wide Strip for Resistors Use

Fecral Alloys and Nickel-chromium alloys have been chosen to be the resistive material for embedded resistor because nickel-chromium alloys possess high electrical resistivity that is widely used for thin film resistors. The sheet resistance of nickel-chrome alloy film containing 20% chromium can be as high as 2-3 kilo ohms and still maintain good stability. The temperature coefficient 1 of resistance (TCR) for bulk nickel-chrome alloy is about 110 ppm/°C. By alloying a small amount of silicon and aluminum with nickel-chromium, the temperature stability is further improved.

Application:

Resistors embedded in a printed wiring board will be an enabler for miniaturizing packages with higher reliability and improved electrical performance. Integrating the resistor functionality into the laminate substrate frees up the PWB surface area consumed by discrete components, enabling increased device functionality by the placement of more active components. Nickel-chromium alloys possess high electrical resistivity, which make them practical for use in a variety of applications. Nickel and chromium are alloyed with silicon and aluminum to improve temperature stability and lower the thermal coefficient of resistance. A thin film resistive layer based on nickel-chromium alloys has been deposited continuously onto rolls of copper foil to create a material for embedded resistor applications. The thin film resistive layer sandwiched between copper and laminate can be selectively etched to form discrete resistors. The chemicals for etching are common in PWB production processes. By controlling the thickness of the alloys, sheet resistance values from 25 to 250 ohm/sq. are obtained. This paper will compare two nickel-chromium materials in their etching methodologies, uniformity, power handling, thermal performance, adhesion and etching resolution.

Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

We’ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.

We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over forty years in this field. During forty years, hundreds of management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.

Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.

We are willing to establish strong and long-time partnership with our customers

• Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers
• Quality with end to end production control
• Technical support and Customer Service
