| Categories | Ultrasonic Flow Meter |
|---|---|
| Brand Name: | Kacise |
| Model Number: | KUFS2000 Series |
| Certification: | certificate of explosion-proof, CE |
| Place of Origin: | China (Mainland) |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal |
| Supply Ability: | 1000 Pieces per Week |
| Delivery Time: | 5-8 work days |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Interface: | RS485, support MODBUS |
| Accuracy: | ±1% |
| Power Supply: | DC8~36V or AC85~264V |
| Type of Liquid: | Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids |
| Temperature: | - 30~160℃ |
| Company Info. |
| Xi'an Kacise Optronics Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The KUFS2000 series ultrasonic flow meter can be installed on the wall or in instrument box, suitable for pipe sizes from DN25mm to DN6000mm.
| Accuracy | ±1% |
| Velocity Range | 0~±10m/s, Bi-directional measurement |
| Pipe Size | DN15~DN6000 |
| Temperature | - 30~160℃ |
| Type of Liquid | Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc |
| Pipe Material | Carbon steel, stainless steel 304, stainless steel 316. Flange standard GB/T9119-2000, GB/T81-94 |
| Signal Output | 1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output |
| Signal Input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Data Storage | SD card regularly store the pre-set results (optional) |
| Power Supply | DC8~36V or AC85~264V |

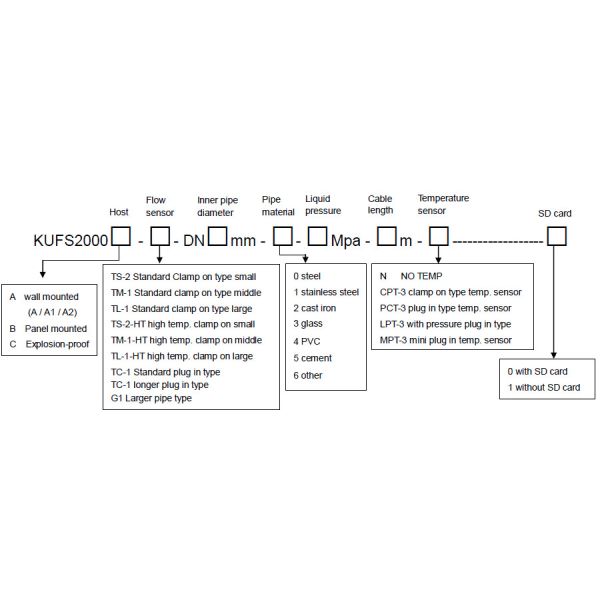

Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method the kind of the flow, please refer to the fix method choice chapter for details.
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
|
