UHF RFID RF Coaxial Cable Peak Power 1.8KW For Match TNC / N / SMA Connectors

Categories RF Coaxial Cable
MOQ: 2pcs
Price: Negotiable
Delivery Time: 3-5works
Brand Name: broadradio
Model Number: BRCAB-7
Place of Origin: China
Payment Terms: L/C, T/T, Western Union
Packaging Details: Standard Export Carton, Foam and Protective Film
Impedance: 50±2Ω(Ohms)
Capacitance: 96±2PF/M
name: RF Coaxial Cable
Peak Power: 1.8KW
Jacket spark (V,RMS): 3000V
Inner Conductor Dc resistance: ≯27.11ohms/1000m
OuterConductor Dc resistance: ≯25ohms/1000m
cutoff Frequency: 15G
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

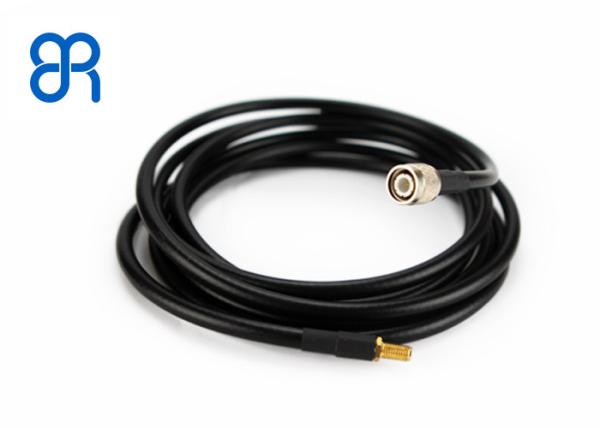

UHF RFID RF Coaxial Cable Peak Power 1.8KW For Match TNC / N / SMA Connectors

BRCAB-7 UHF RFID RF coaxial Cable Match TNC, N and SMA RF connectors

BRCAB-7 RF cable can be used to match RF connectors including TNC, N and SMA. It is recommended to use BRCAB-7 when the length is greater than 5 meters.


Cable Construction
NoMaterialDimensions
1, Inner ConductorBare CopperФ1.40±0.01mm
2, Dielectric)PEФ4.80±0.10mm
3, BraidCCA(16*8*0.12/25)mmФ5.35±0.10mm
4, JacketPolyvinyl chloride PVC blackФ7.20±0.15mm
Mechanical Characteristics and electrical performance parameter
1, Impedance50±2Ω(Ohms)
2, Capacitance96±2PF/M
3, Velocity66%
4, Peak Power1.8KW
5, Jacket spark (V,RMS)3000V
6, Inner Conductor Dc resistance≯27.11ohms/1000m
7, OuterConductor Dc resistance≯25ohms/1000m
8, (GHz)cutoff Frequency15G
9, OperatingTemperature ºC-20~70ºC
10, Min Bend Radius50mm

11, Pull strength of the insulation)

3~6lb/in

12, Sheath of the drawing force


3~8lb/in

13, The surface quality of sheath


The surface of the sheath should be smooth and bright. No visual defects such as bagging, bamboo knot, fish eye, no obvious reticulation, etc..
14 ,jacket-MarkingSYV-50.5 coaxial cable 001m
15 ,Reel Length200M/ axis
16 ,(>dB)(Screening attenuation)90
15 ,VSWR5~3000MHZ<1.2
Typical attenuation of sea level at 20℃
FrequeneyAttenuation(dB/100m)Remarks
1009.03
400

18.9

22

900

29.2


1500


39.6

1800


44.6
250053.2
300059.2

Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
