| Categories | EDFA Optical Amplifier |
|---|---|
| Model Number: | GFD1550-EBM(SC/2U) 16Ports With WDM |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1pc |
| Payment Terms: | T/T, L/C |
| Delivery Time: | 10-15 working days |
| Packaging Details: | Standard Carton |
| Height: | 2U |
| Port No.: | 16 Ports |
| Optic Power: | Customized |
| Optical Connector: | CATV In: SC/APC, OLT In: SC/UPC, Mixed Out: SC/APC |
| Power Supply: | 2 |
| NMS: | Web NMS |
| Company Info. |
| Cabsat industrial limited |
| View Contact Details |
| Product List |

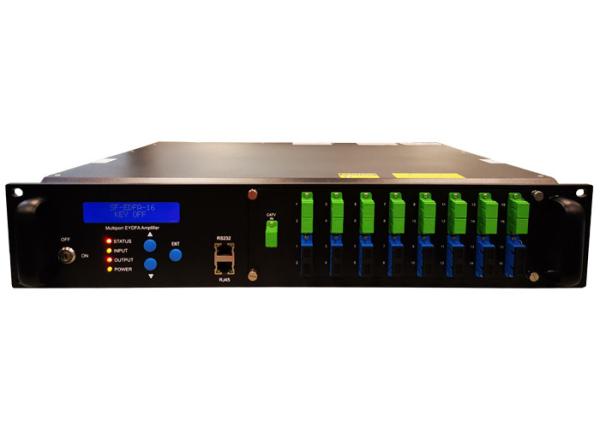

1550nm EDFA Optical Amplifier GFD1550-EBM(SC/2U) 16Ports With WDM xPon OLT Input/ Erbium Doped Fiber Amplifier
● 16Ports, each optical output power customized
● Embedded WDM for xPon OLT application (Optional)
● Single/Dual input optional when placing order
● Embedded optical switch for dual input, switching power can be
set by front panel or web SNMP.
● Double cooling system to protect the pump laser.
● RJ45 Port for Plug-in SNMP system can realize remote management
at any time.
● Standard RS232 Port.
● Adopting JDSU, Bookham or Fitel laser.
● LCD displays the parameters, functions and trouble alarm.
● Dual Switch Power Supply with hot-plug, 90-265VAC or -48VDC
optional
Specifications:
| Items | Parameter | |||||||||
| Output(dBm) | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 |
| Output(mW) | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 | 5000 | 6400 | 8000 | 10000 |
| Input(dBm) | -8～+10 | |||||||||
| Range of output adjustment (dBm) | Down 4 | |||||||||
| One-time downward attenuation(dBm) | Down 6 | |||||||||
| Wavelength (nm) | 1540～1565 | |||||||||
| Output stability(dB) | <±0.3 | |||||||||
| Optical Return Loss(dB) | ≥45 | |||||||||
| Fiber Connector | FC/APC,SC/APC,SC/IUPC,LC/APC,LC/UPC | |||||||||
| Noise Figure (dB) | <6.0(input 0dBm) | |||||||||
| Web port | RJ45(SNMP),RS232 | |||||||||
| Power Consumption (W) | ≤80 | |||||||||
| Voltage (V) | 220VAC(90～265),-48VDC | |||||||||
| Working Temp(℃) | -0～55 | |||||||||
| Size (mm) | 390(L)×486(W)×88(H) | |||||||||
| NW(Kg) | 8 | |||||||||
|
