| Categories | Optical Fiber Splitter |
|---|---|
| Brand Name: | DYS/OEM |
| Model Number: | plc fiber optical splitter 1x8 |
| Certification: | IS09001-2015.ROHS |
| Place of Origin: | shenzhen |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T or LC, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 500000PCS / Month |
| Delivery Time: | 3-5 work days |
| Packaging Details: | 1pcs/box |
| Connector Type: | SC/APC |
| Use: | FTTH |
| Application: | FTTH FTTB FTTX Network |
| Operating Wavelength(nm): | 1260~1650 |
| Operating temperature: | -40℃ to 85℃ |
| Fiber Type: | G657A1 or as customers' order |
| Color: | Customized Service |
| Return Loss (dB): | 55/50 |
| Single-Mode Fiber: | G652 G657 |
| Fiber diameter: | 0.9mm |

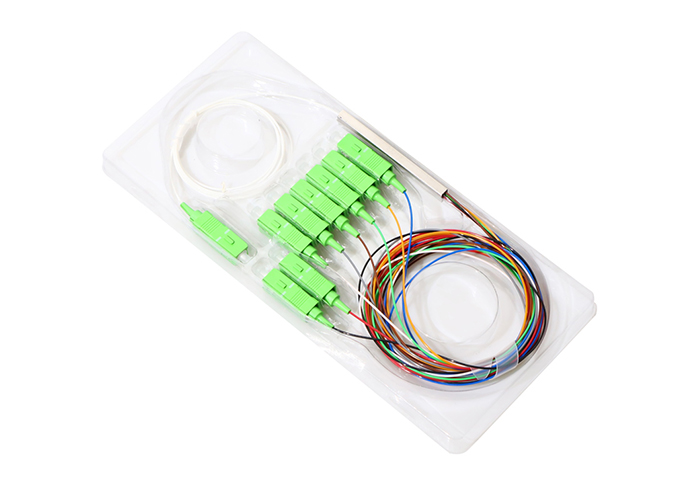

SC APC Connectors Optical Fiber Splitter 1x8 G657 Single Mode
Description
PLC optical splitter made by the semiconductor process. Optical
wave guide needle is located at the top of the chip, in the chip to
achieve shunt, PLC optical splitter can be divided into cassette,
chip, rack, etc type.
| Parameters | 1×8 |
| Operating Wavelength (nm) | 1260~1650 |
| Fiber Type | SMF-28e or customer specified |
| Insertion Loss (dB)(S/P Grade) | 10.5/10.2 |
| Loss Uniformity (dB) | 0.8 |
| Return Loss (dB) (S/P Grade) | 50/55 |
| Polarization Dependent Loss(dB) | 0.3 |
| Directivity (dB) | 55 |
| Wavelength Dependent Loss(dB) | 0.3 |
| Temperature Stability(-40~85 ℃)(dB) | 0.5 |
| Operating Temperature (℃) | -40~85 |
| Storage Temperature (℃) | -40~85 |
| Packaging Dimension (mm) (L×W×H) | 40×4×4 |
|
