50M/Min Foil Stamping Varnishing Digital Flatbed Inkjet Enhancer

Categories Label Printing Machine
Brand Name: EcooGraphix
Model Number: EcooSpark
Certification: ISO9000, CE
Place of Origin: China
MOQ: 1 Set
Payment Terms: T/T,L/C,Western Union
Supply Ability: 500 Sets/year
Delivery Time: 30 Days
Packaging Details: Standard export packing
Price: Negotiable
Classification: Digital label enhanceing machine
Printing Technology: UV piezo dod-inkjet
Resolution: 360*360 dpi, up to 1440*360 dpi
Printing Image Width: 288mm (extendable to 330 mm)
Polymer: WB-DS-Clear polymer
Polymer Layer Thickness: From 10 up to 250 microns
Ink Curing: Inter UV-LED pre-curing/ Full curing by UV-LED
Unwinder Diameter/ Rewinder Diameter: Max. 700mm, core 76mm
Variable Image System: PDF, optimized PDF, optional barcode system
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

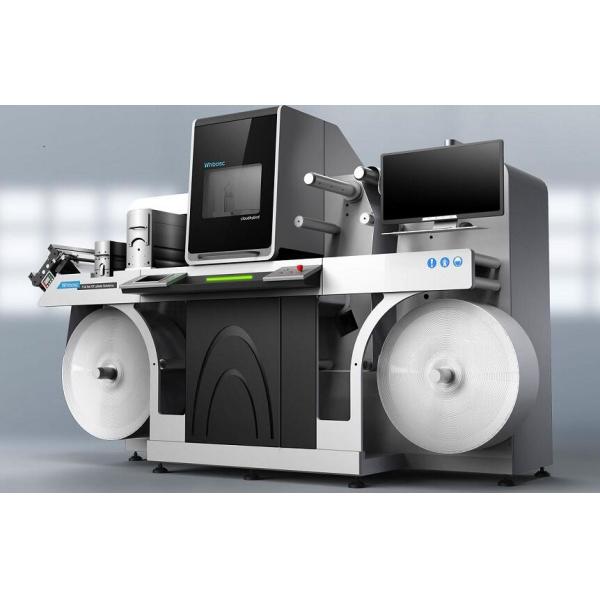

50M/Min Foil Stamping Varnishing Digital Flatbed Inkjet Enhancer


Digital Automatic Foil Stamping & Varnishing Enhancing Machine







1. Specifictions



EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine


Model EcooSpark

Printing Technology UV piezo dod-inkjet


Resolution 360*360 dpi, up to 1440*360 dpi


Printing Speed 6m/min - 50m/min(depend on polymer layer thickness)


Variable Image System PDF, optimized PDF, optional barcode system


Supported image Standards PDF, PDF/VT, TIFF, JPEG, BMP & other data base files


Substrates Offset, digital, plastics, laminated and coated substrates


Printing image Width 288mm(extendable to 330 mm)


Polymer WB-DS-Clear polymer


Polymer Layer Thickness From 10 up to 250 microns


Ink Curing Inter UV-LED pre-curing/ Full curing by UV-LED


Unwinder Diameter Max. 700mm, core 76mm


Rewinder Diameter Max. 700mm, core 76mm


Substrates Thickness 30-400 micro


Substrates Width Max. 330mm


Press With Foil Station Machine dimensions(LxHxW): 3500mm x 1900mm x 1800mm


Operating Environment Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity


Electrical Requirements
Voltage: 3x380, ±5% 3 phases +G+N; Frequency: 50/60 Hz; Current: Avg. 58.6 Amps 23KW


Weight 2800kg

EcooSpark Digital Foil Stamping And Varnishing Printing Machine
ModelEcooSpark
Printing TechnologyUV piezo dod-inkjet
Resolution360*360 dpi, up to 1440*360 dpi
Printing Speed6m/min - 50m/min(depend on polymer layer thickness)
Variable Image SystemPDF, optimized PDF, optional barcode system
Supported Image StandardsPDF, PDF/VT, TIFF, JPEG, BMP & other data base files
SubstratesOffset, digital, plastics, laminated and coated substrates
Printing Image Width288mm(extendable to 330 mm)
PolymerWB-DS-Clear polymer
Polymer Layer ThicknessFrom 10 up to 250 microns
Ink CuringInter UV-LED pre-curing/ Full curing by UV-LED
Unwinder DiameterMax. 700mm, core 76mm
Rewinder DiameterMax. 700mm, core 76mm
Substrates Thickness30-400 micro
Substrates WidthMax. 330mm
Press With Foil StationMachine dimensions(LxHxW): 3500mm x 1900mm x 1800mm
Operating EnvironmentTemperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical RequirementsVoltage: 3x380, ±5% 3 phases +G+N
Frequency: 50/60 Hz
Current: Avg.
58.6 Amps 23KW
Weight2800kg






2. Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.











3. Certificates










4. FAQ




Q1: What are your main products ?


A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.




Q2: Where is your factory ?


A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!




Q3: How long is the lead time ?


A: The lead time is normally 30 days. We can accelerate for emergency cases.




Q4: Is there any certification for your machine ?

A: Yes, all our machines have been certified by SGS and CE.




Q5: How long is the warranty period ?

A: EcooGraphix guarantees 1 year of warranty for spare parts(except print heads).




Q6: What is your normal payment term ?

A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.




Q7: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.


These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
