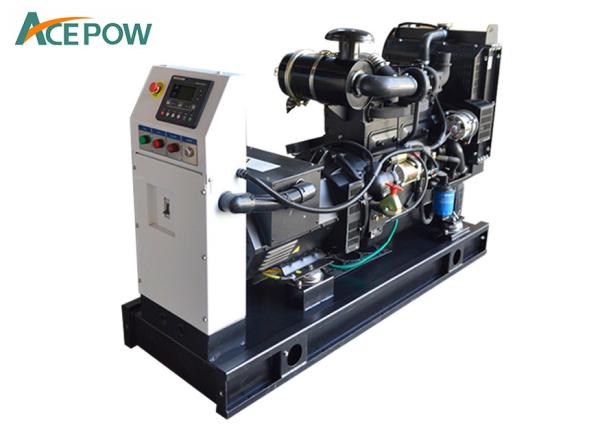

15KVA TO 100KVA Ship Diesel Generator Deutz Engine Marine Diesel
Engine Generator Standby Power
Features :
- Brand new marine generator sets with CCS certificate.
- Engine with CCS certificate, sea water pump, heat exchanger,
dual-high pressure fuel pipe, fuel leakage alarm and flexible pipe.
- Brand new AC marine atlernator with CCS certificate, Ratings:
400v, 3Ph, 50Hz, 1500Rpm, 0.8PF, IP23, H insulation class.
- Set mounted marine controller with CCS.
- The above generators does not include fuel tank and battery.
- Paper materials including English version instruction, manual and
maintenance, cable wiring scheme, testing report, CCS, etc.
1) Brand-new engine,w/start motor.
2) Brushless alternator,single bearing,flange connection,IP23,H
insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery
charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40ºC ambient temperature and double-deck
cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base
frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
Engine | Frequency | Voltage | Speed |
Brand | Model | Prime Power |
DEUTZ | WP2.1D18E2 | 17.5 | 50/60HZ | 220/380,230/400V | 1500/1800RPM |
DEUTZ | WP2.3D25E200 | 23 | 50/60HZ | 220/380,230/400V | 1500/1800RPM |
DEUTZ | WP2.3D33E200 | 30 | 50/60HZ | 220/380,230/400V | 1500/1800RPM |
DEUTZ | WP2.3D40E200 | 36 | 50/60HZ | 220/380,230/400V | 1500/1800RPM |
DEUTZ | WP2.3D48E200 | 44 | 50/60HZ | 220/380,230/400V | 1500/1800RPM |
DEUTZ | WP4.1D66E200 | 60 | 50/60HZ | 220/380,230/400V | 1500/1800RPM |
DEUTZ | WP4.1D80E200 | 72 | 50/60HZ | 220/380,230/400V | 1500/1800RPM |
DEUTZ | WP4.1D100E210 | 90 | 50/60HZ | 220/380,230/400V | 1500/1800RPM |
