| Categories | SMA RF Connector |
|---|---|
| Brand Name: | ELT (Elite) |
| Model Number: | SMA-KYD7 |
| Certification: | CE ROHS ISO-9001-2015 |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000000 Pieces Per Month |
| Delivery Time: | Within in 3 weeks |
| Packaging Details: | Standard Export Carton |
| Product name: | SMA RF Coaxial Connector |
| Gender: | Female/Socket |
| Body Type: | Straight |
| Material: | Brass |
| Mount Method: | Bulkhead Mount |
| Plating: | Gold Plating |
| Imdepence: | 50Ohm |
| Certificate: | ISO-9001-2015,CE Rohs |
| Life span: | 500Cycles |
| Company Info. |
| Xi'an Elite Electronic Industry Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
50Ohm PCB Edge Mount SMA Female Bulkhead Connector
1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required.
2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz.
4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
Wide variety of orientations and PCB terminations
Frequency range up to 18GHz Sub-miniature coaxial connectors
Using a threaded interface
Available in passivation or gold plating
Brass and stainless steel material options
Available in straight or right angle versions
With bulkhead, 2 holes panel, 4 holes panel or mountless options.
Broad range with male, female and adapters variants.
RoHS compliant
| Electronic and Material Characterials | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |
| Model No. | Description | Note |

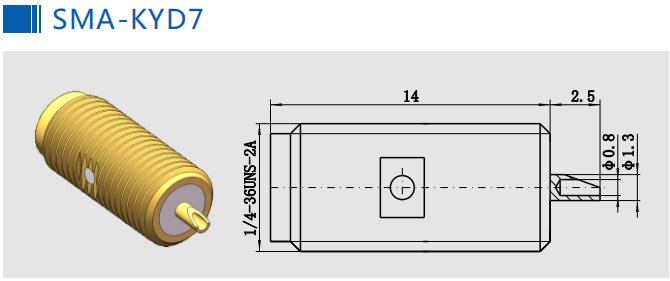

| SMA-KYD7 | SMA Female Bulkhead Connector |
Applications
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us
with your details.
|
