Soda Ash Glass industry 50Hz Material Batching Equipment

Glass Batch Plant, Material Mixing, Material Batching Equipment

1. Brief introduction

The materials used for glass making are called glass raw materials. Based on the different quantities and functions, the materials are divided into main raw materials and auxiliary ones.

In order to improve the production efficiency, if the granularity composition of raw materials can not meet the physical-chemical properties and processing property of glass product, the raw materials will be required to be pretreated before batching.

2. Main type of raw materials

3. Types of auxiliary materials

4. Arrangmment type of batch plant

• In-Line type

Silos arrange on one line.
The materials convey to mixer by belt conveyor after discharge from the scale hopper.
The mixing room is separatly arranged.
Material loading system is arranged on one line.

• Tower-type

Mixer, scales and silos are vertically arranged.
The scales are connected with the mixer directly.
The material loading system for big capacities of batch need to load the materials from various directions.

5. Material feeding device

• Hopper
• Pneumatic hammer
• Sensors
• Material discharging device
• Instrument and control system

6. Main equipment of batch plant

• Scrubbing machine

Simple structure

High crushing efficiency, energy saving and environment protecting

• Hindered settler

Hindered settler is used for classifying silica sand or other mining coarse and fine particle, it adopts to classify the mineral with different gravity and replace the fine screen for force control.

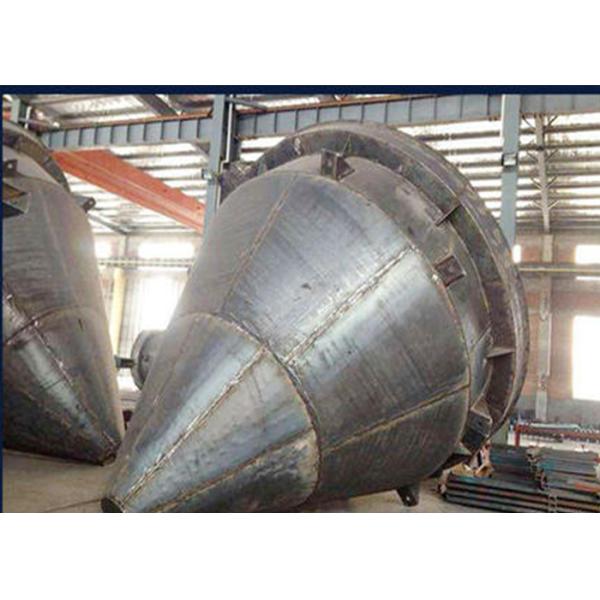

• Desliming hopper

Desiliming hopper also calls circular cone, it is a simple classification, desliming and thickening device.

• Dust collector

Bag-type dust collector is a kind of high-efficiency special purification equipment, which is suitable for the top of power plant ash warehouse, powder warehouse, etc.

• Mixer

Mixer is a kind of mechanical equipment that could mix two or more types of materials homogeneous together.

• Bucket elevator

The bucket elevator consists of upper section, lower section, intermediate section, deriving section and operation section.

JEFFER ENGINEERING, a China professional company that designs and provides complete glass melting technology as a global solution partner for the glass industry. With overseas subsidiaries in Russia, Egypt and Indonesia, JEFFER has met its demand for rapid local activity of the glass industry's requirement.

With its more than 40 years of experience in glass melting, JEFFER has combined conventional furnace technology with new furnace concepts in modern days, it has a wide range of experience in the design, manufacture and supply of different furnace types for production of Container Glass, Tableware Glass, Flat Glass, Figure Glass, Tube Glass, Opal Glass, Fiber Glass, Sodium Silicate, Frit etc.

We put the interests of our customers first and maintain close ties through high quality work and good after sale cooperation. Many long-term relationships with our customers span several decades.

The range of products and service does not only include melting tank, JEFFER also fabricates the main utility equipment such as providing combustion system and automatic instrument. Furthermore, with our staff, JEFFER can meet the requirements of the glass industry, such as Feasibility Studies, Plant Design, Material and Equipment Supply, Commissioning and Start-Up, Construction Supervision, Contract Management and Implementation, Plant Renovation, Global Consulting Services for Plant Operation.

With 24/7 hotline service, our service staff can respond quickly to help with any problems that may arise during the glass production process.

With customer's trust and praise, we are worthy of our reputation.
